Removal

2AR-FE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: REMOVAL

1. DRAIN ENGINE COOLANT Service and Repair

2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

(a) Disconnect the sensor connector.

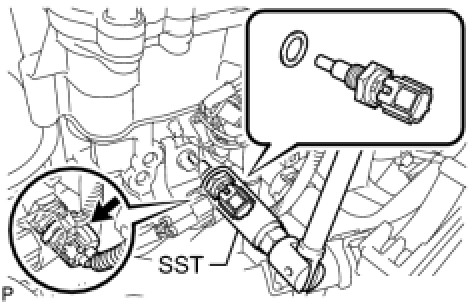

(b) Using SST, remove the sensor and gasket.

SST : 09817-33190
