Installation

2AR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION

1. INSTALL SPARK PLUG

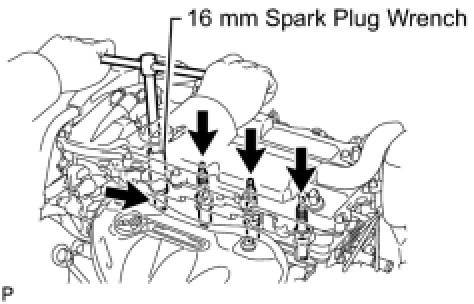

(a) Using a 16 mm spark plug wrench, install the 4 spark plugs.





Torque : 25 Nm (254 kgf-cm, 18 ft-lbf)

2. INSTALL IGNITION COIL ASSEMBLY

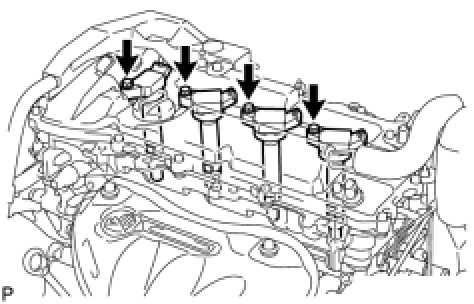

(a) Install the 4 ignition coils with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(b) Connect the 4 ignition coil connectors.

3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
