Alignment

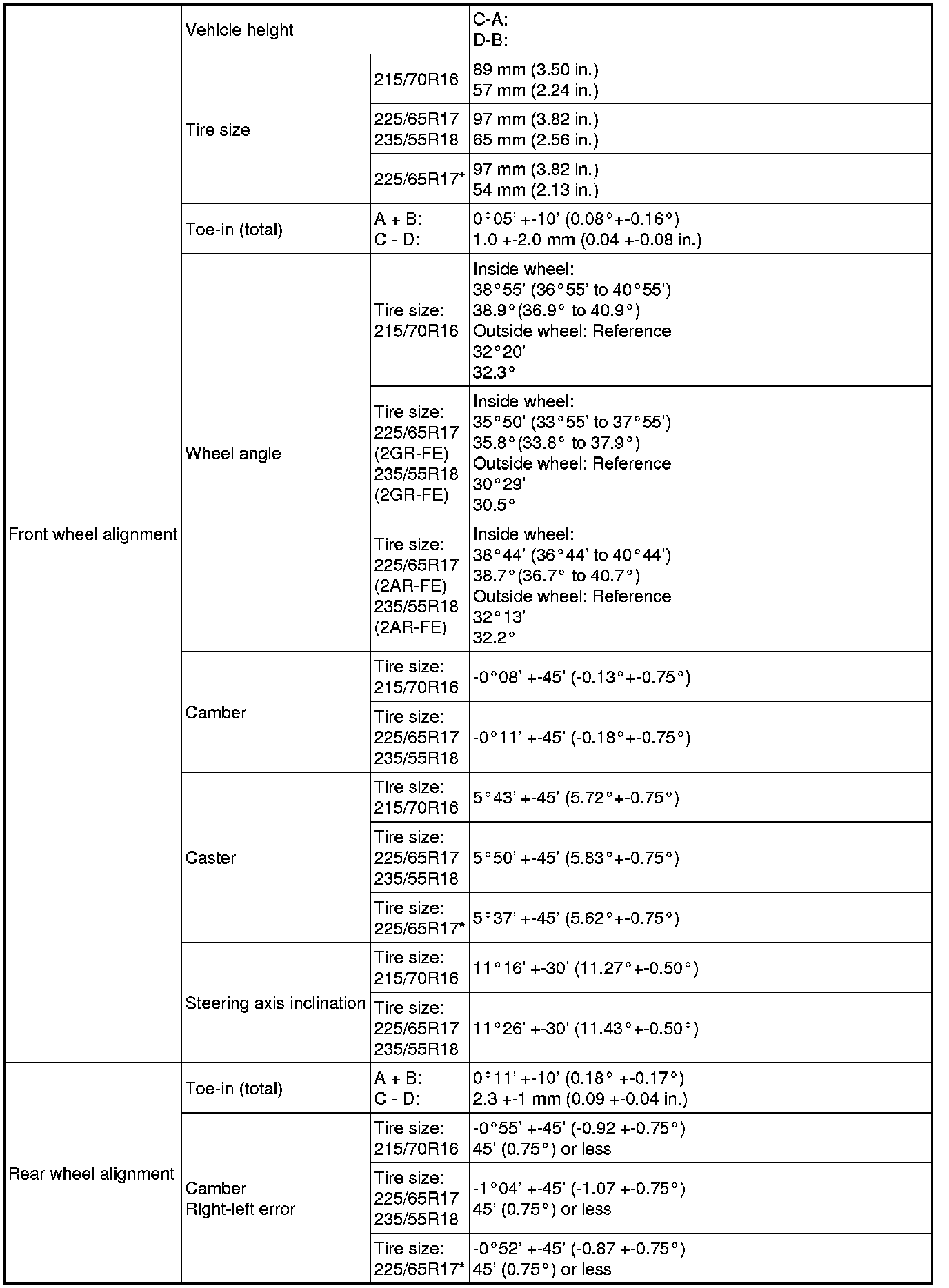

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA









*: w/ 3rd seat.

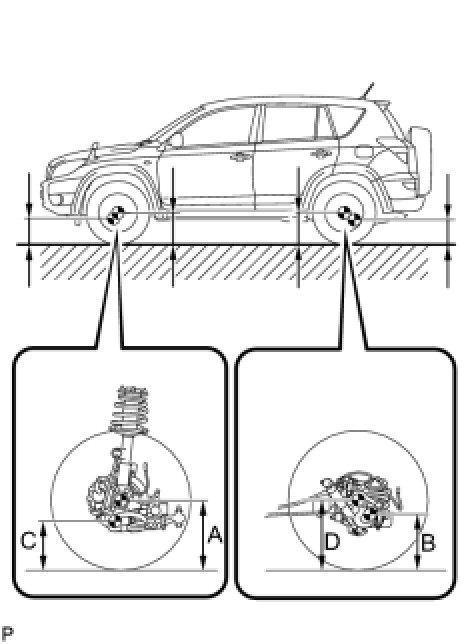

VEHICLE HEIGHT






Standard vehicle height (unloaded vehicle)
