Service Data





SERVICE SPECIFICATIONS: U241E AUTOMATIC TRANSAXLE: SERVICE DATA

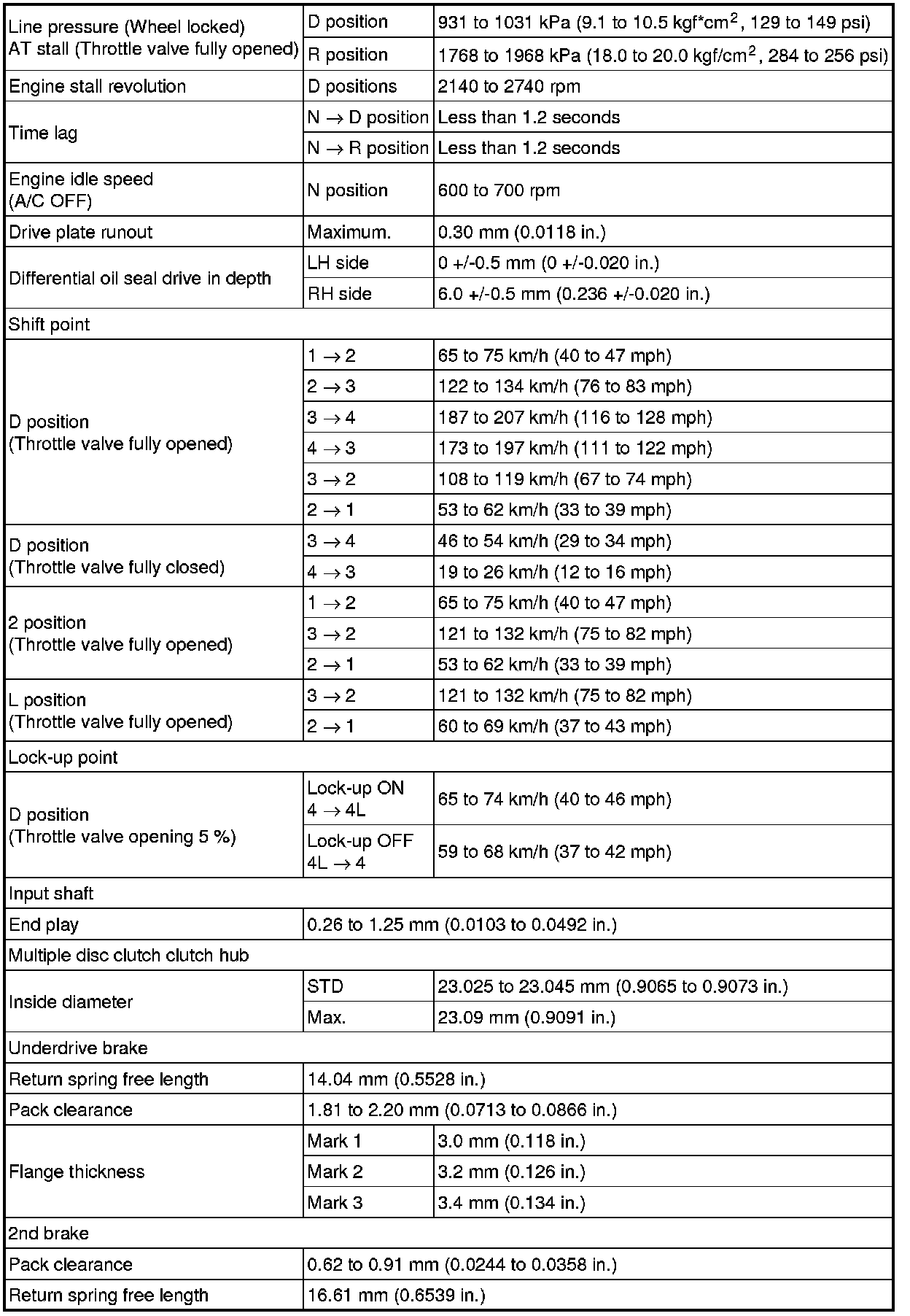

Automatic Transaxle Assembly

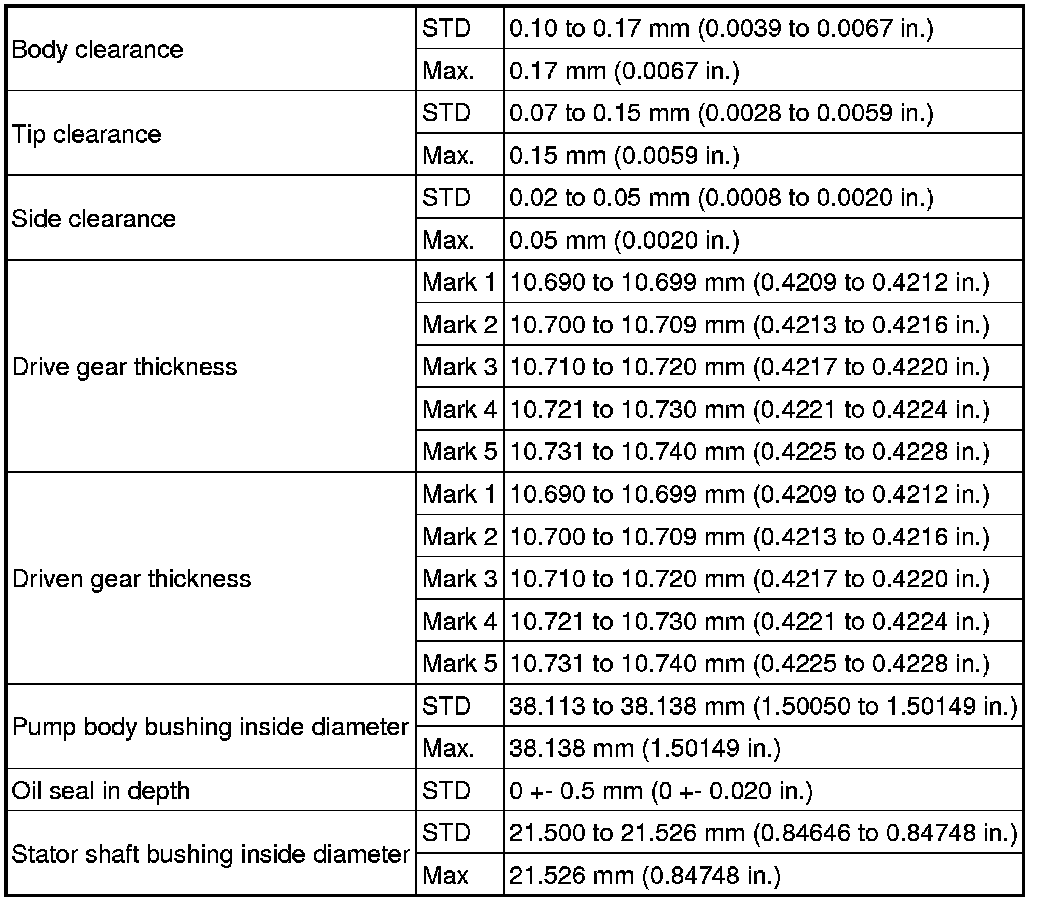

Oil Pump






Second Brake Piston






Forward Clutch






Direct Clutch






Underdrive Planetary Gear






Underdrive Clutch

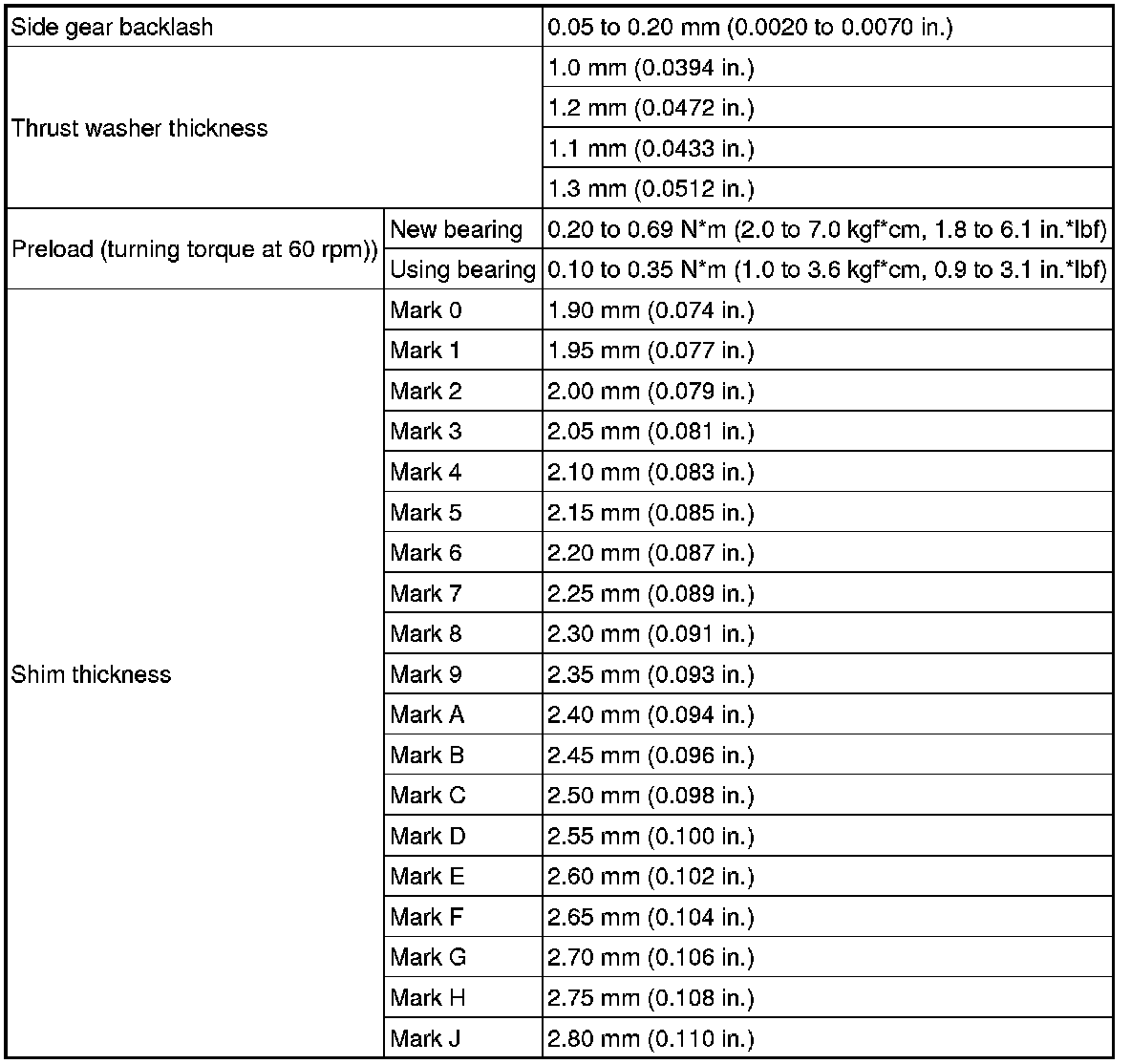

Differential
