Service Data

SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

ENGINE

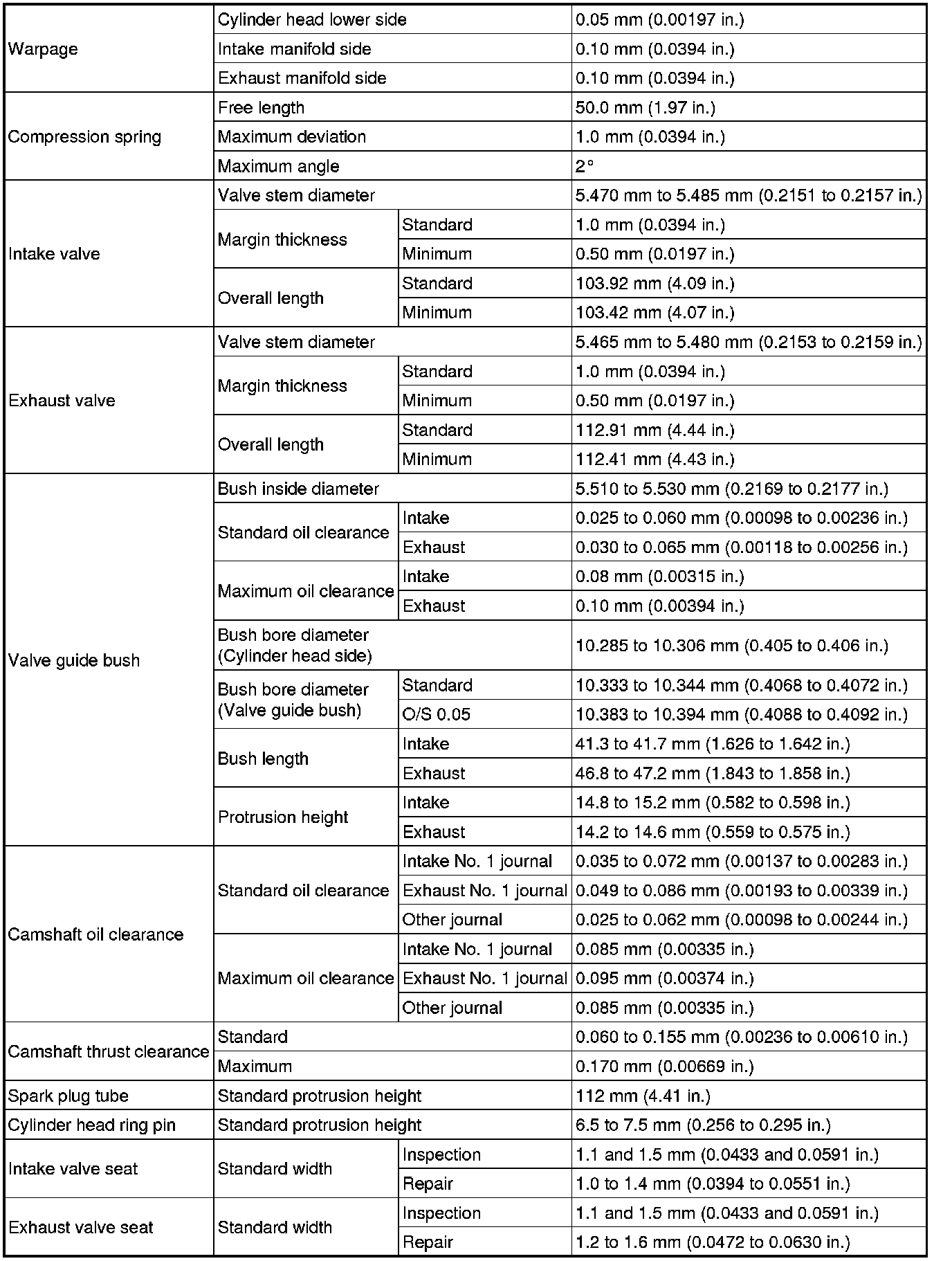

CYLINDER HEAD

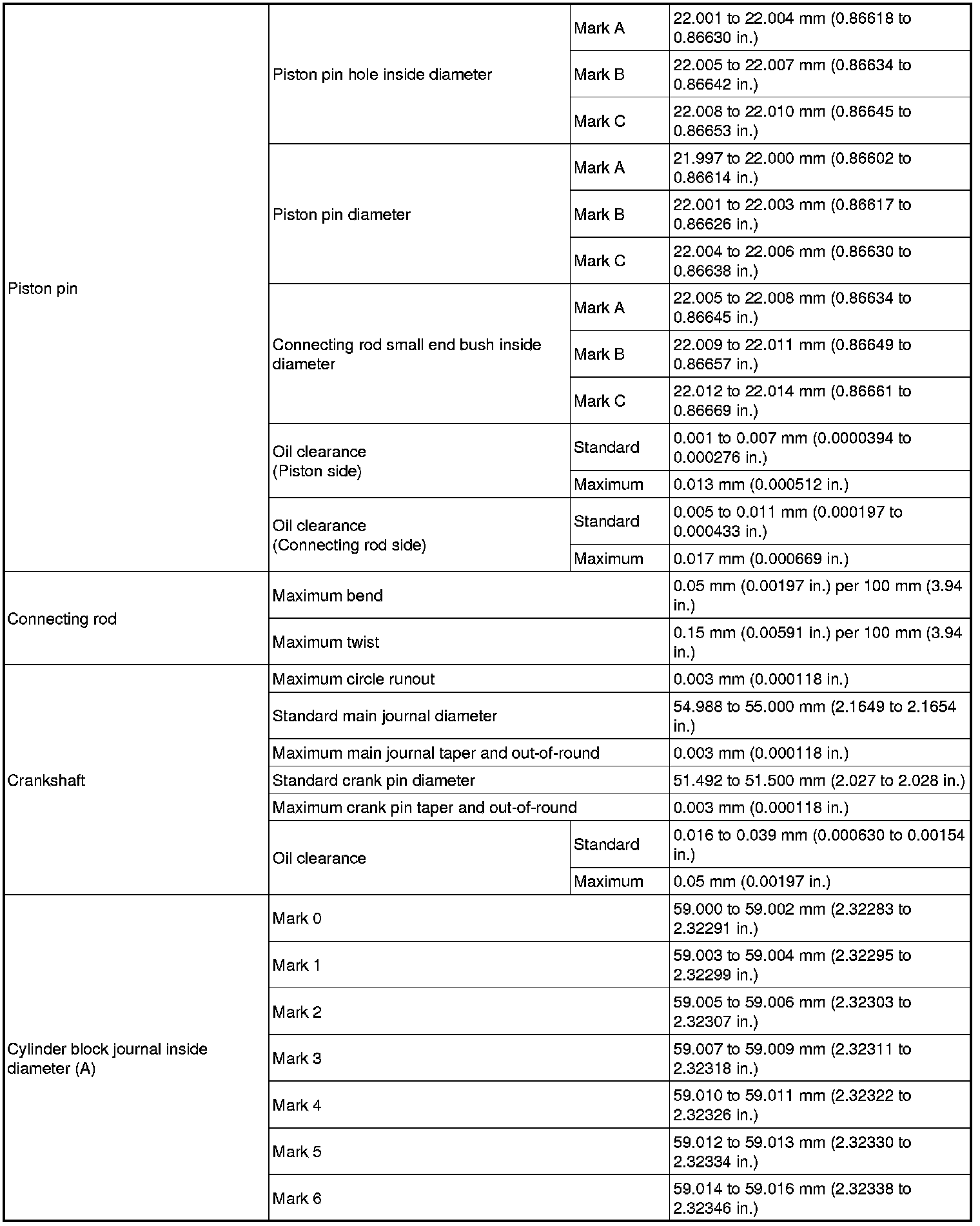

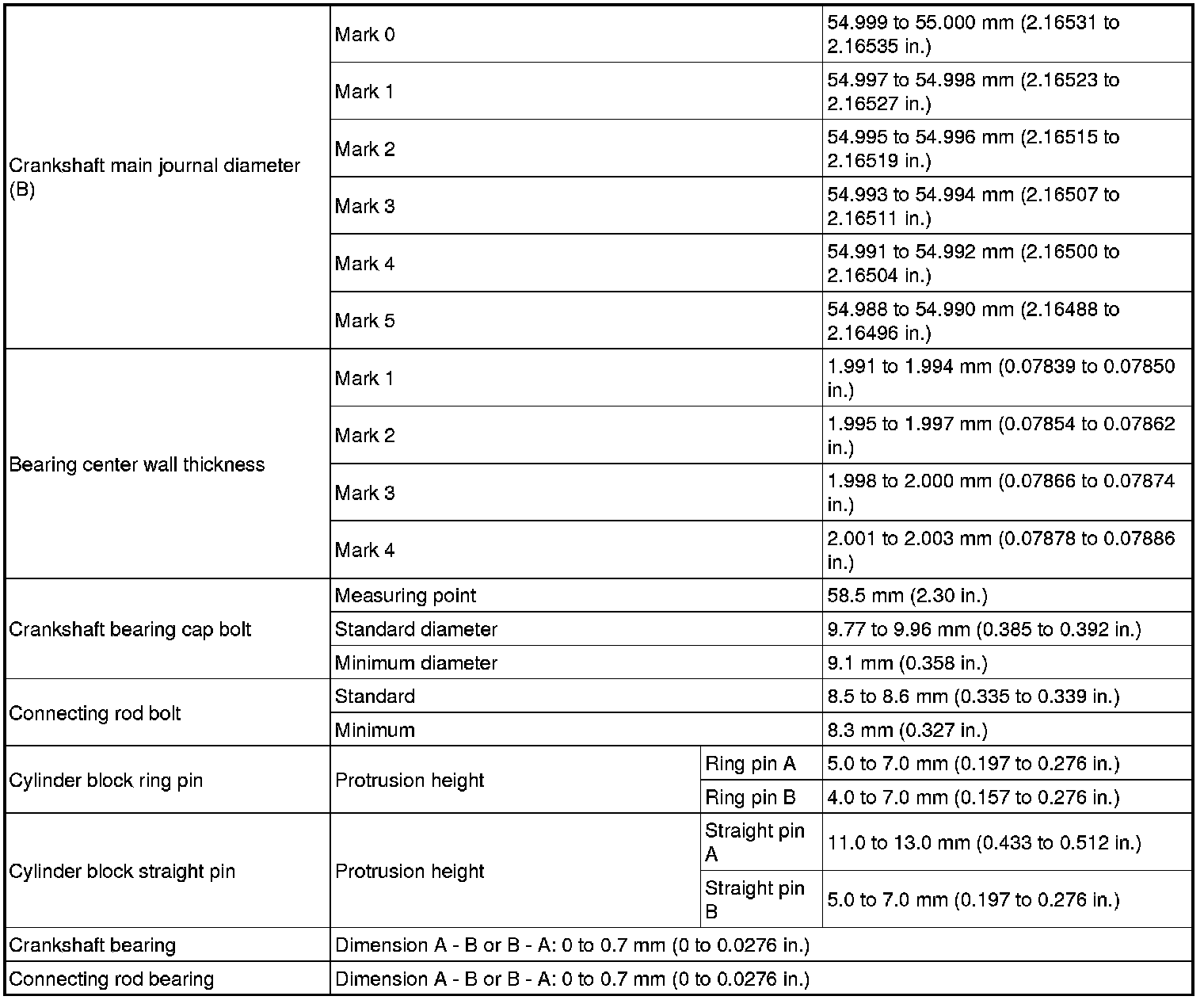

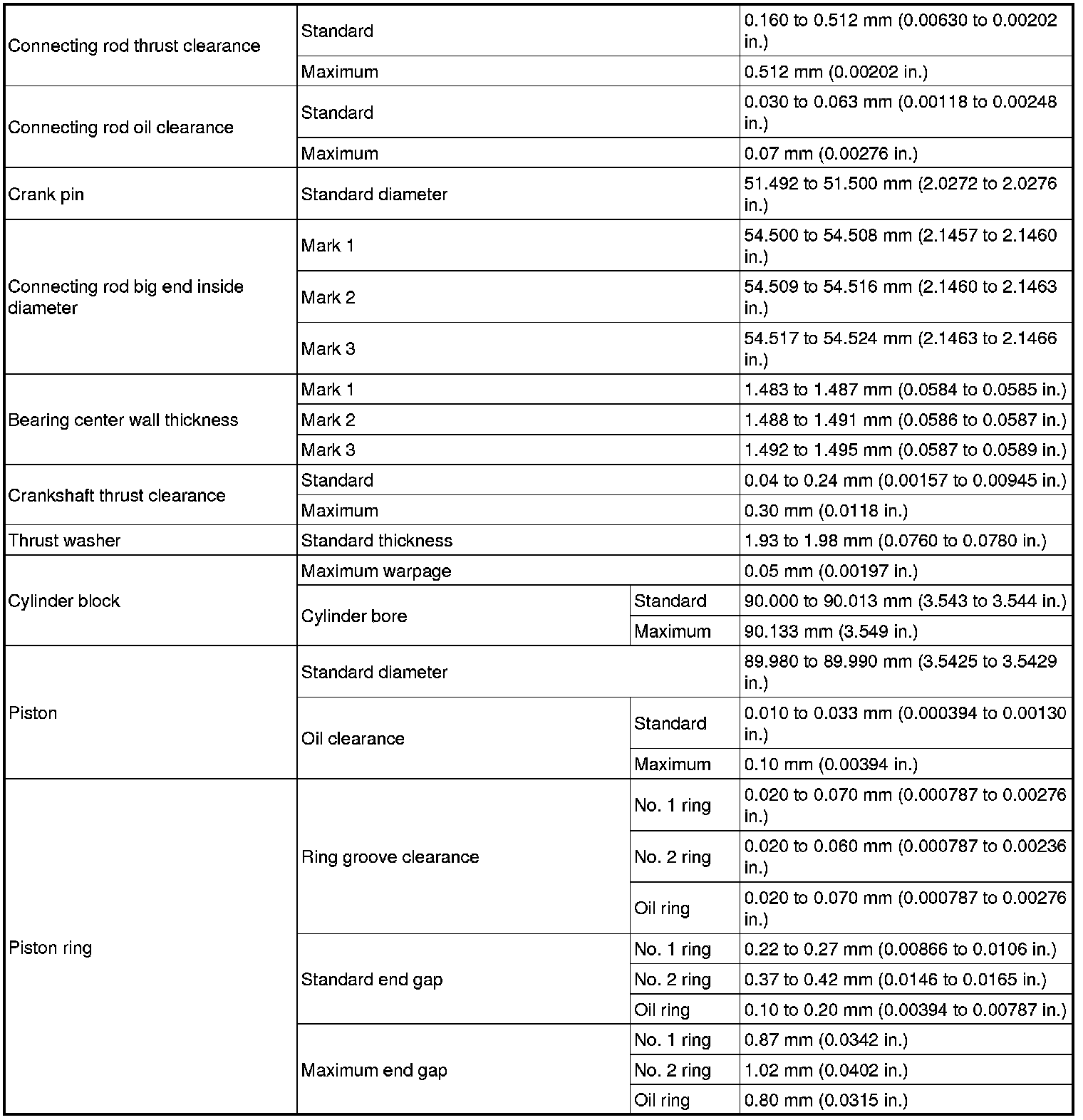

CYLINDER BLOCK

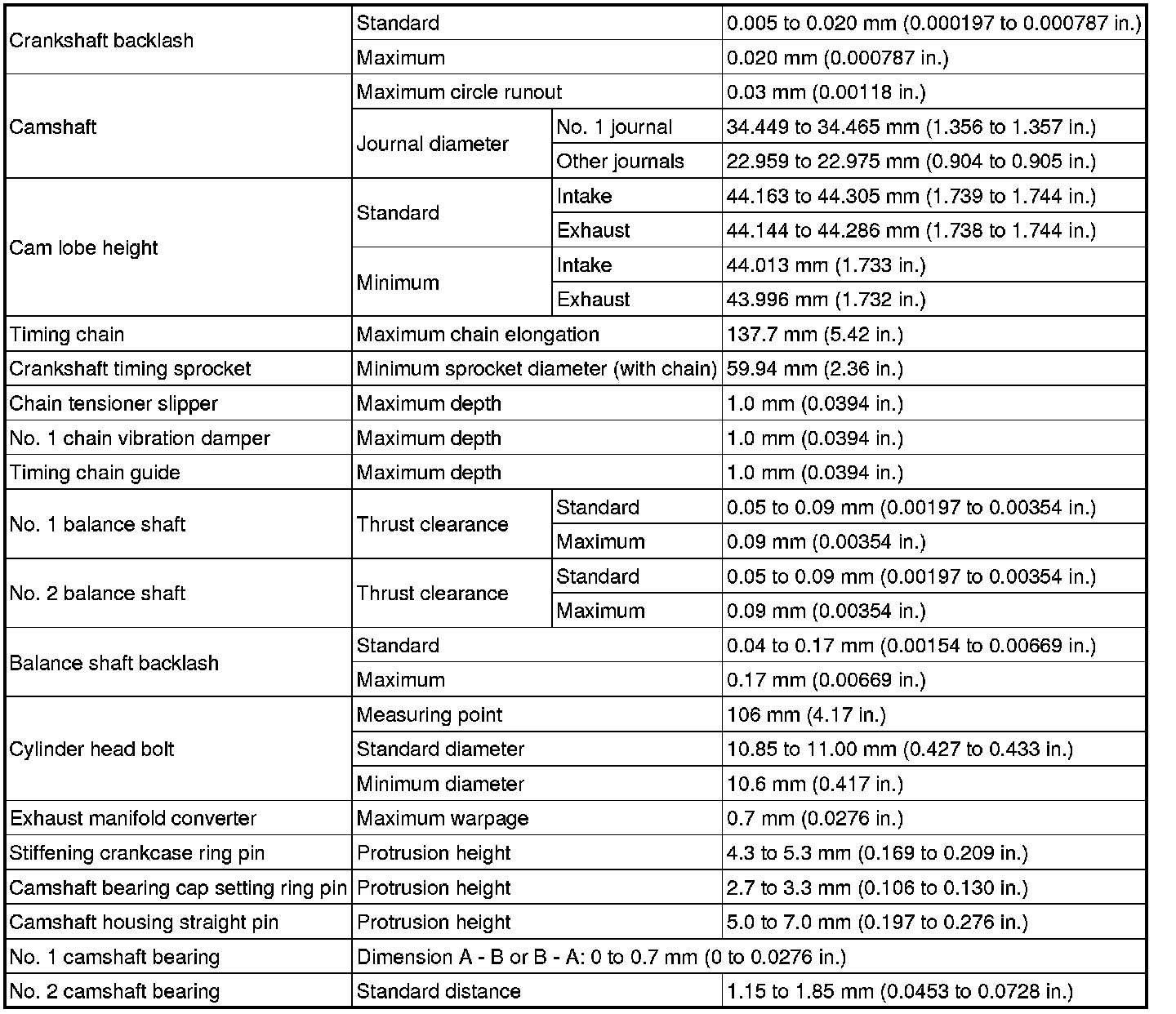

ENGINE UNIT
