Ignition (2GR-FE): Notes

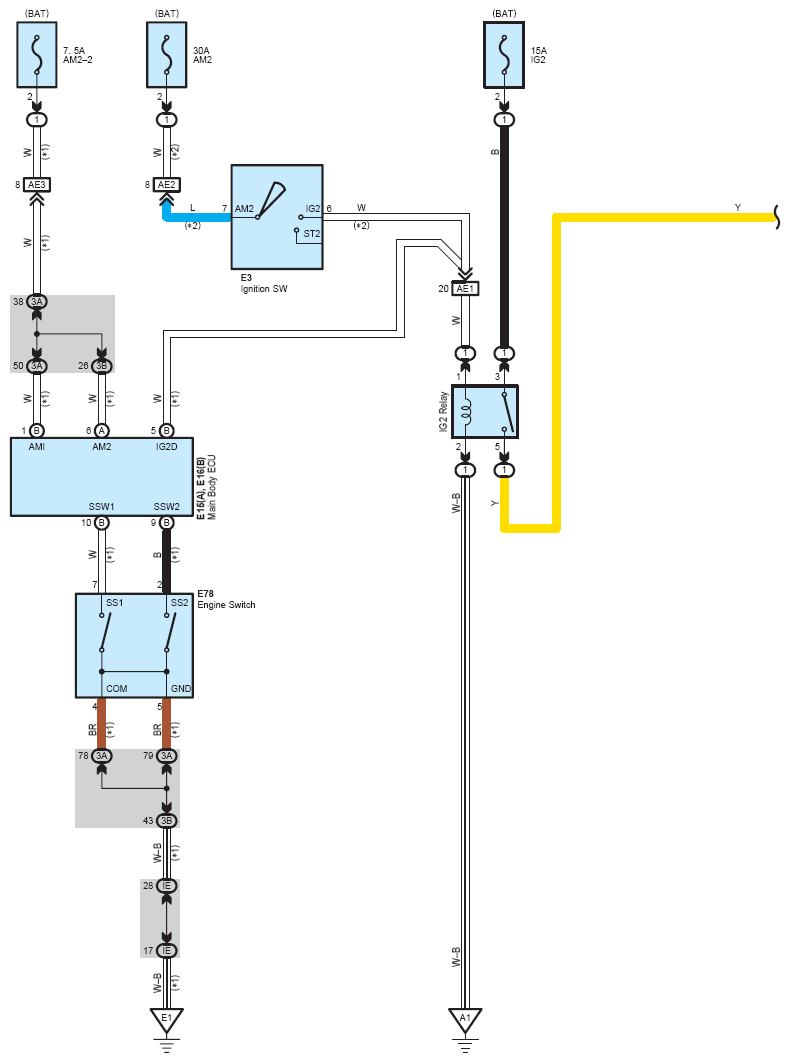

Fig 1: Ignition System Wiring Diagram (2GR-FE; 1 Of 3)
G08845181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

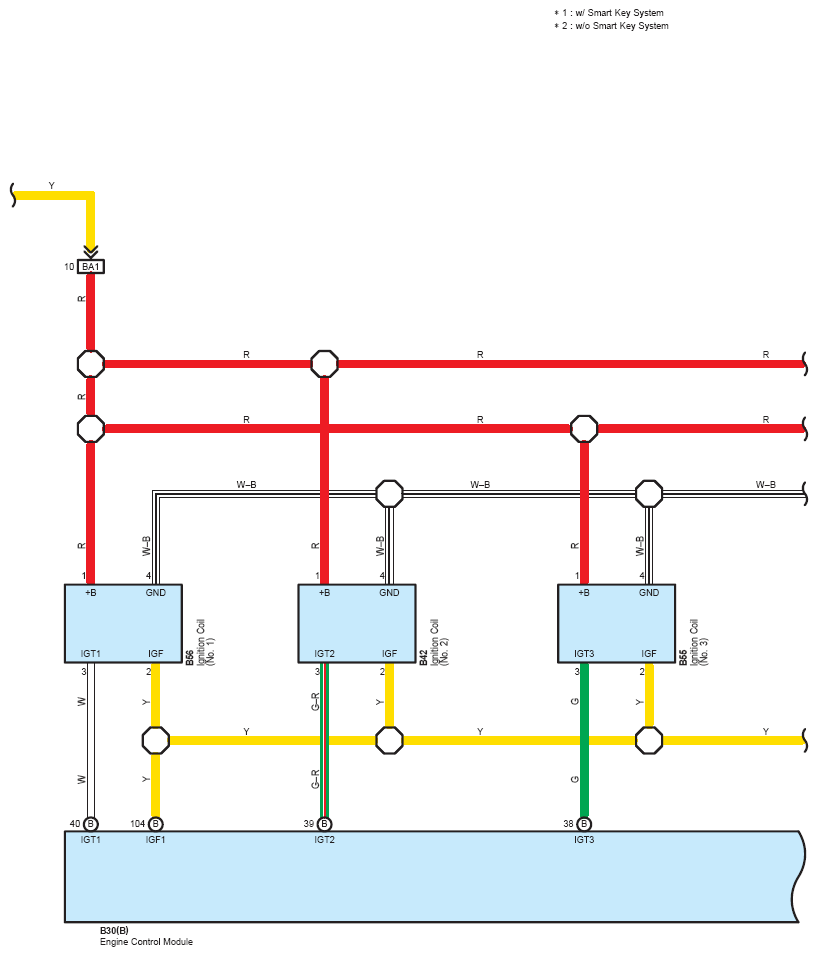

Fig 2: Ignition System Wiring Diagram (2GR-FE; 2 Of 3)
G08845182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

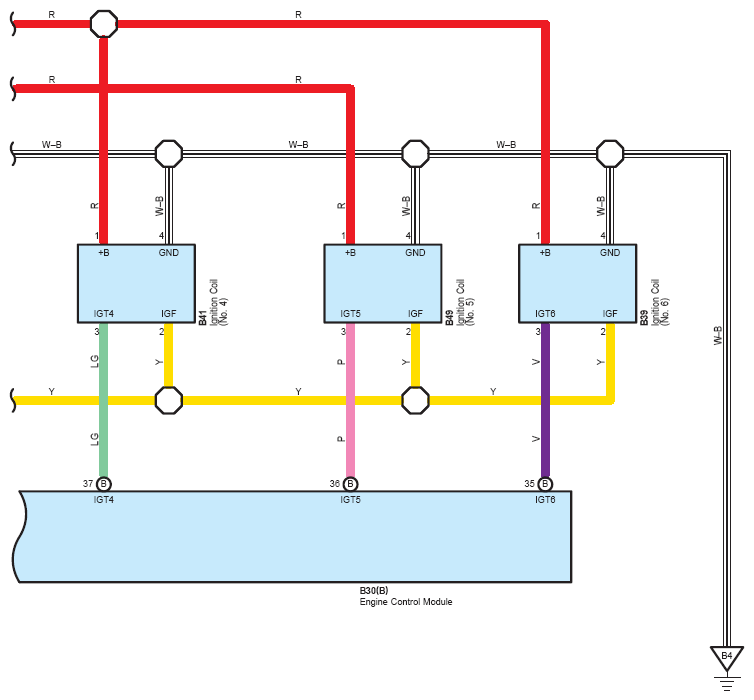

Fig 3: Ignition System Wiring Diagram (2GR-FE; 3 Of 3)
G08845183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
