Wireless Door Lock Control (w/o Smart Key System): Notes

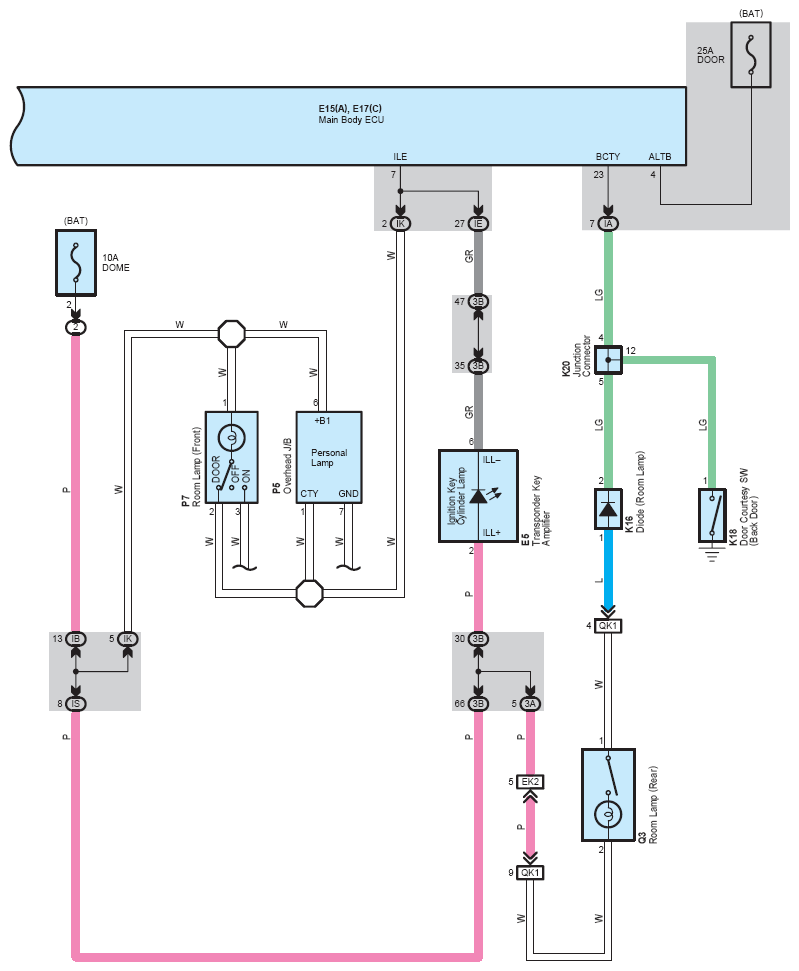

Fig 1: Wireless Door Lock Control (W/O Smart Key) System Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

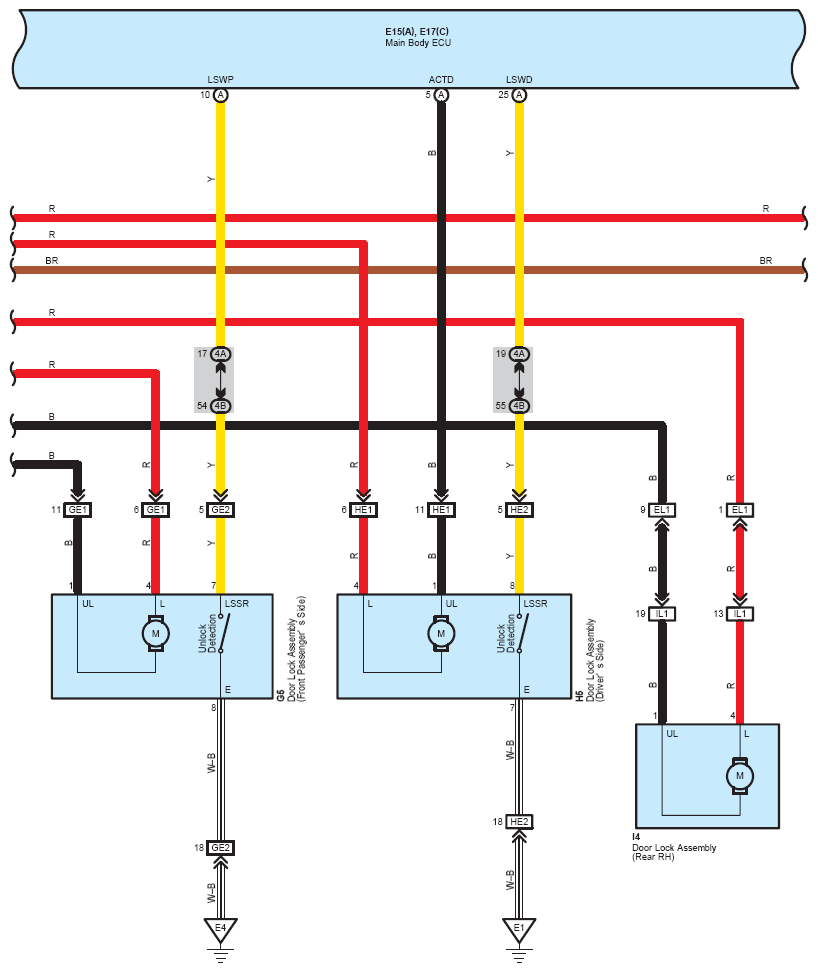

Fig 2: Wireless Door Lock Control (W/O Smart Key) System Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

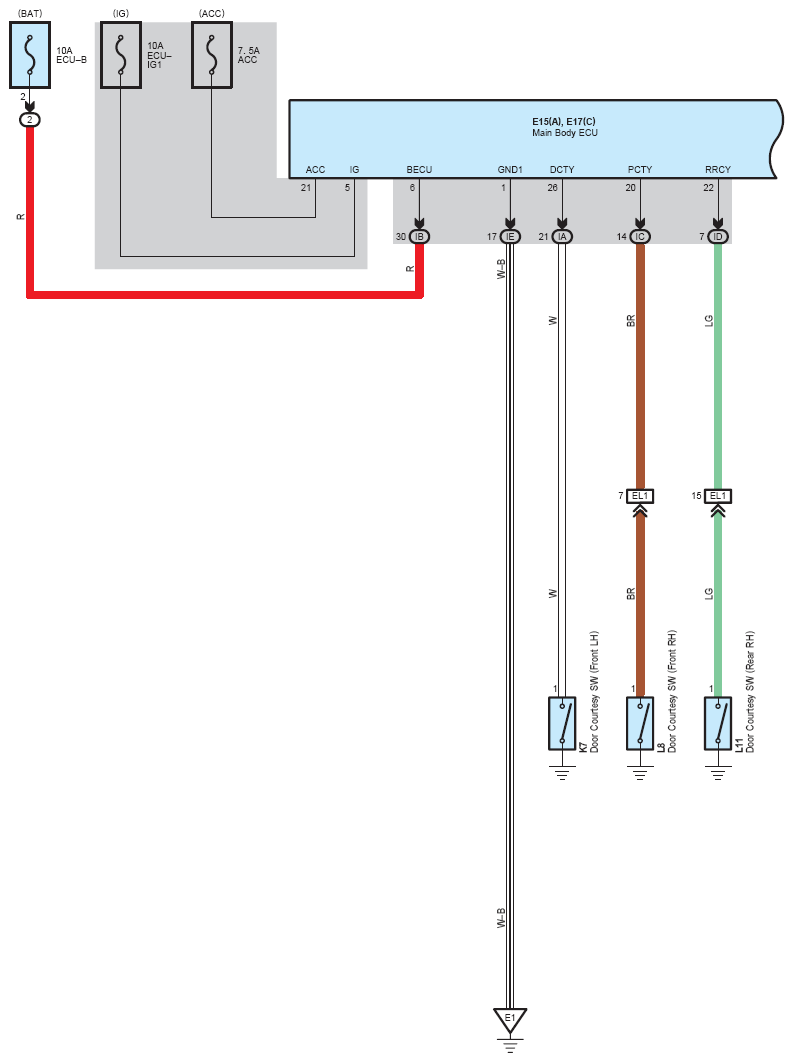

Fig 3: Wireless Door Lock Control (W/O Smart Key) System Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

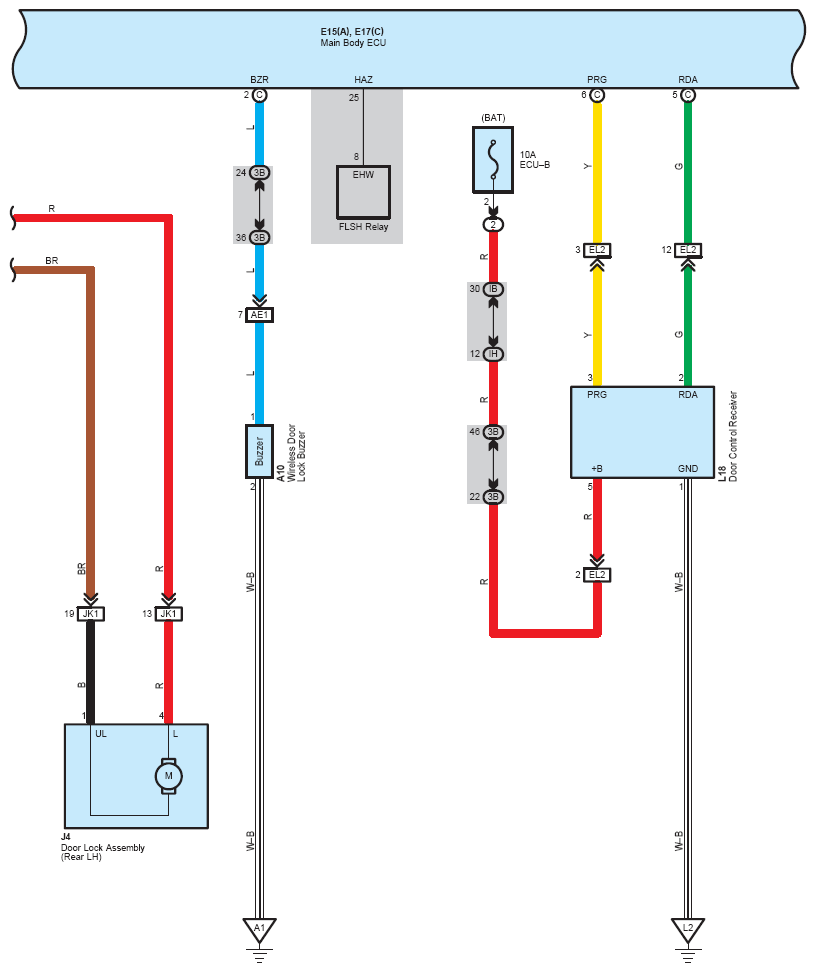

Fig 4: Wireless Door Lock Control (W/O Smart Key) System Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

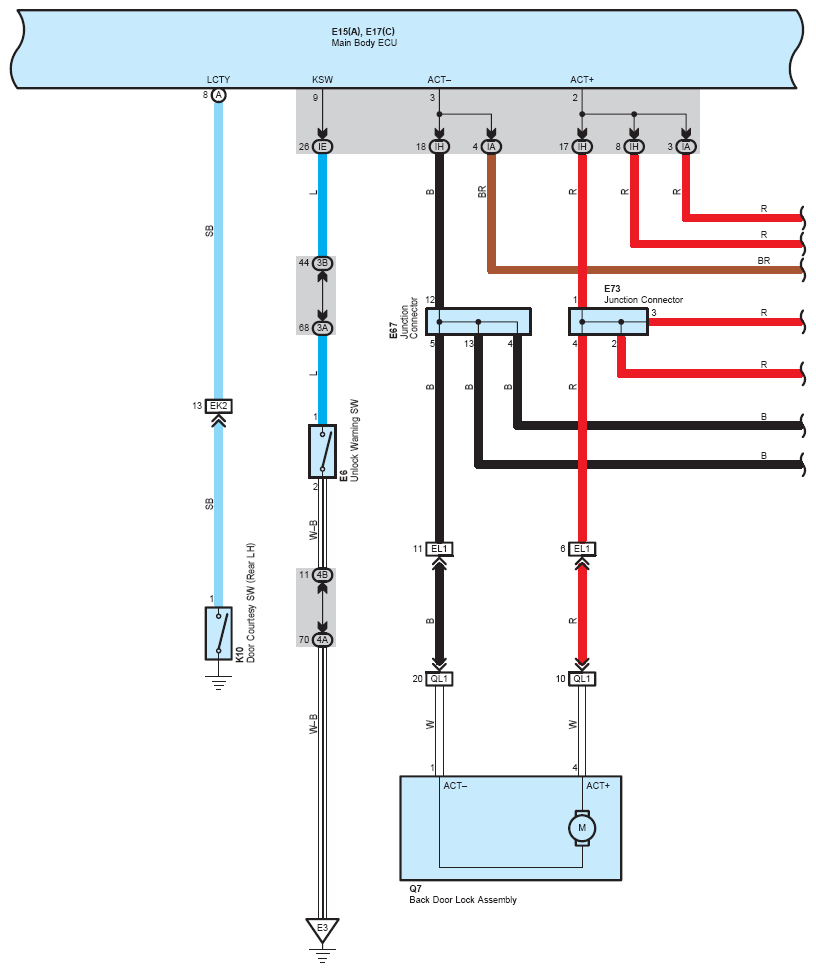

Fig 5: Wireless Door Lock Control (W/O Smart Key) System Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
