Active Control Engine Mount: Installation: Installation

1. Set the front engine mounting insulator in place using the 3 bolt holes.
2. Install the transverse engine mounting bracket to the front engine mounting insulator assembly.
   1. Install the bolt to the transverse engine mounting bracket.

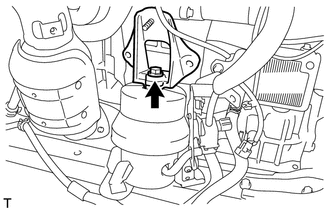

      Fig 1: Identifying Transverse Engine Mounting Bracket

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 87 N*m (887 kgf*cm, 64 ft.*lbf)

   2. Install the 2 bolts and the nut.

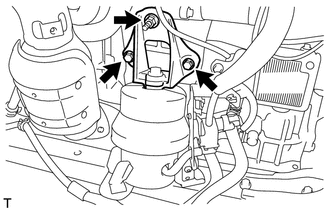

      Fig 2: Identifying Transverse Engine Mounting Bracket & Fasteners

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

1. Install the front engine mounting insulator assembly with the 3 nuts.

   Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

2. Connect the duty vacuum switching valve connector.
3. Engage the wire harness clamp.

Refer to INSTALLATION
