FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): Components: Illustration

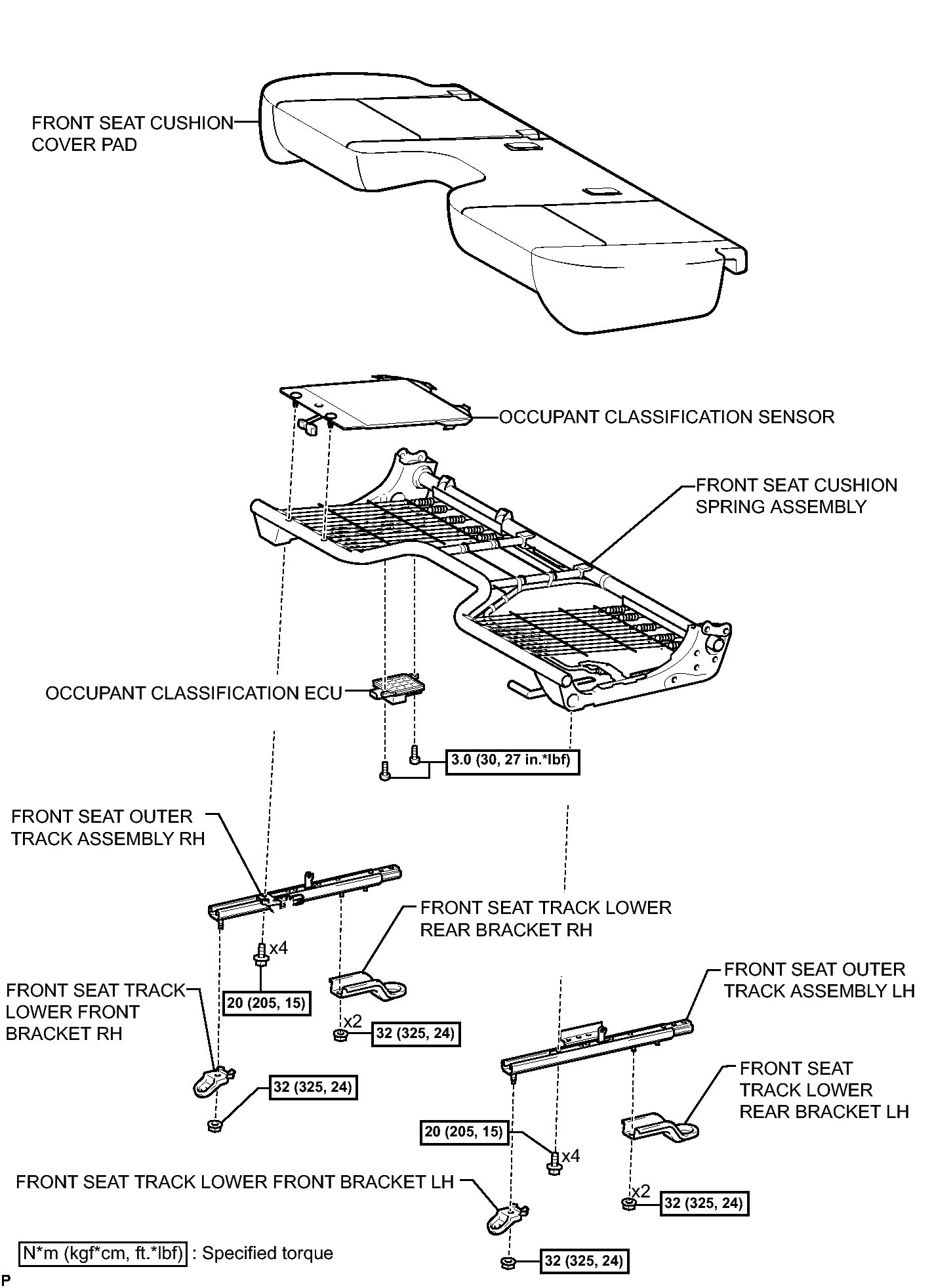

Fig 1: Identifying Front Seat Cushion Assembly (W/ Occupant Classification ECU, Occupant Classification Sensor) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

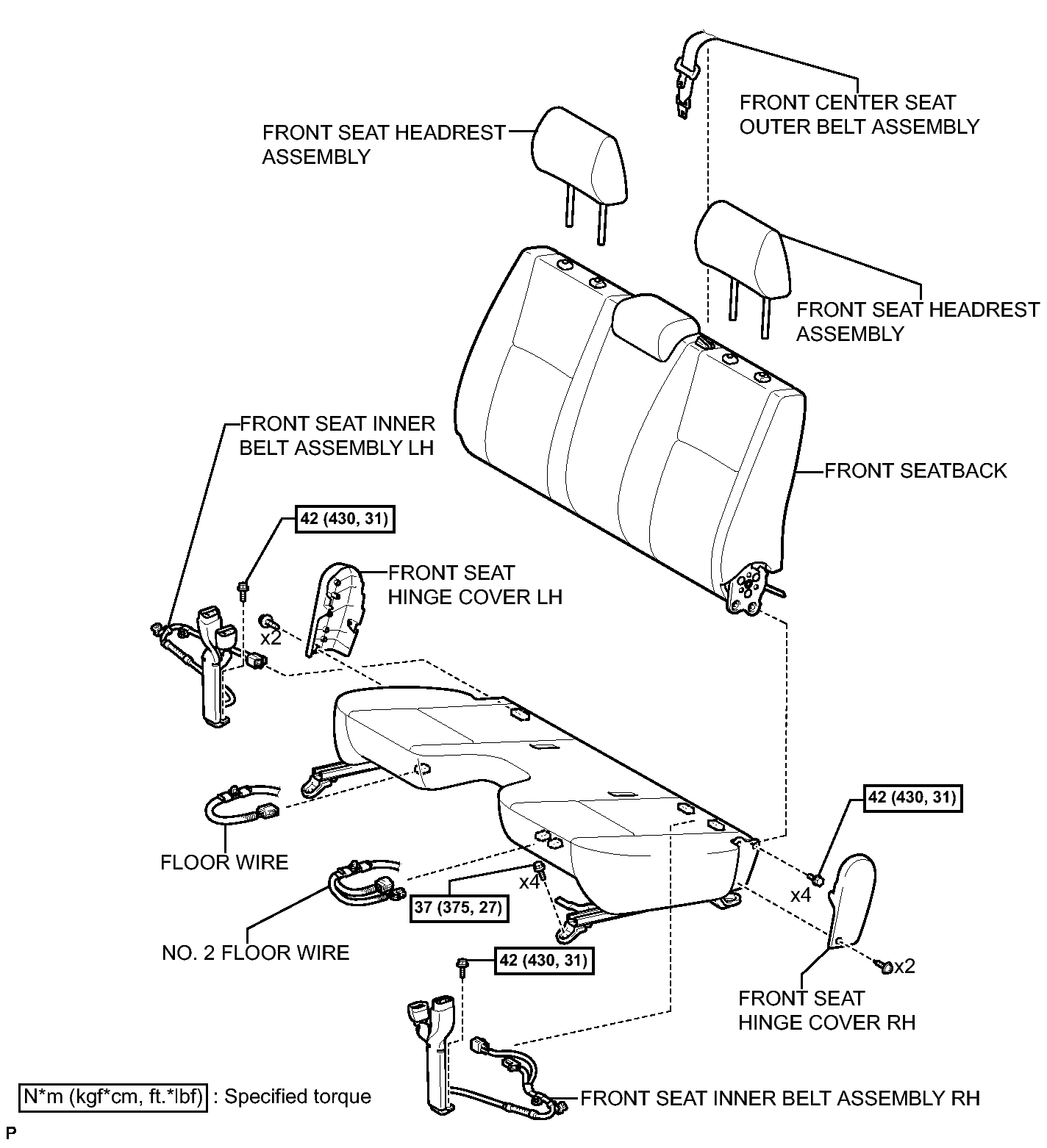

Fig 1: Identifying Front Seat Cushion Assembly (W/ Occupant Classification ECU, Occupant Classification Sensor) Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
