Door Lock Control (S/D): Notes

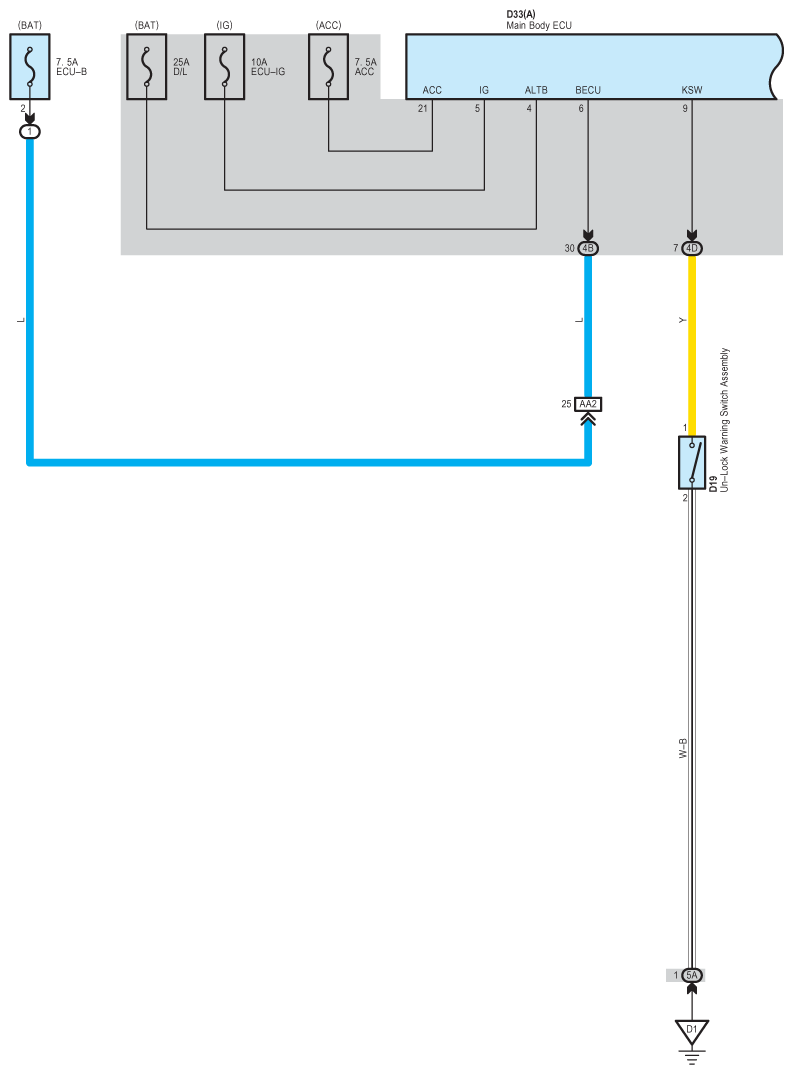

Fig 1: Door Lock Control (S/D) - Circuit Diagram (1 Of 4)
G08949447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

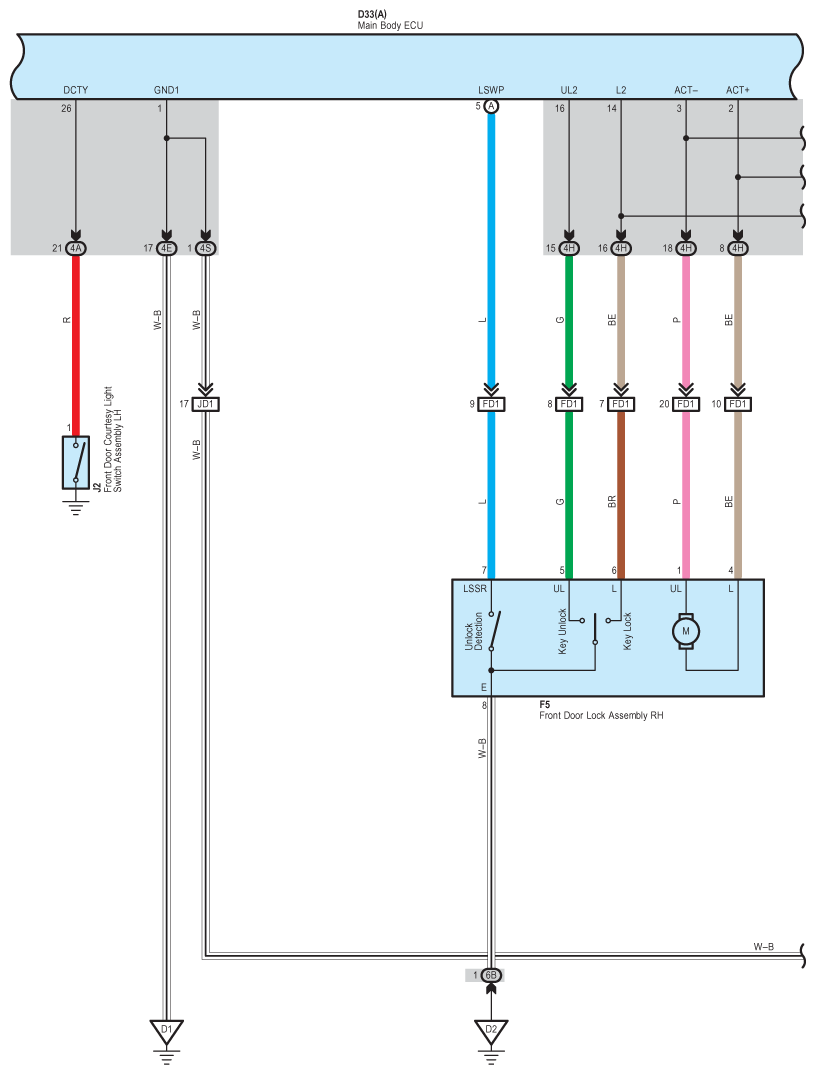

Fig 2: Door Lock Control (S/D) - Circuit Diagram (2 Of 4)
G08949448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

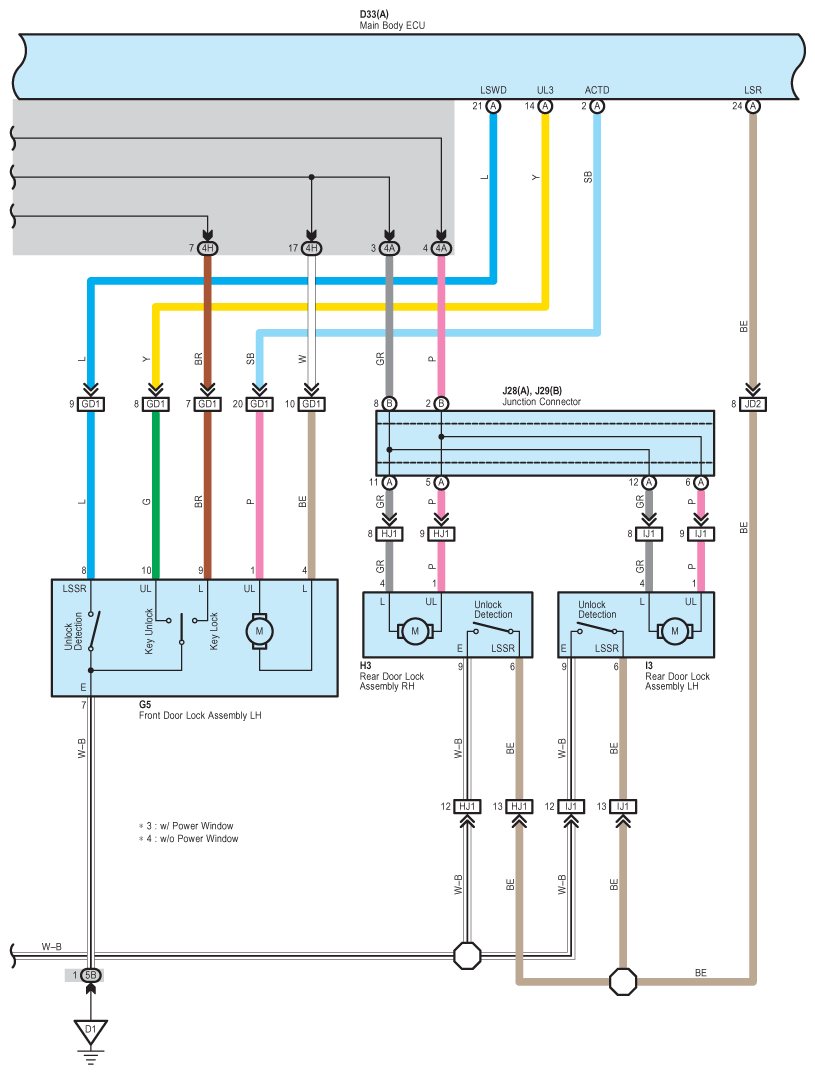

Fig 3: Door Lock Control (S/D) - Circuit Diagram (3 Of 4)
G08949449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Door Lock Control (S/D) - Circuit Diagram (4 Of 4)
G08949450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
