Remote Control Mirror (S/D): Notes

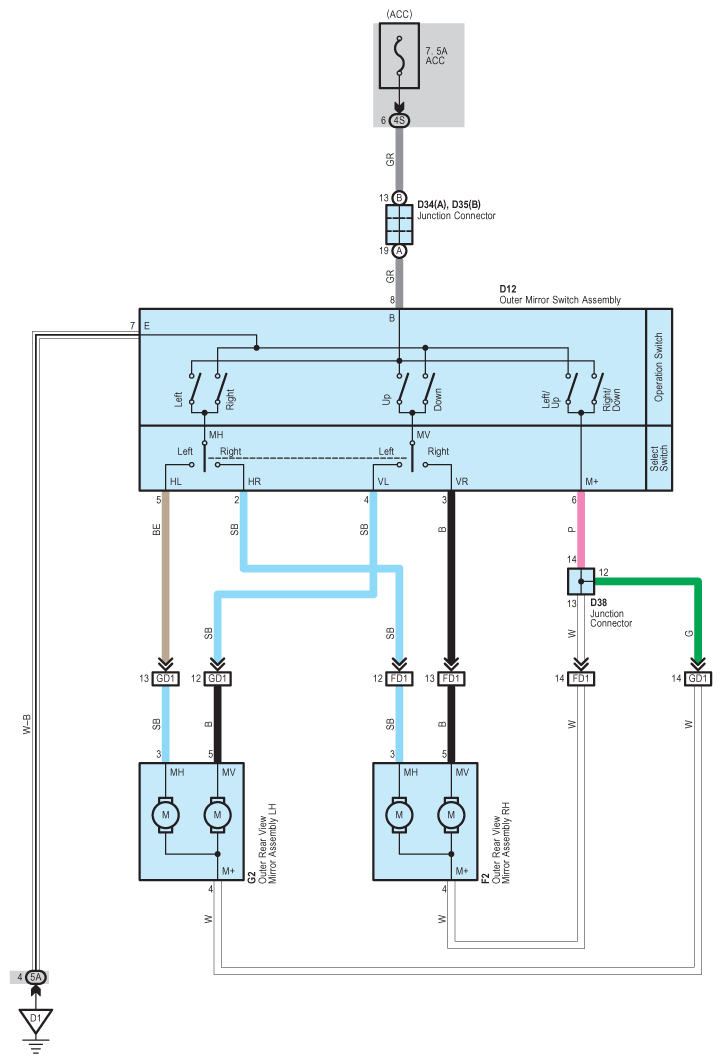

Fig 1: Remote Control Mirror (S/D) - Circuit Diagram
G08949469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
