Stop Light (S/D): Notes

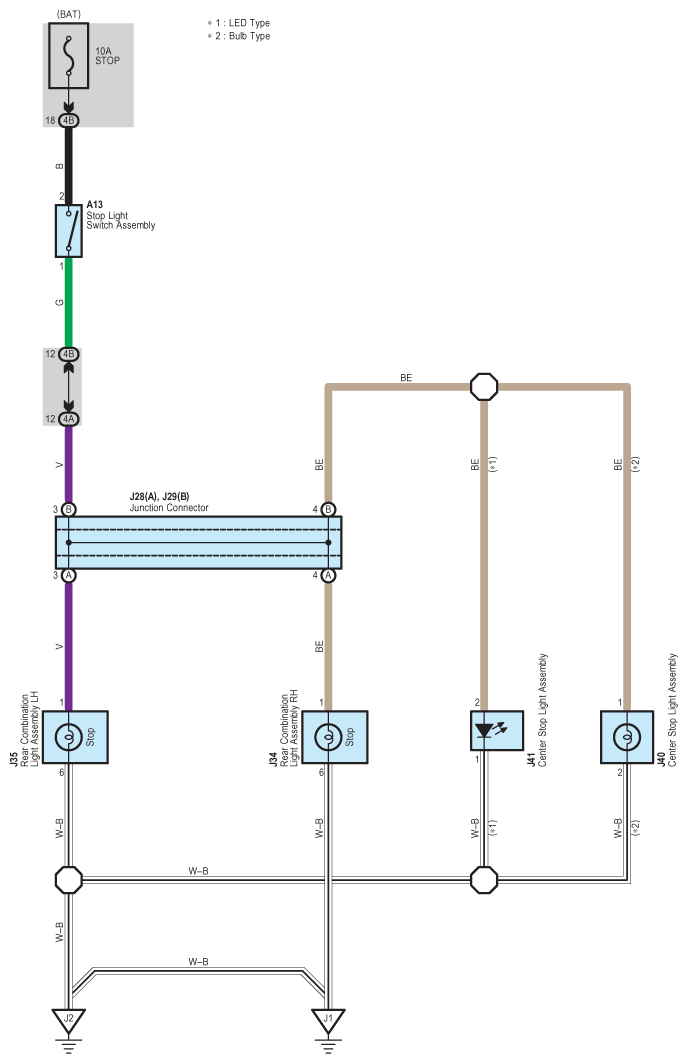

Fig 1: Stop Light (S/D) - Circuit Diagram
G08949418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
