Power Windows do not Operate at All: Wiring Diagram

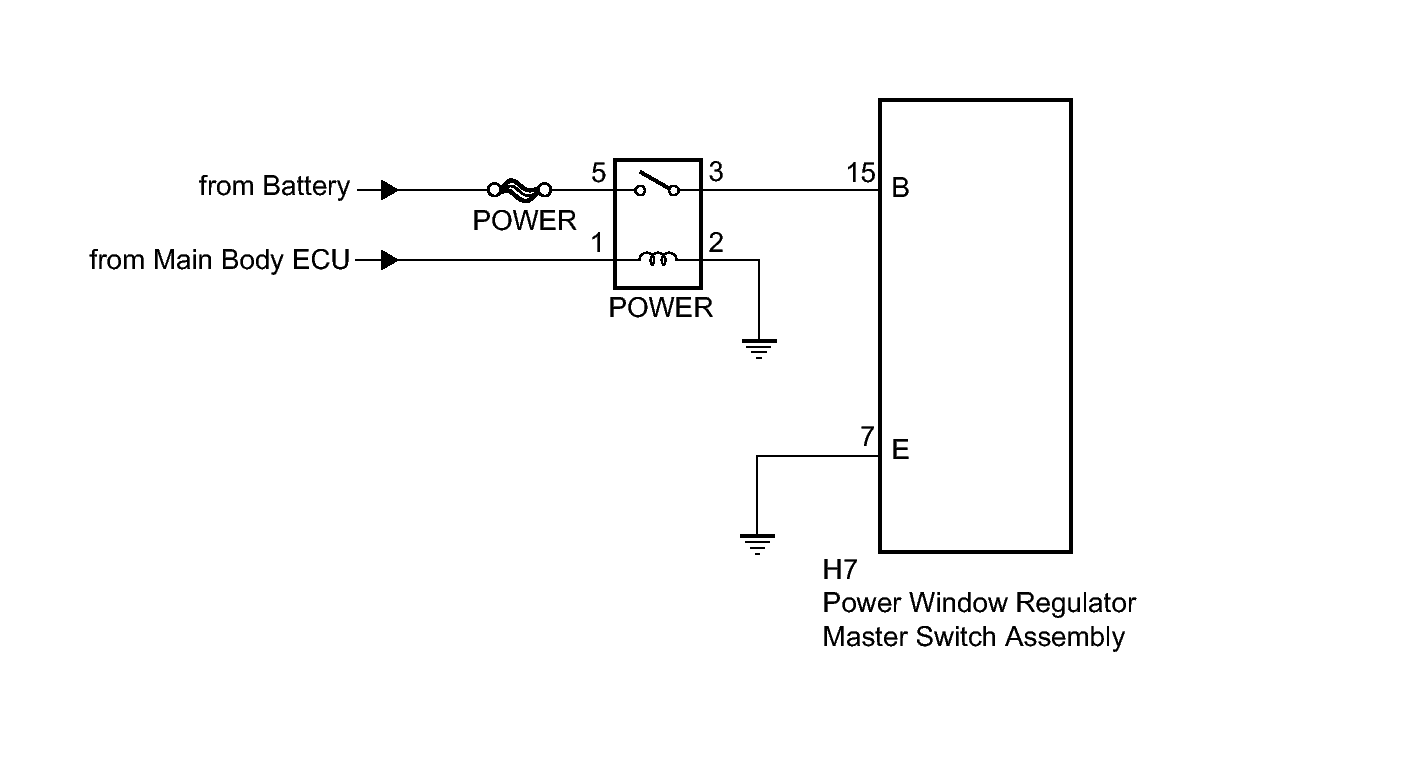

Fig 1: Power Window Regulator Master Switch Wiring Diagram
GTY316734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
