VSC Off Switch: Installation: Installation

INSTALL VSC OFF SWITCH
1. Engage the 2 claws and install the VSC off switch.

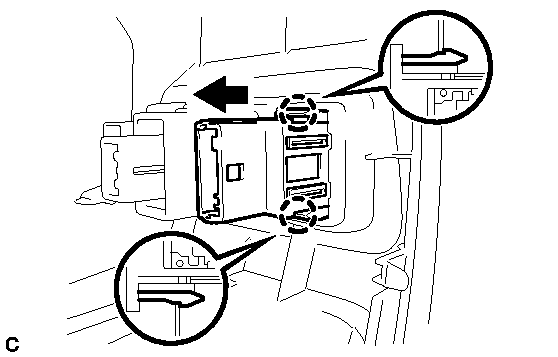

  Fig 1: Engaging VSC OFF Switch Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY . Refer to INSTALLATION - Step 9
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK VSC WARNING LIGHT AND INDICATOR LIGHT
HINT:

Refer to TEST MODE PROCEDURE
