Back Door Opener (w/Smart Key System), Hybrid Vehicle Immobilizer System, Smart Key System, Starting (w/Smart Key System), Steering Lock (w/Smart Key System) and Wireless Door Lock Control (w/Smart Key System): Notes

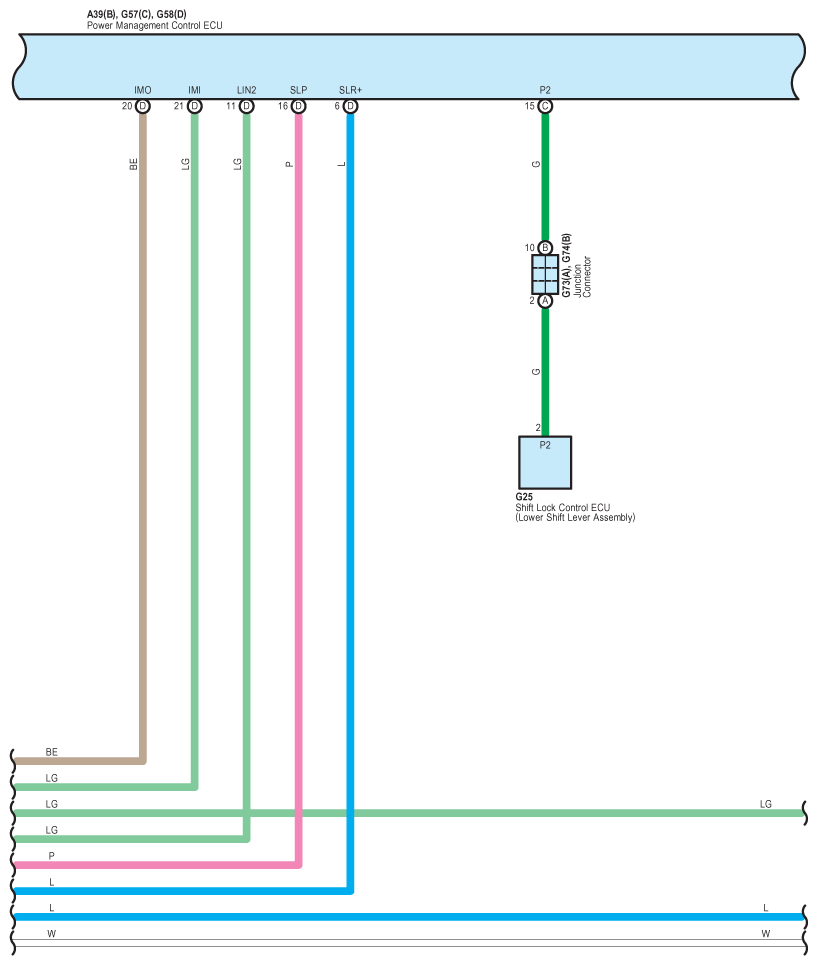

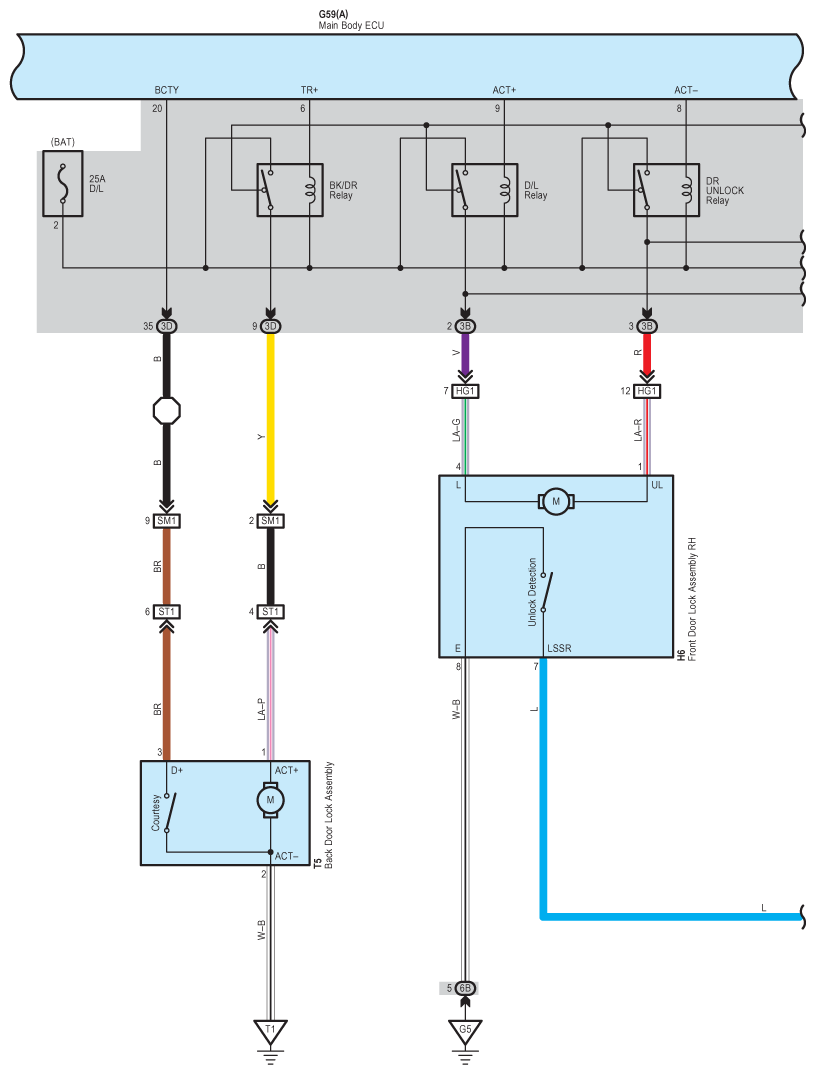

Fig 1: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

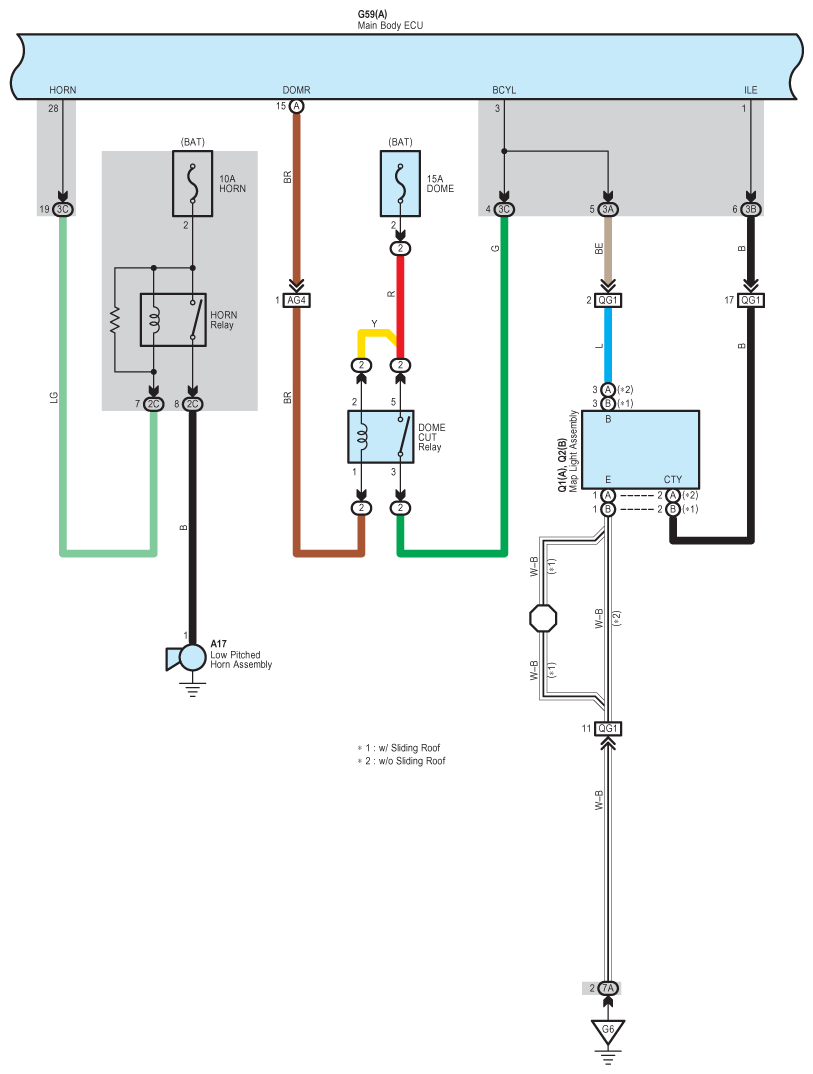

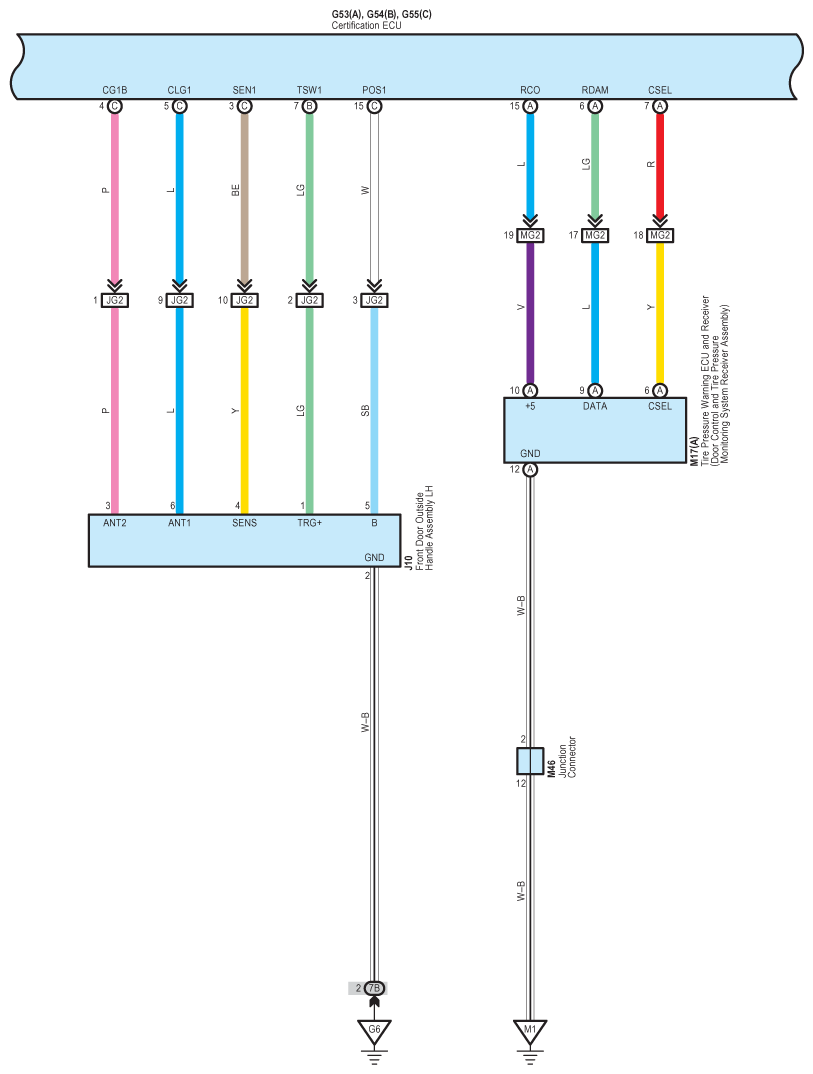

Fig 2: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

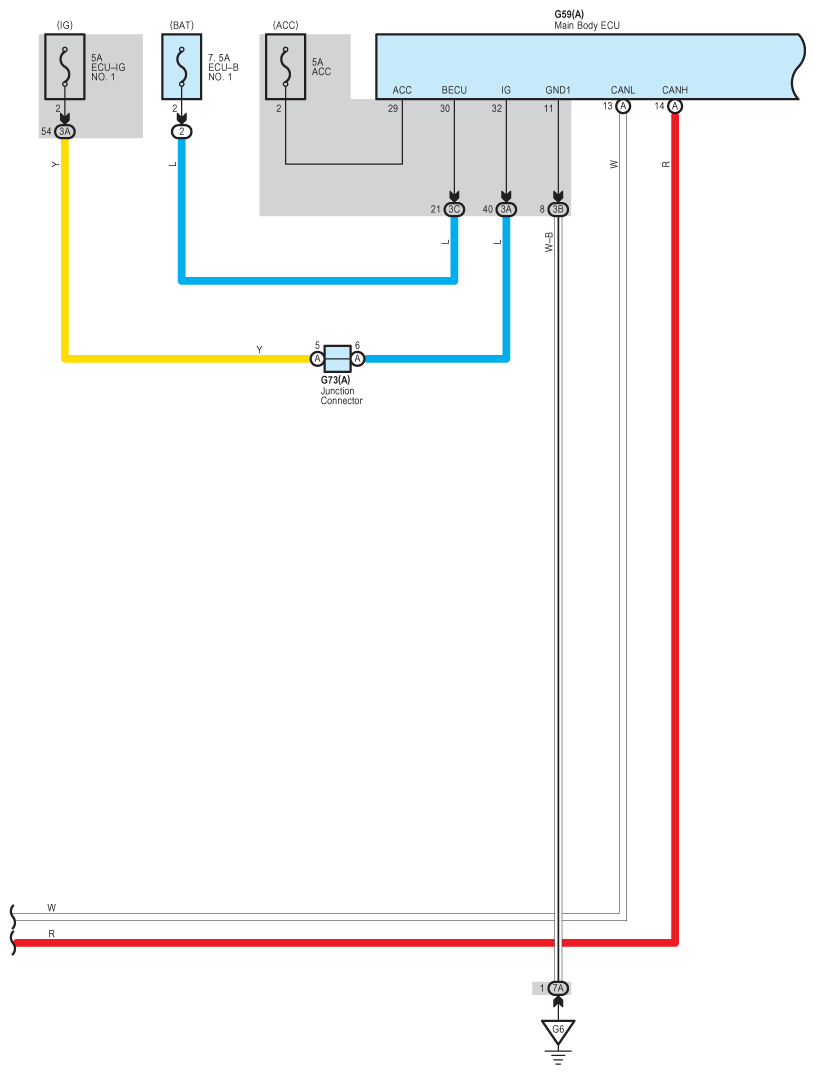

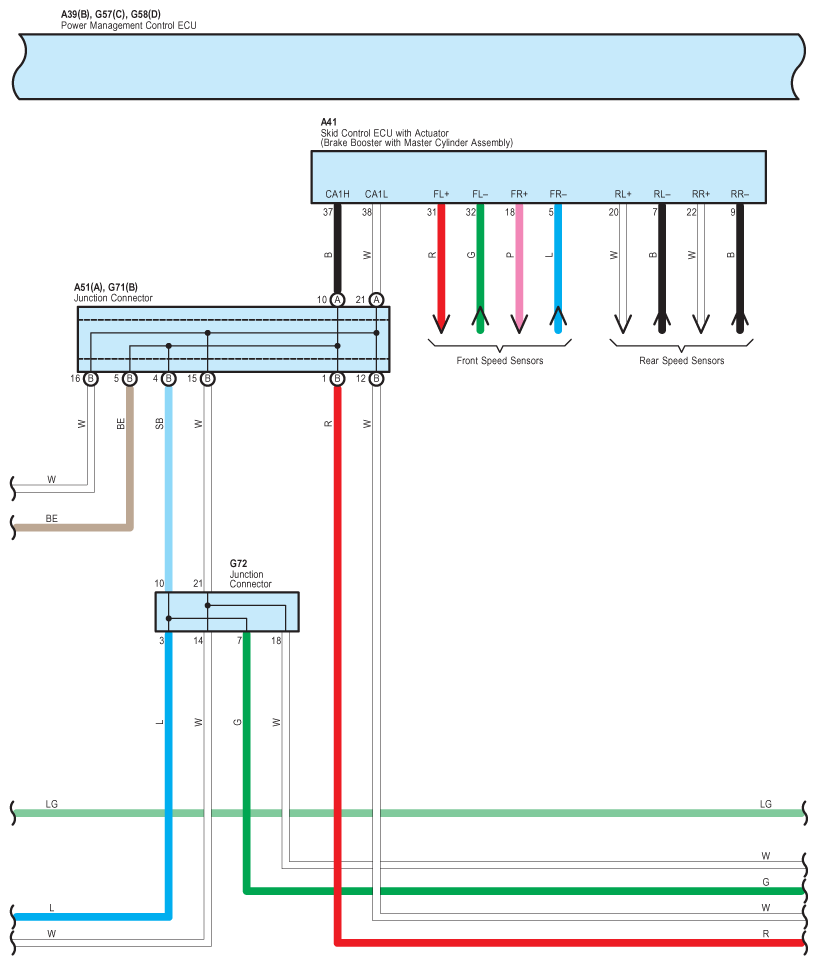

Fig 3: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

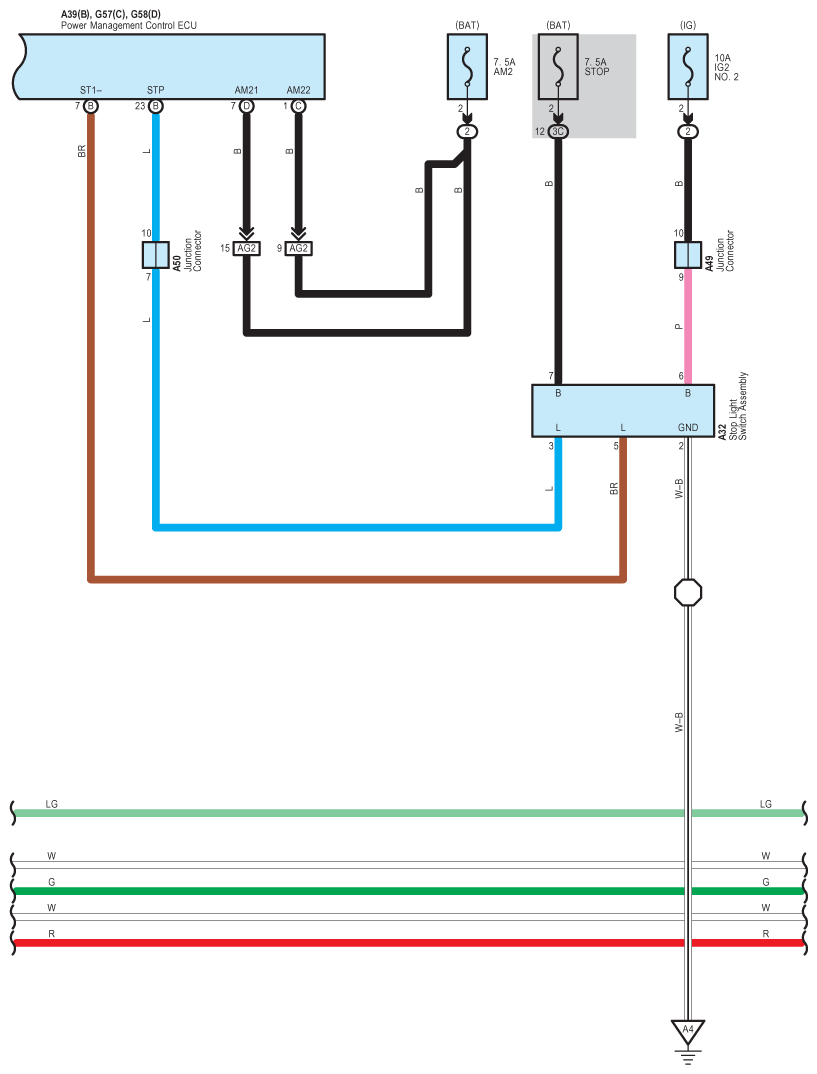

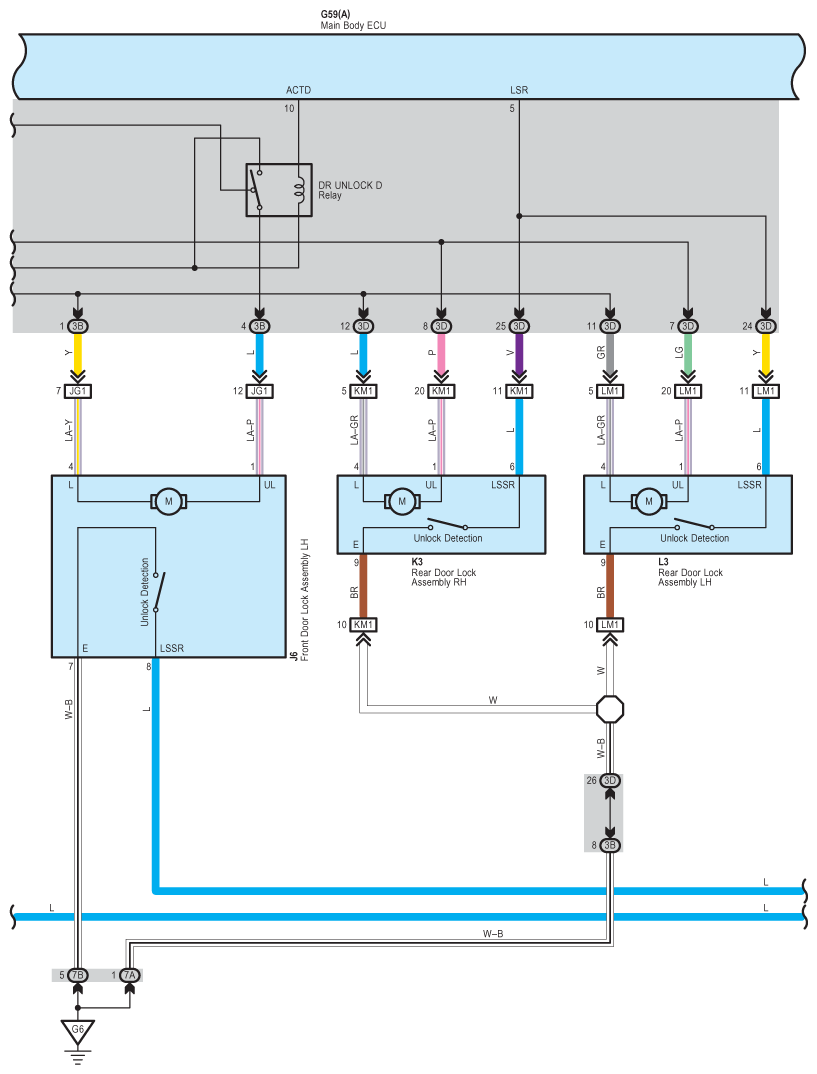

Fig 4: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

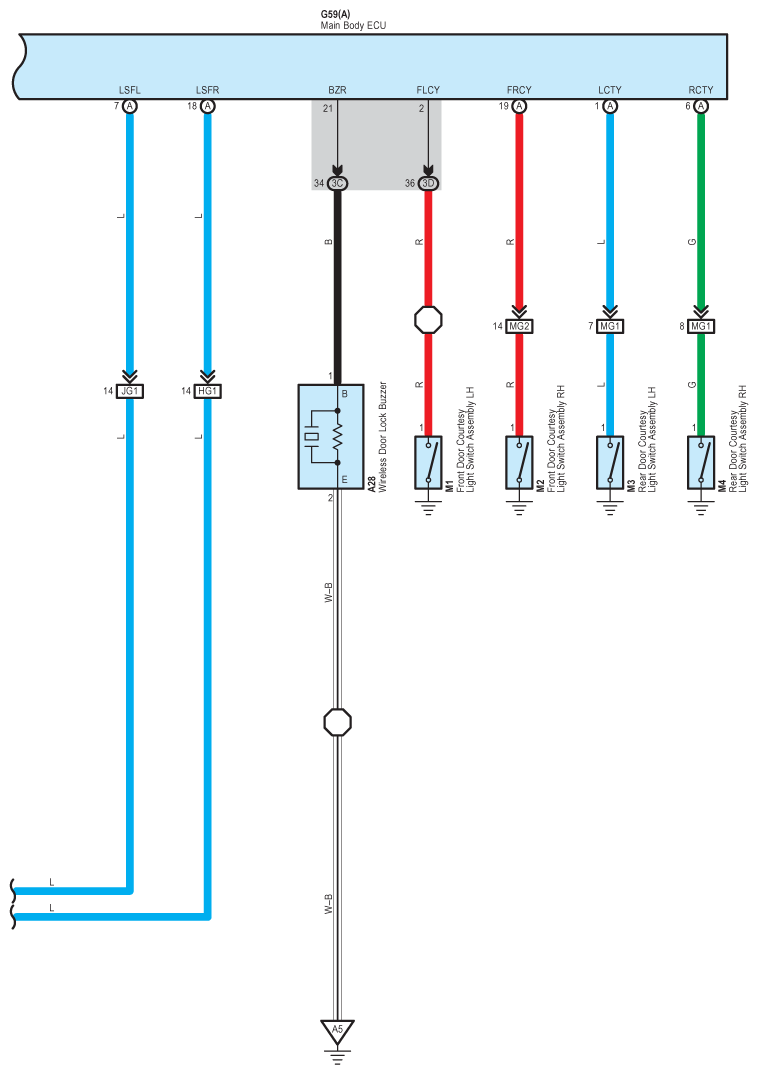

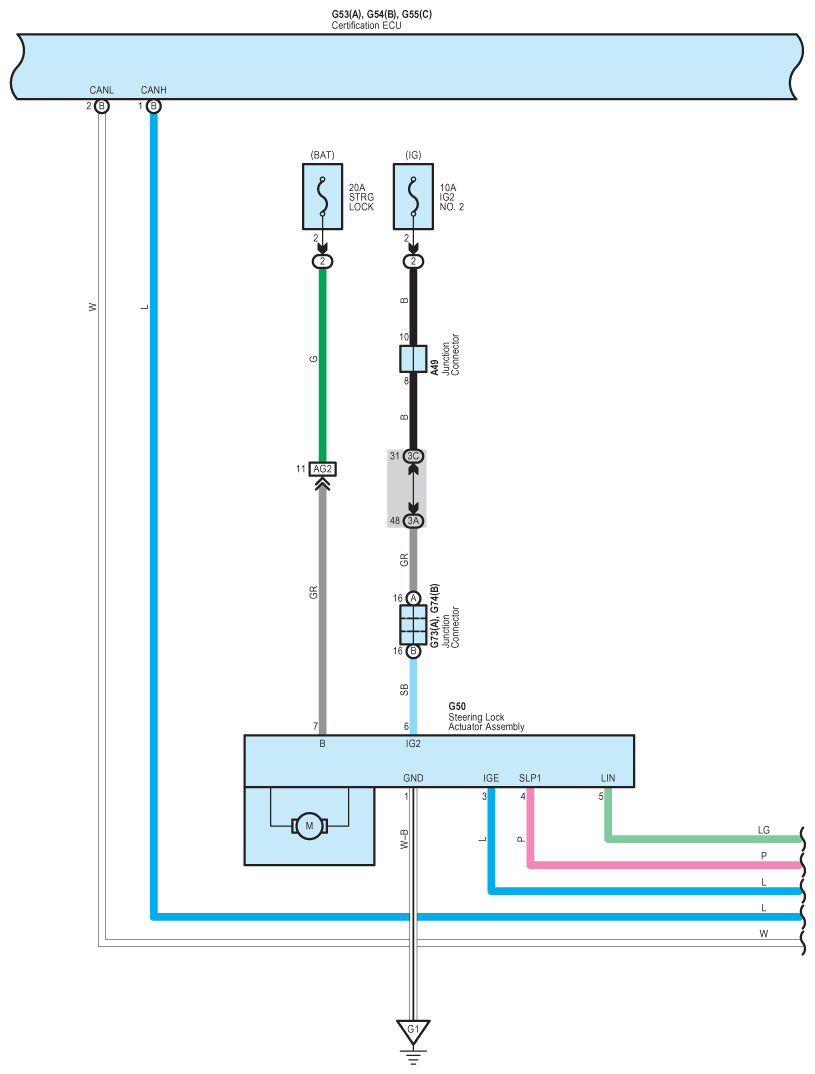

Fig 5: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

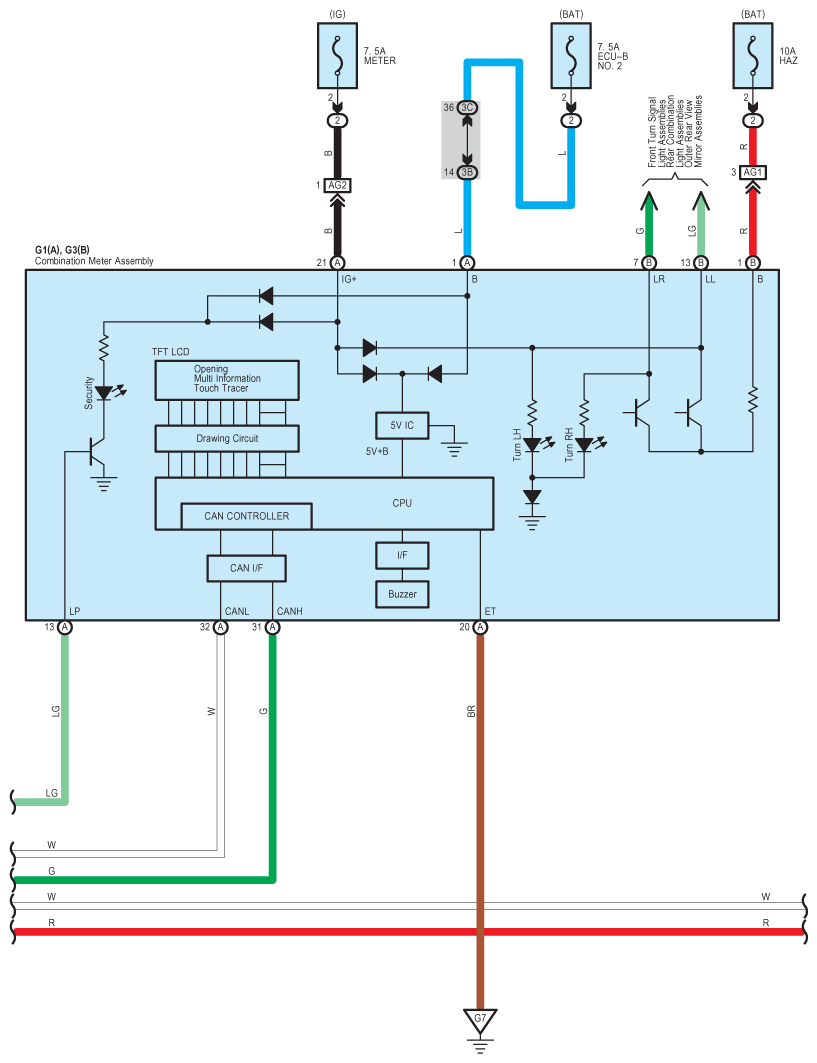

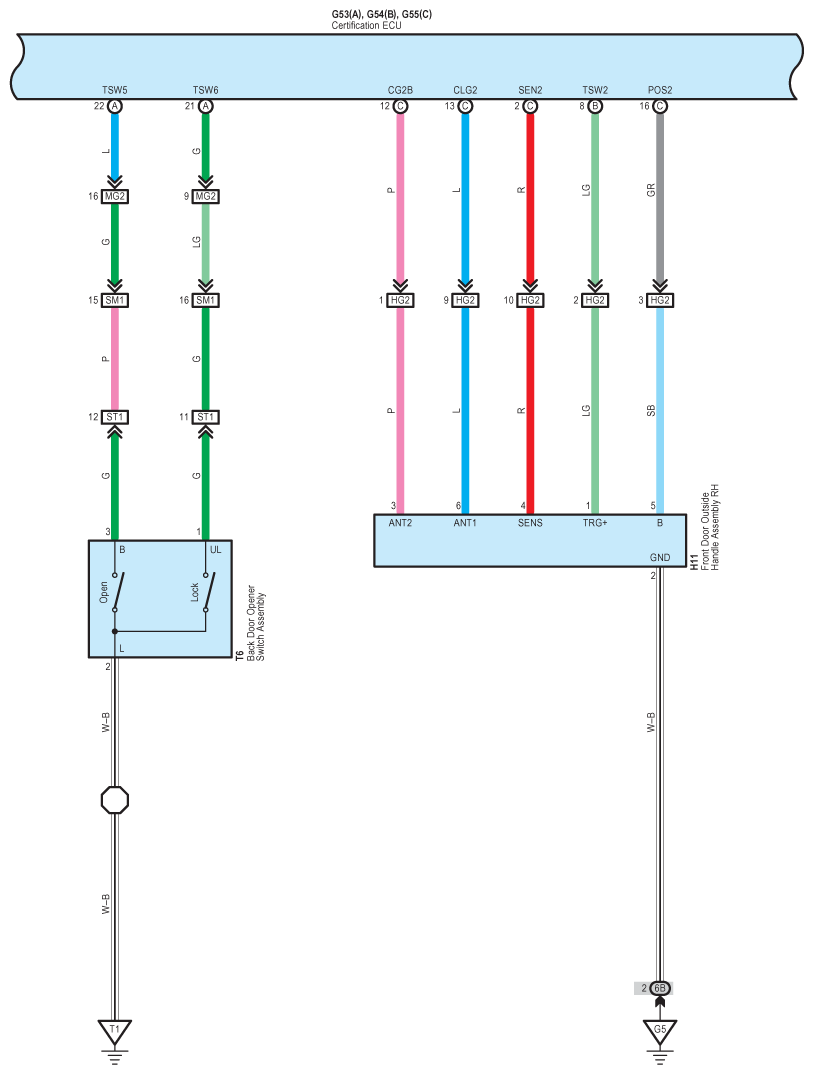

Fig 6: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

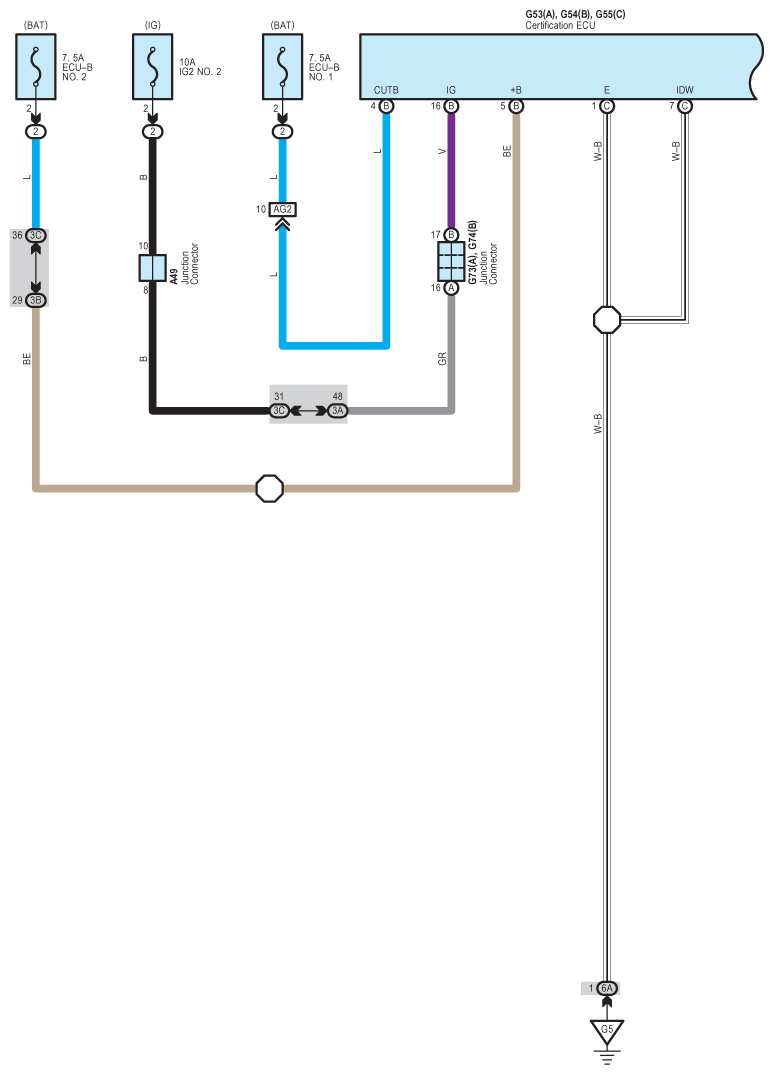

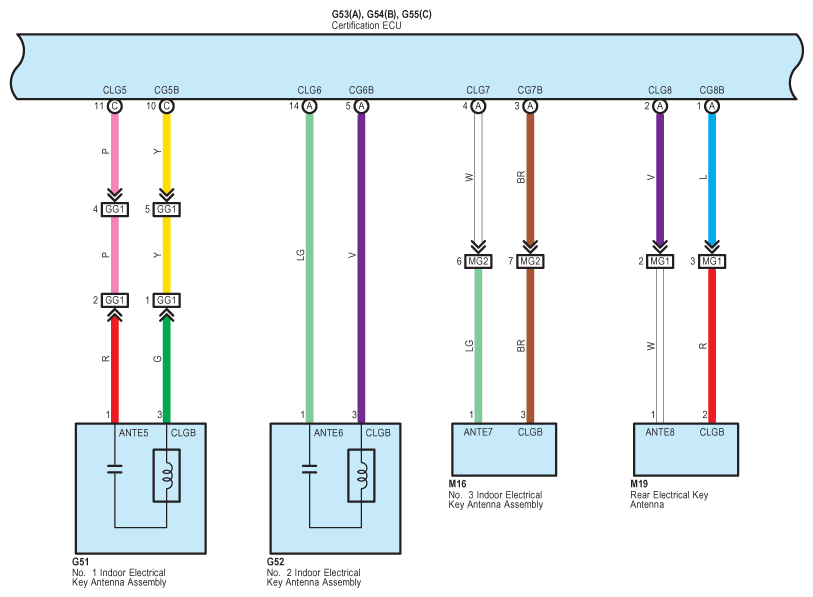

Fig 7: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

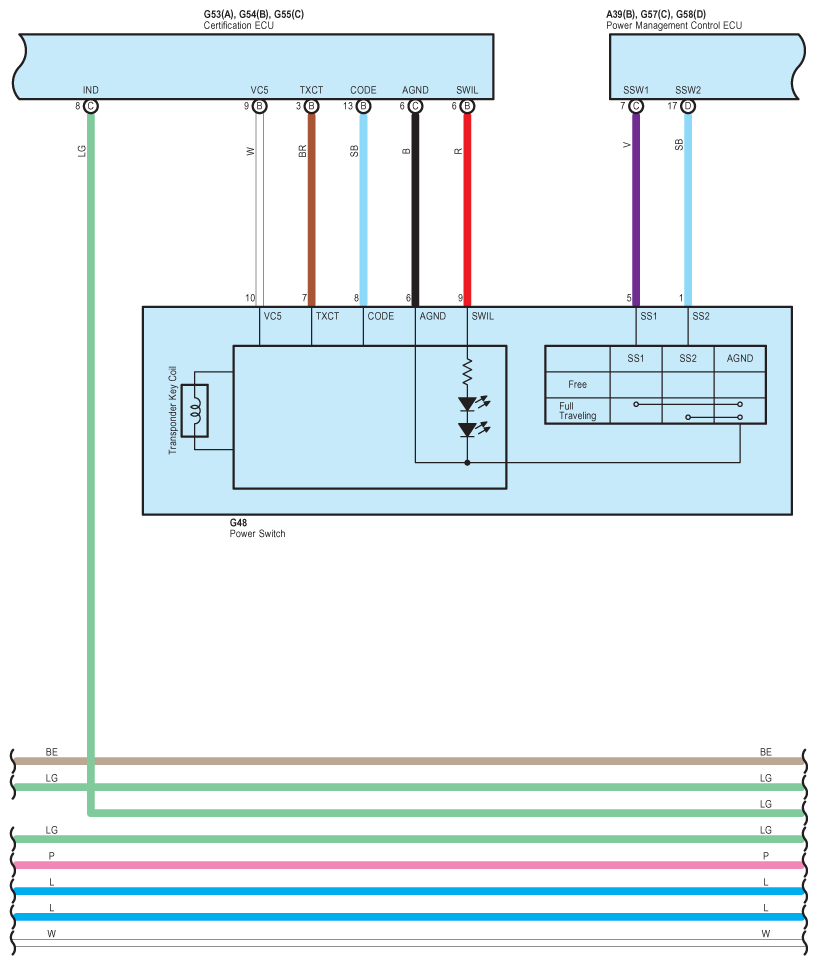

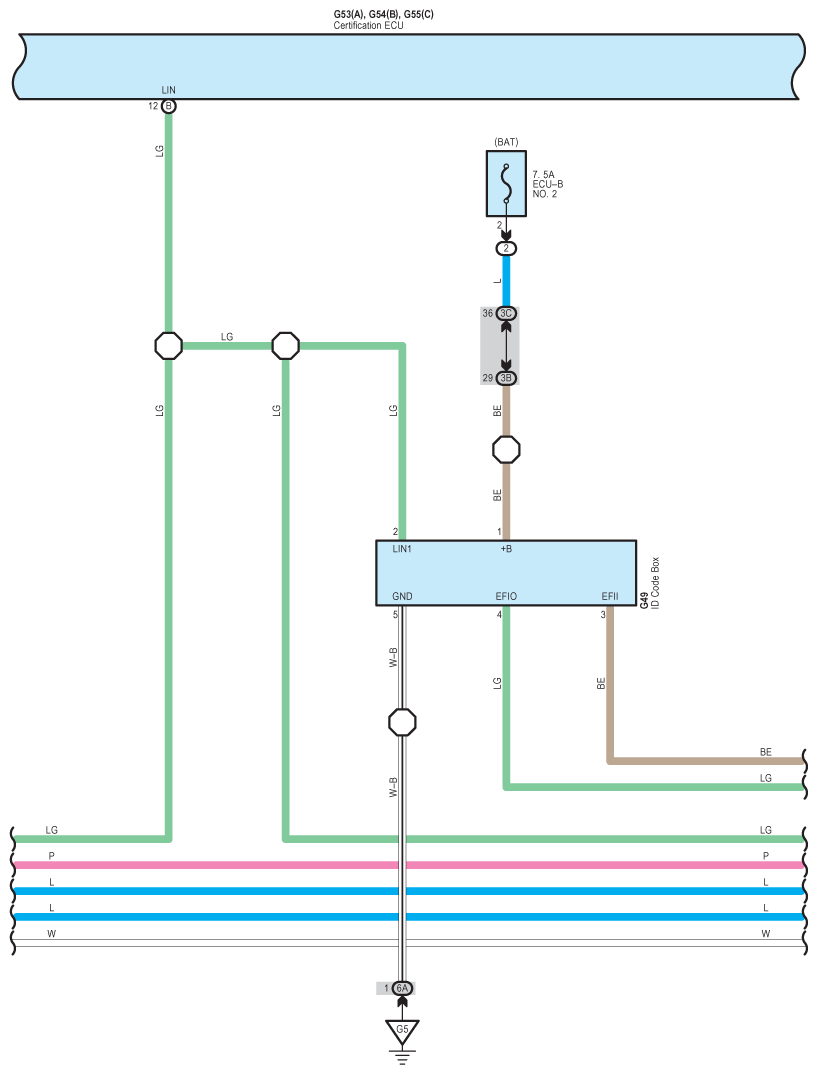

Fig 8: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (12 Of 17)

Fig 13: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (13 Of 17)

Fig 14: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (14 Of 17)

Fig 15: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (15 Of 17)

Fig 16: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (16 Of 17)

Fig 17: Back Door Opener, Hybrid Vehicle Immobilizer, Steering And Wireless Lock Control Wiring Diagram (17 Of 17)
