Connector End View (AL4)

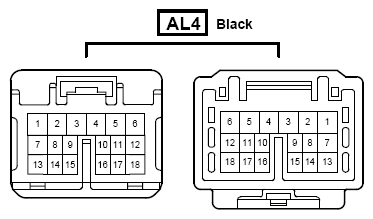

Fig 1: Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Reinforcement) Connector End View (AL4)
G09100818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
