EGR Valve: Components: Illustration

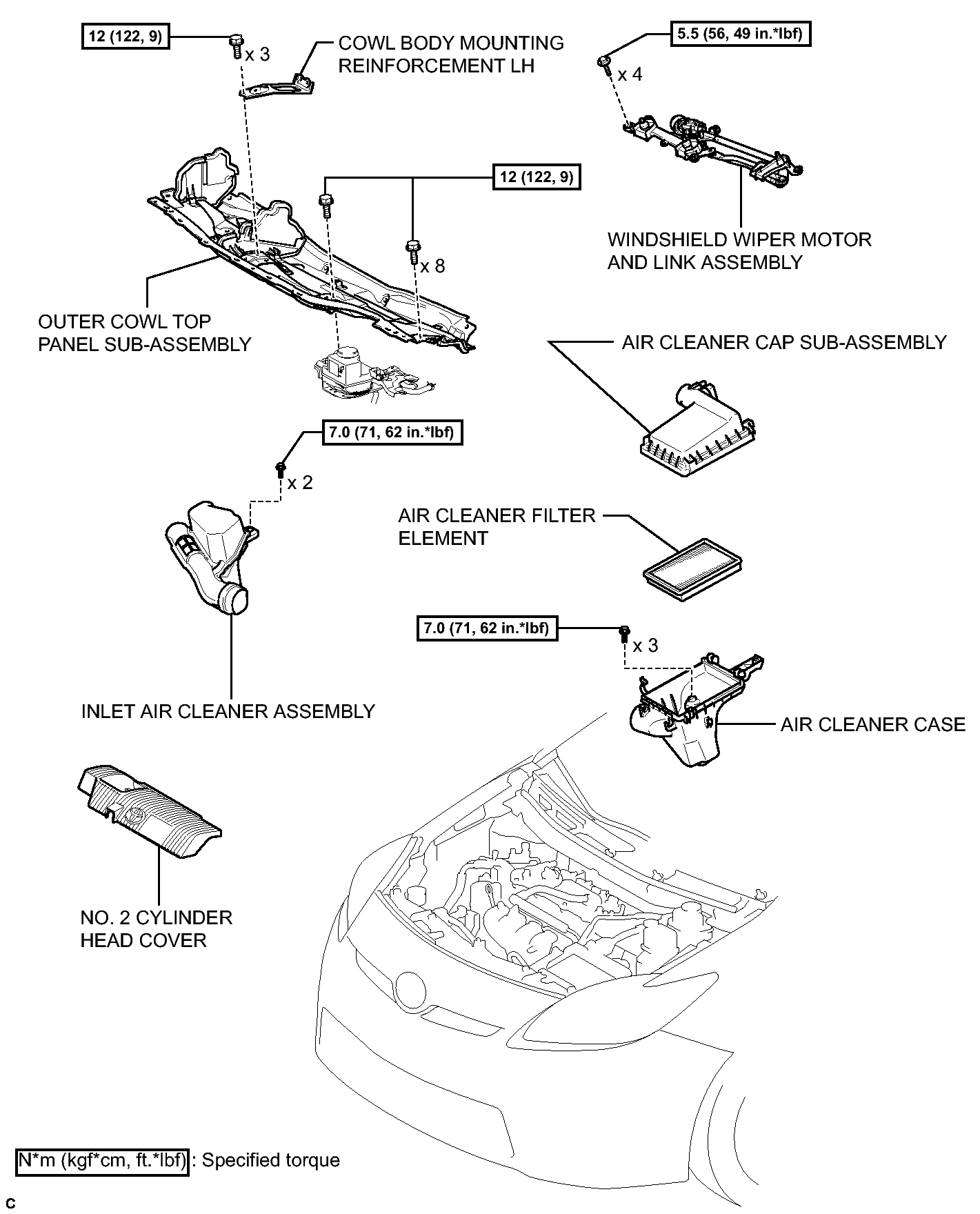

Fig 1: EGR Valve Replacement Components With Torque Specifications (1 Of 3)
GTY337788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

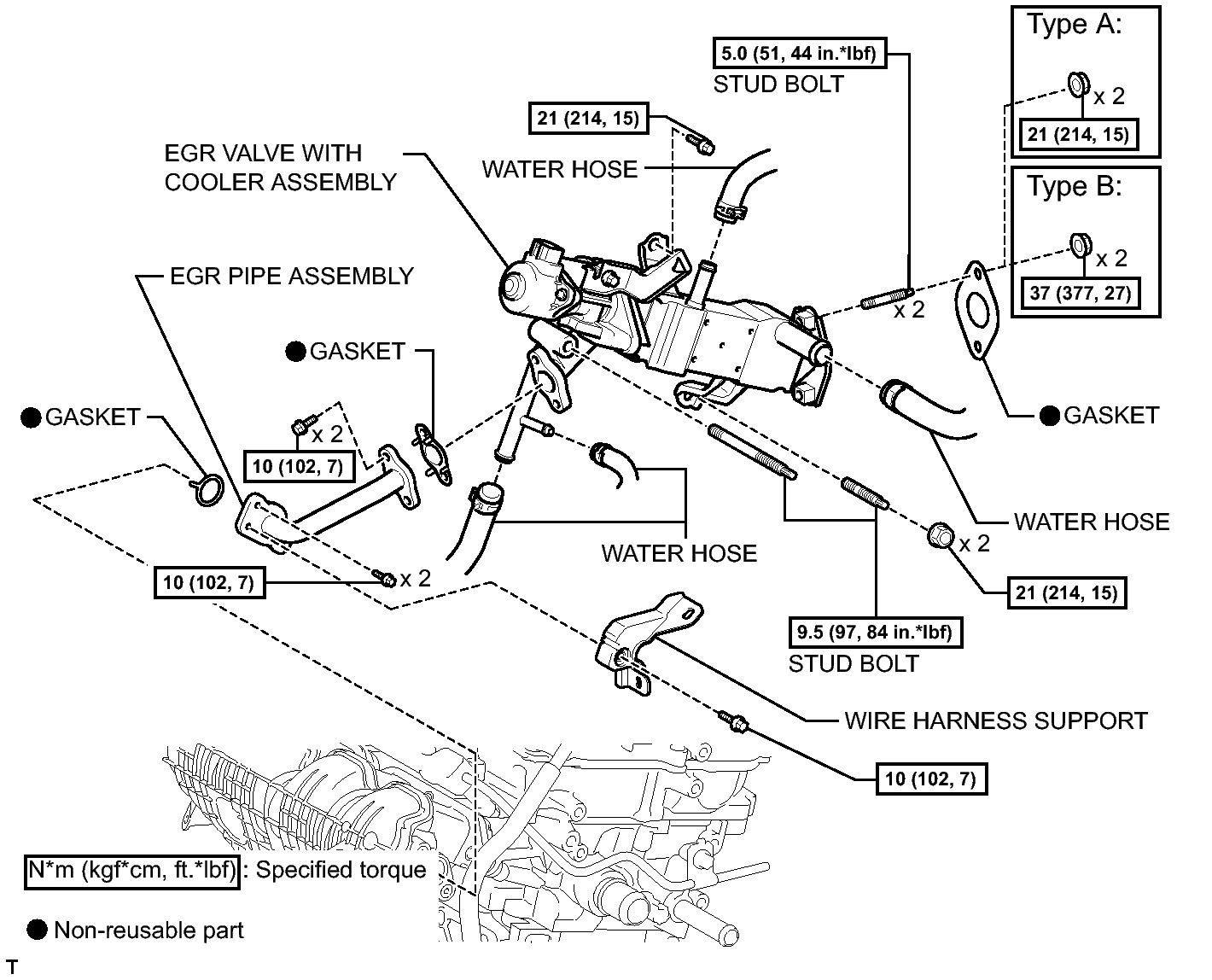

Fig 1: EGR Valve Replacement Components With Torque Specifications (2 Of 3)
GTY330859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

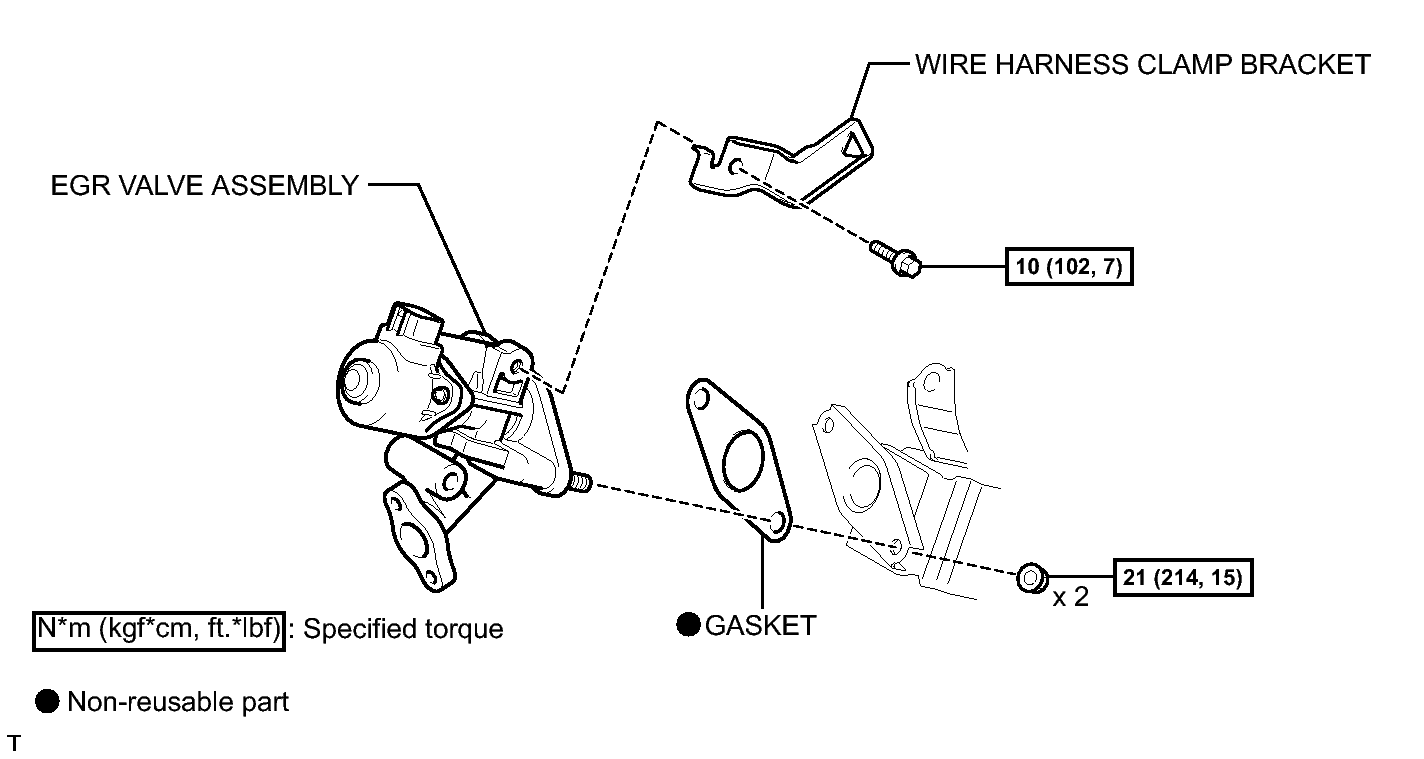

Fig 1: EGR Valve Replacement Components With Torque Specifications (3 Of 3)
GTY337736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
