Fuel Sender Gauge Assembly: Inspection: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT FUEL SENDER GAUGE ASSEMBLY
    1. Check that the float moves smoothly between F and E.

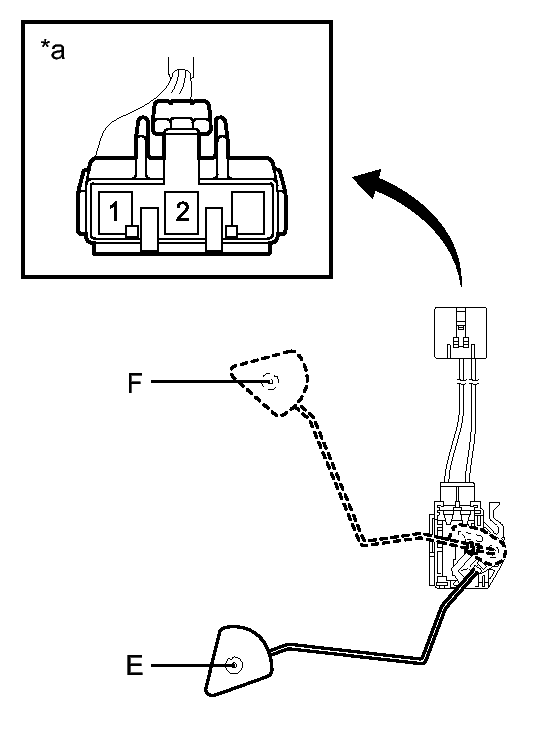

      Fig 1: Inspecting Fuel Sender Gauge Assembly
      GTY328763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front view of wire harness connector
      (to Fuel Sender Gauge Assembly)
    2. Measure the resistance between terminals 1 and 2 of the connector according to the value(s) in the table below.

      Standard Resistance

      Float Level Resistance (Ω)
      F 13.5 to 16.5
      Between E and F 13.5 to 414.5 (Gradually changes)
      E 405.5 to 414.5
      1. If the value is not as specified, replace the fuel sender gauge assembly.
