Generator Cable: Components: Illustration

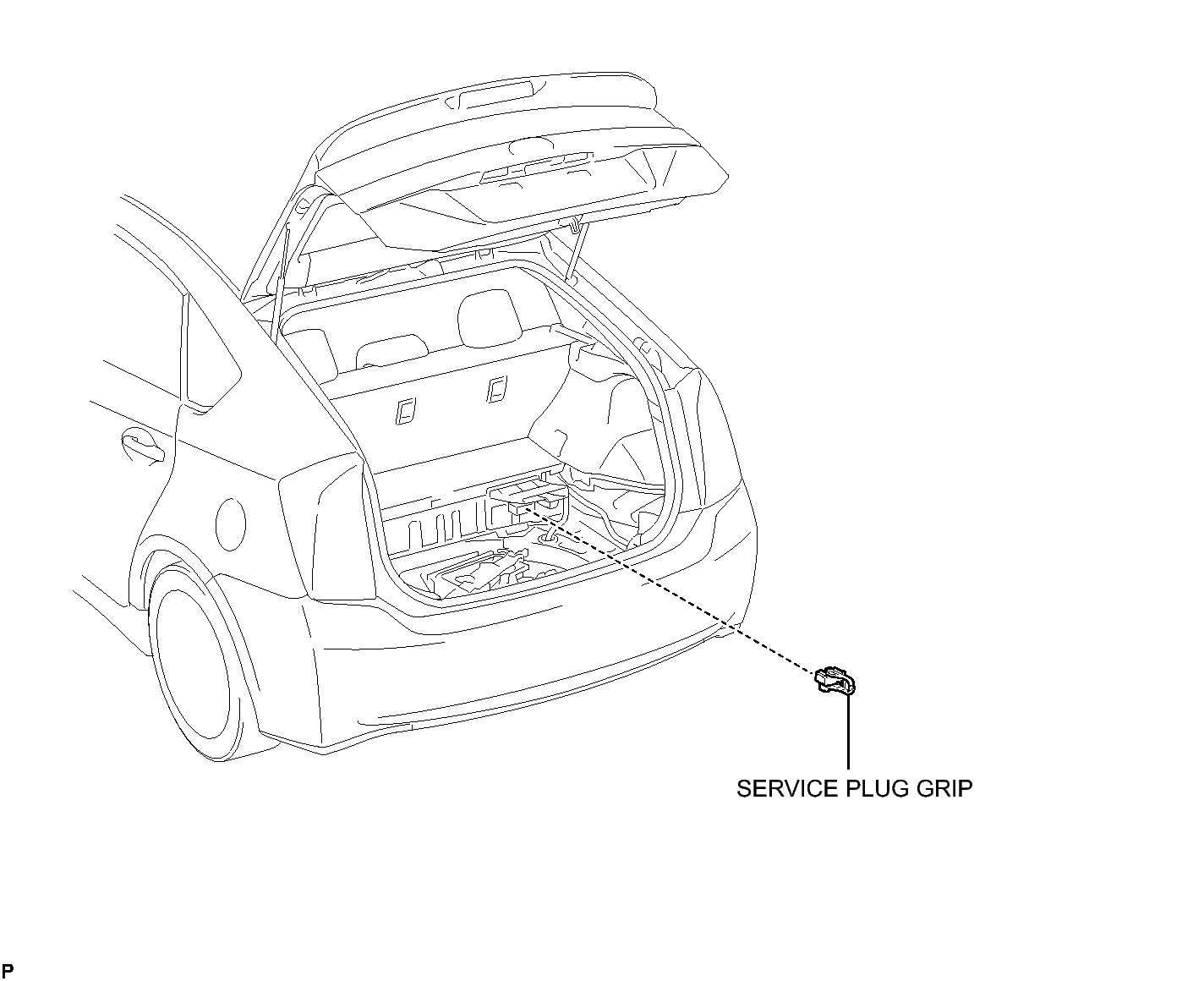

Fig 1: Identifying Generator Cable Replacement Components (1 Of 4)
GTY231018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

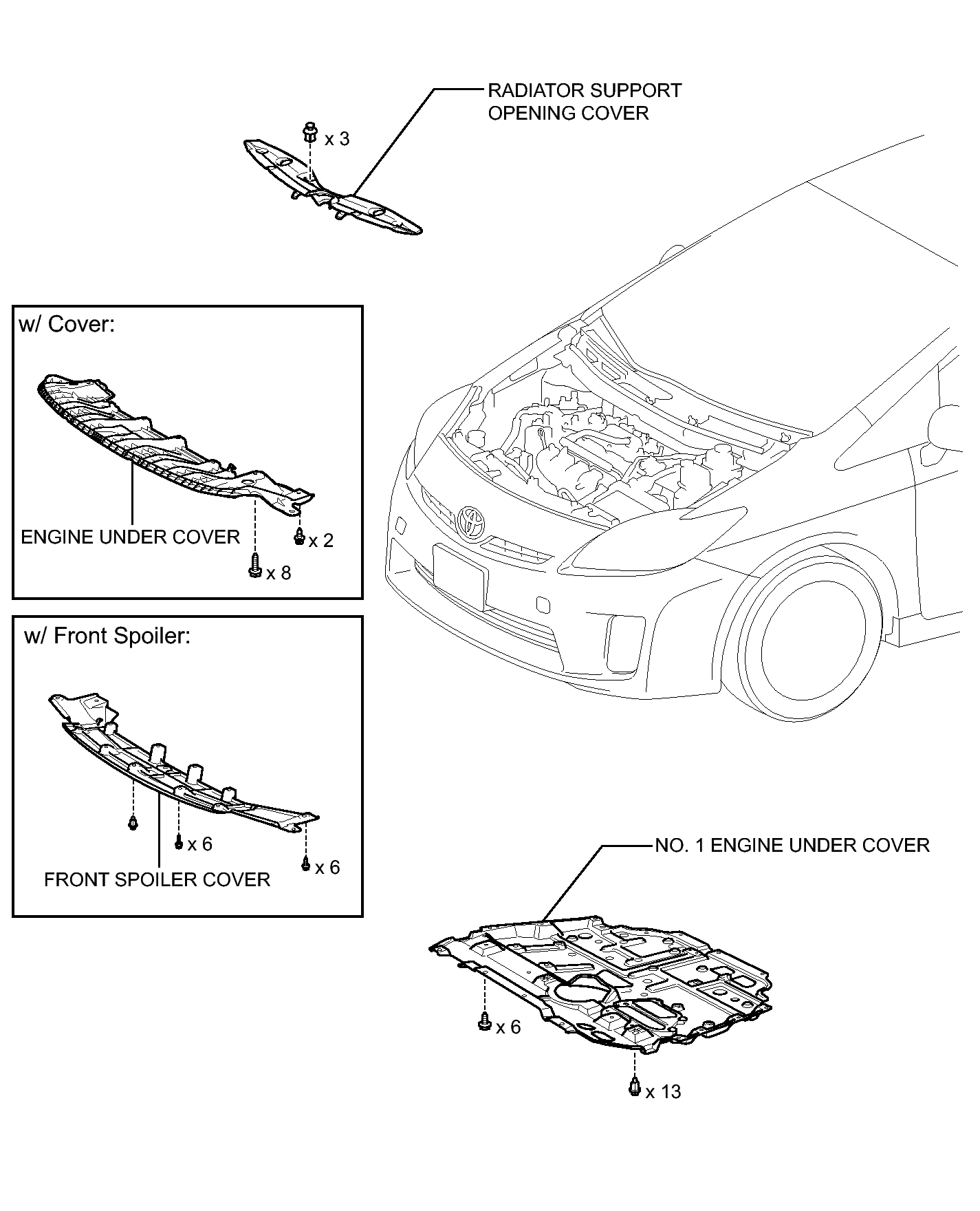

Fig 1: Identifying Generator Cable Replacement Components (2 Of 4)
GTY343202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

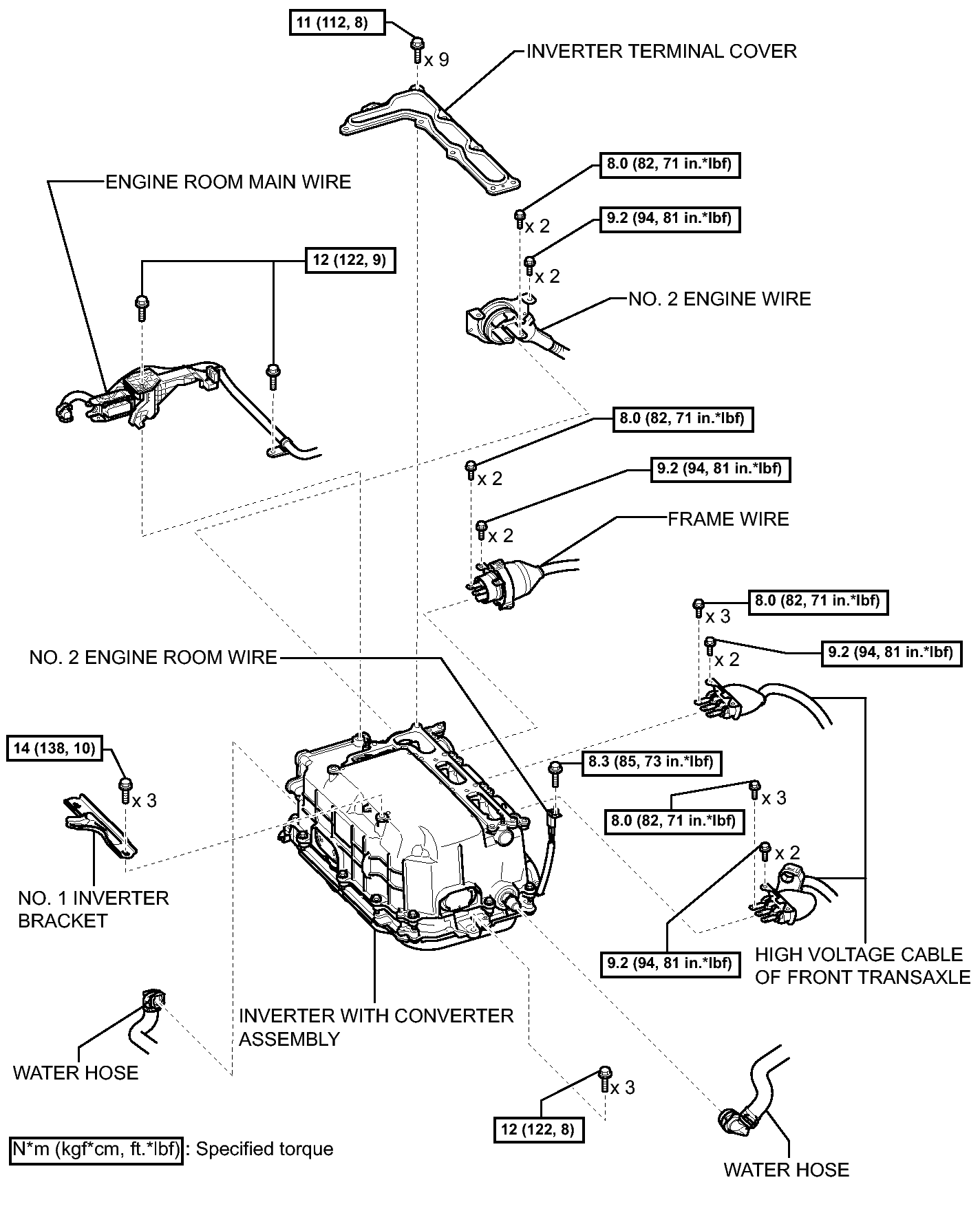

Fig 1: Identifying Generator Cable Replacement Components With Torque Specifications (3 Of 4)
GTY291262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

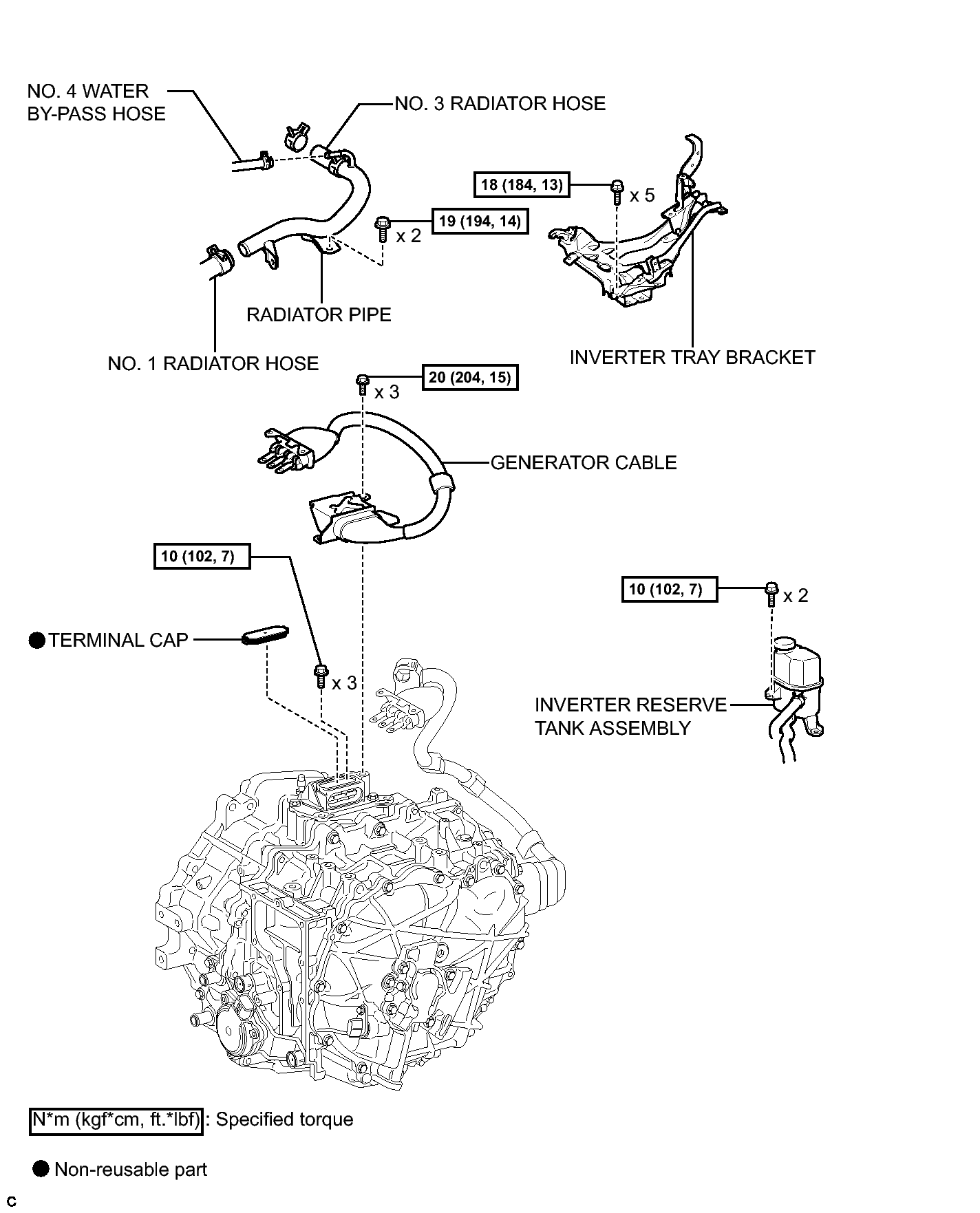

Fig 1: Identifying Generator Cable Replacement Components With Torque Specifications (4 Of 4)
GTY291399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
