Rear Wiper and Washer: Notes

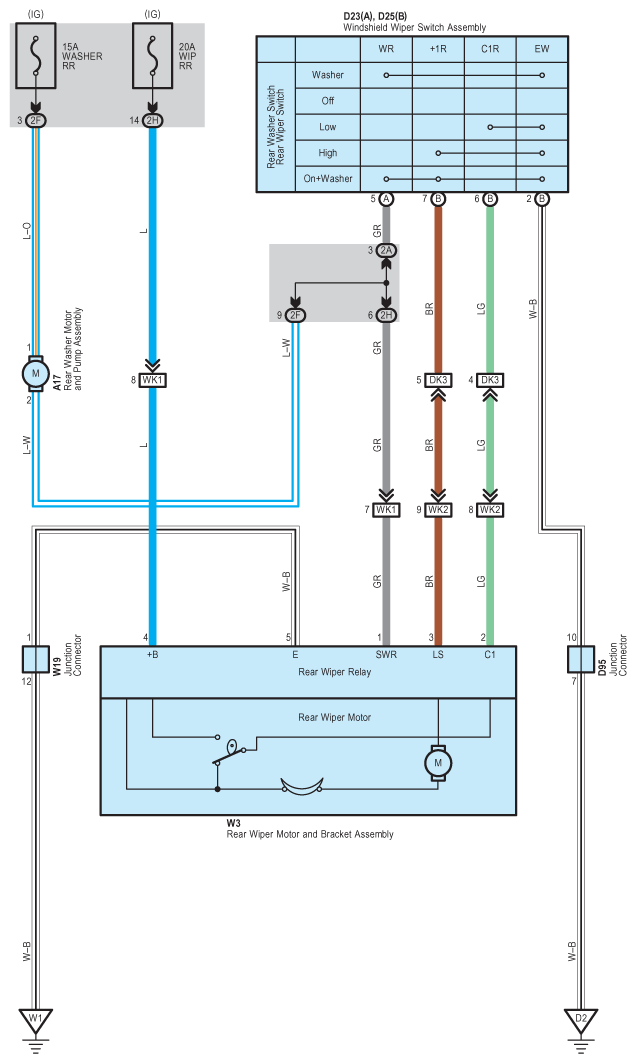

Fig 1: Rear Wiper And Washer System Wiring Diagram
G09111538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
