Parts Location: Illustration

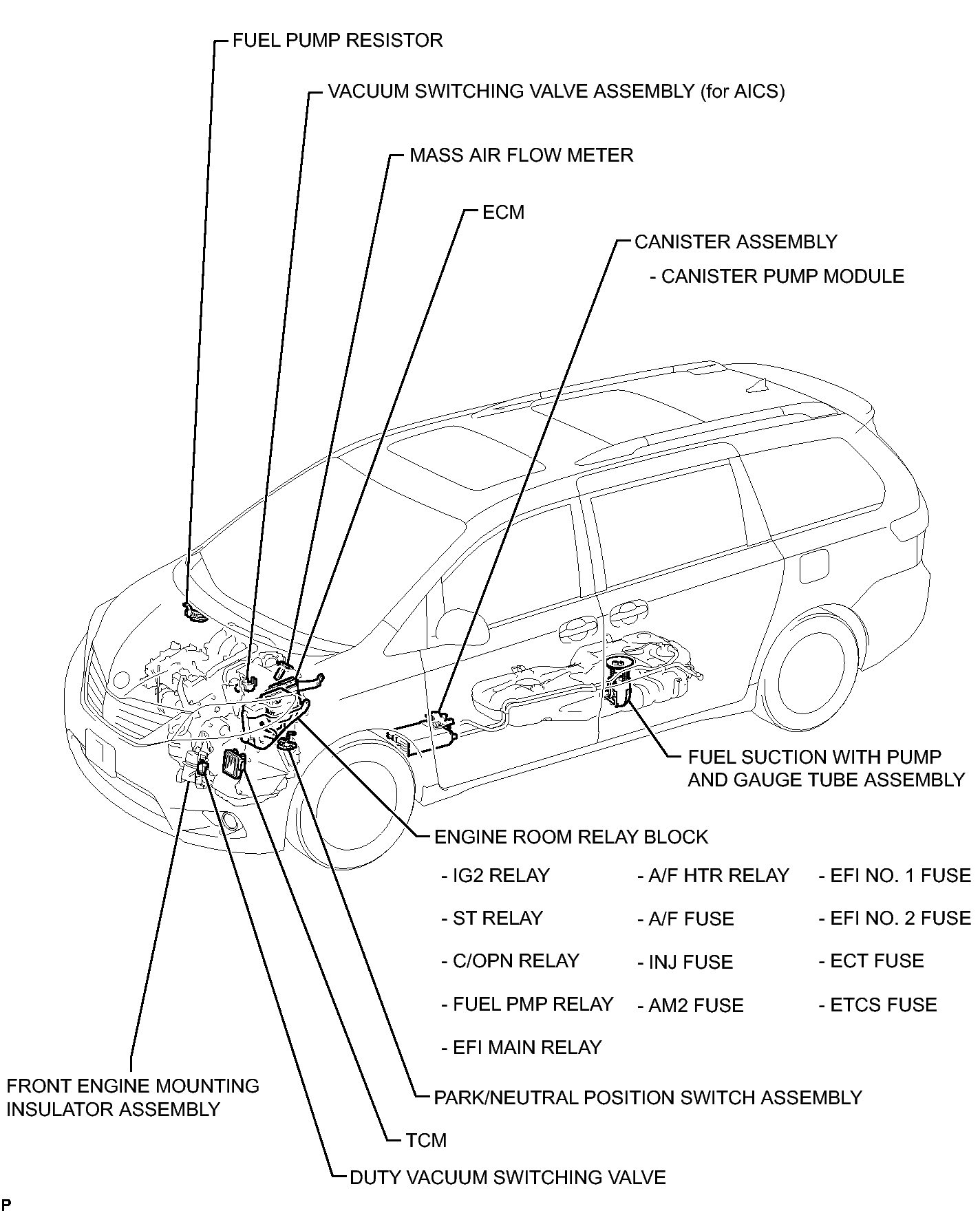

Fig 1: Engine Control System Components Location (1 Of 4)
GTY330972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

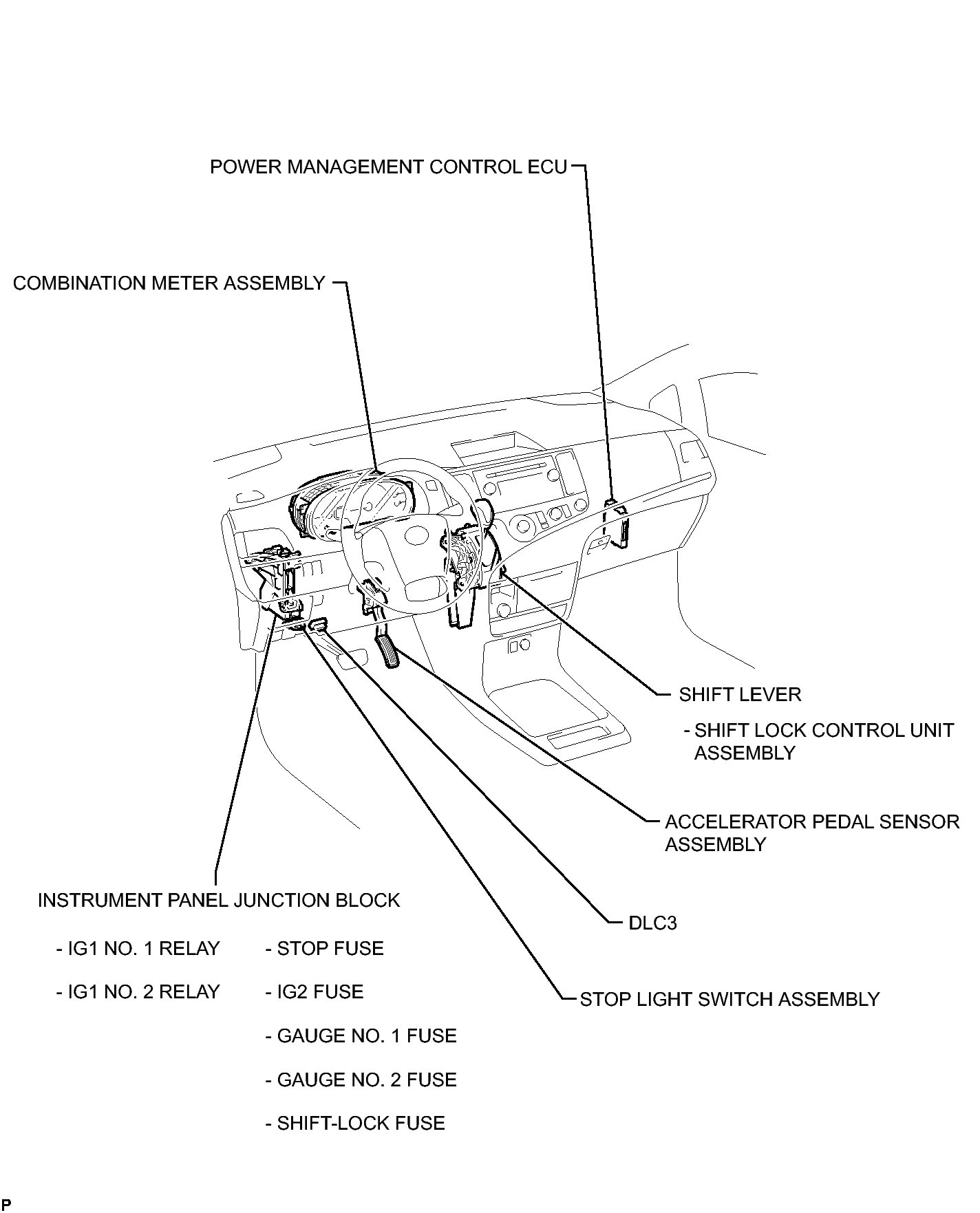

Fig 1: Engine Control System Components Location (2 Of 4)
GTY335993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

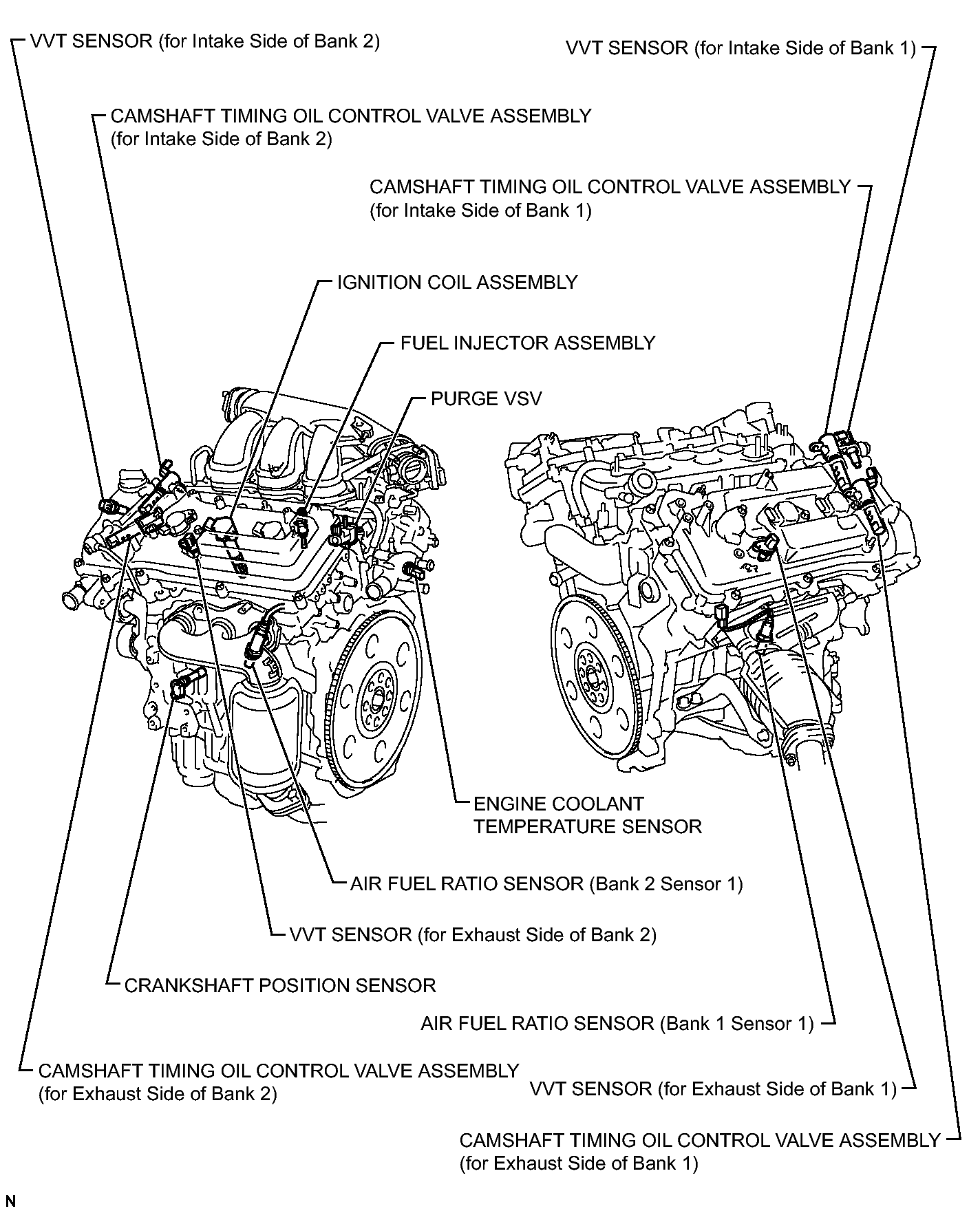

Fig 1: Engine Control System Components Location (3 Of 4)
GTY326777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

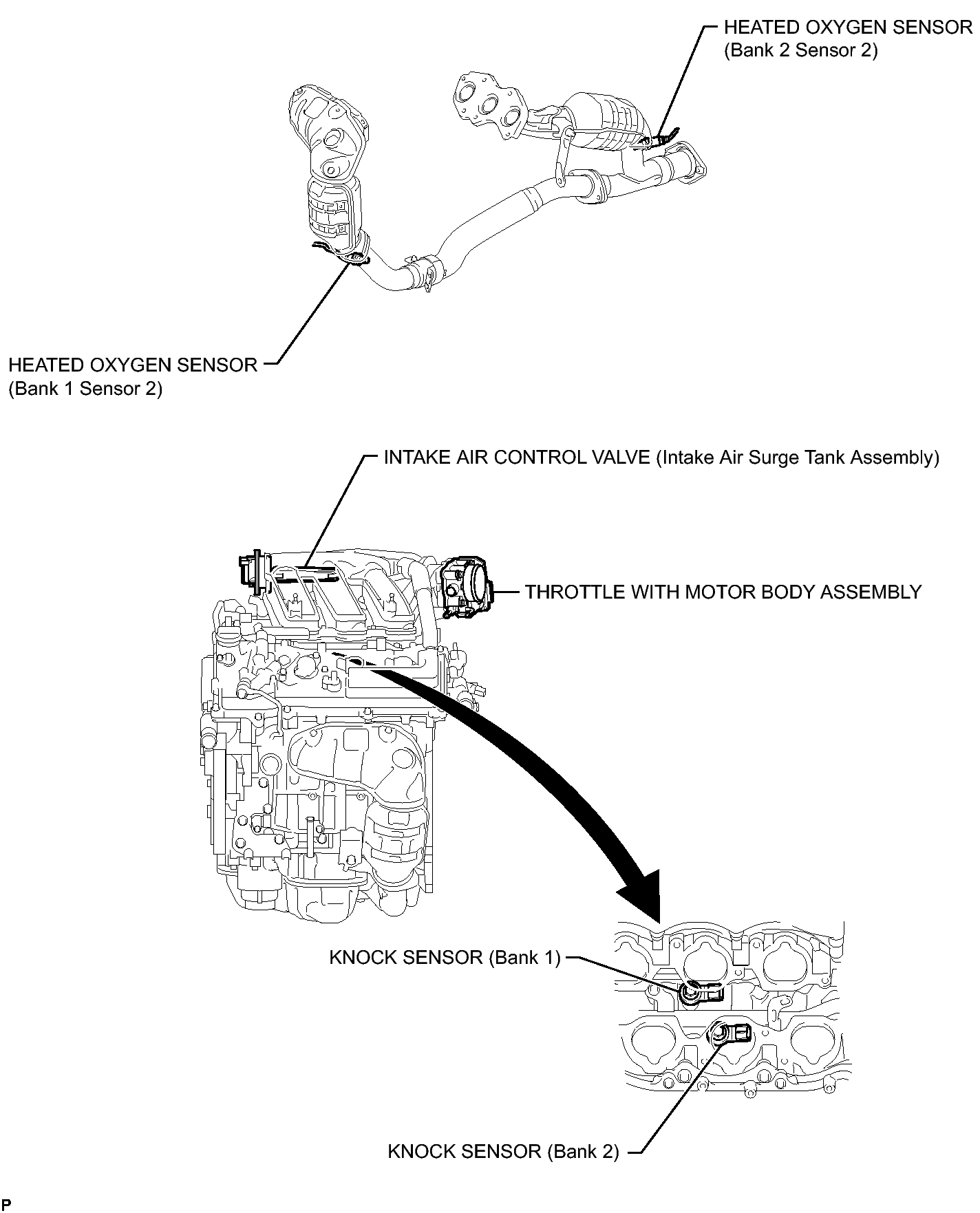

Fig 1: Engine Control System Components Location (4 Of 4)
GTY337320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
