Power Rear No. 2 Seat with Stowing Function: Notes

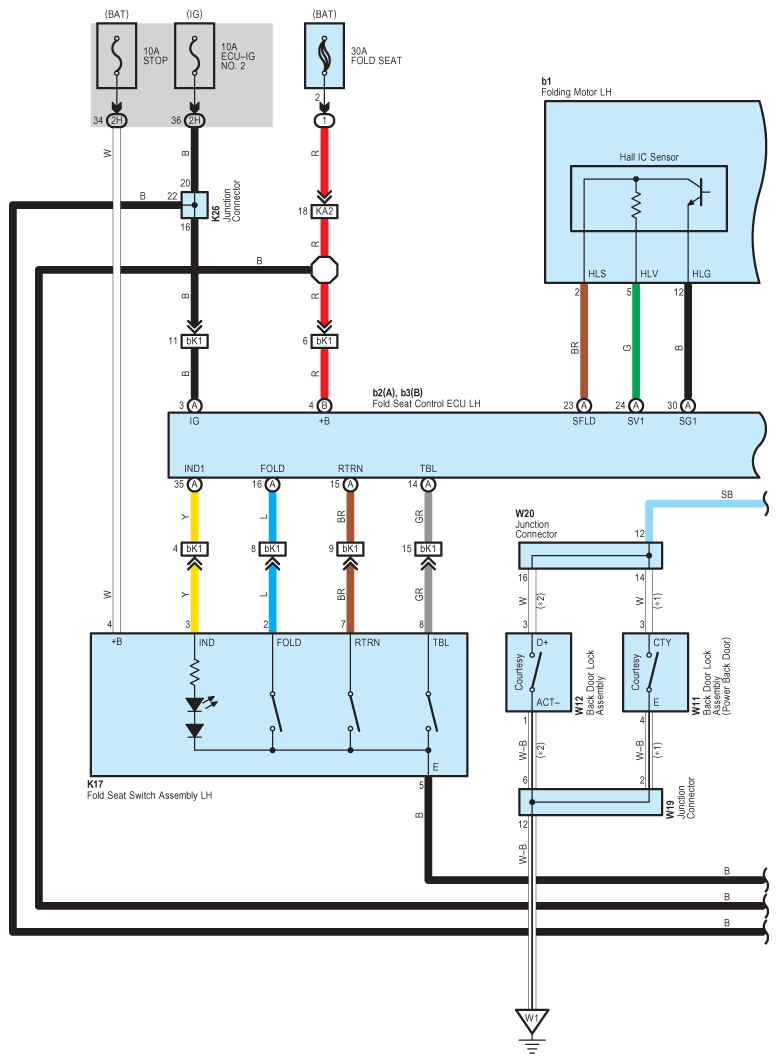

Fig 1: Power Rear No. 2 Seat With Stowing Function System Wiring Diagram (1 Of 5)
G09111664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

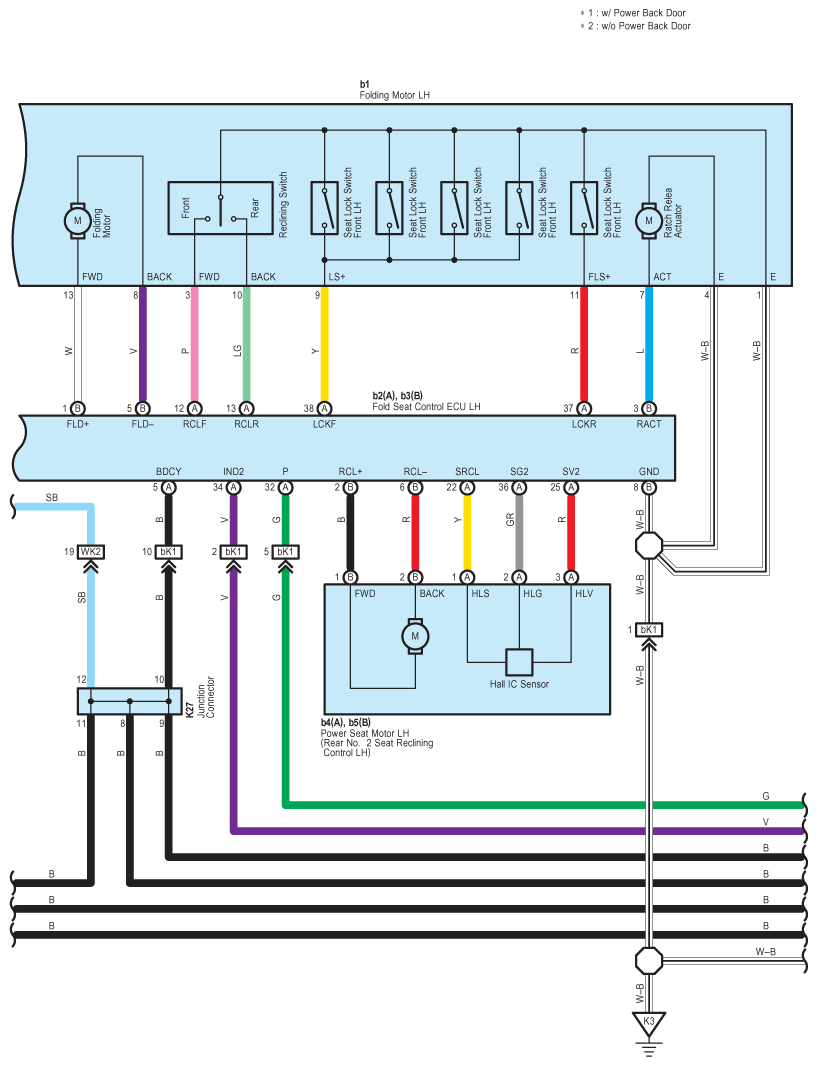

Fig 2: Power Rear No. 2 Seat With Stowing Function System Wiring Diagram (2 Of 5)
G09111665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

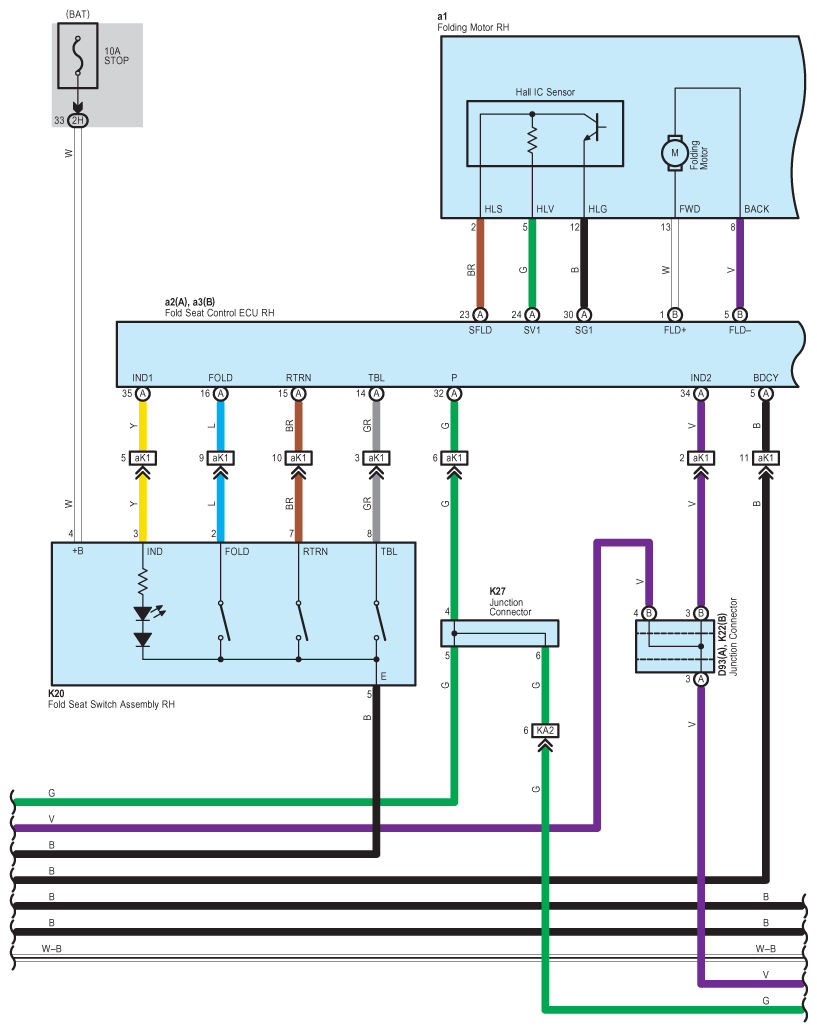

Fig 3: Power Rear No. 2 Seat With Stowing Function System Wiring Diagram (3 Of 5)
G09111666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

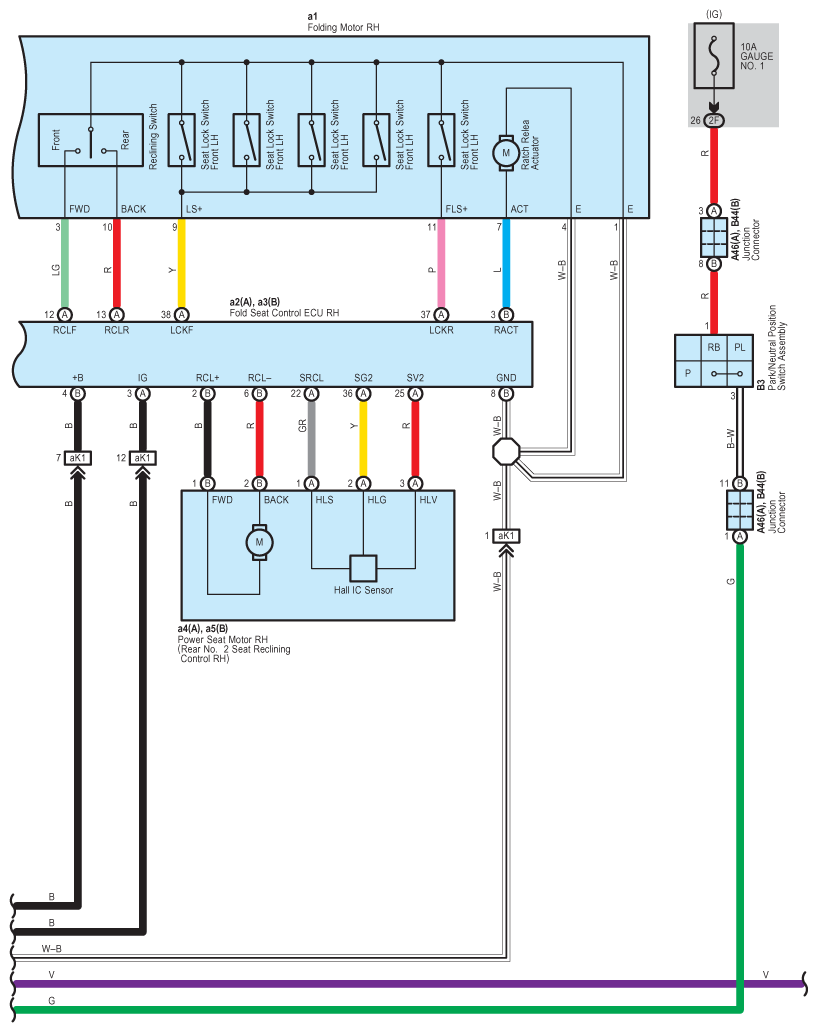

Fig 4: Power Rear No. 2 Seat With Stowing Function System Wiring Diagram (4 Of 5)
G09111667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

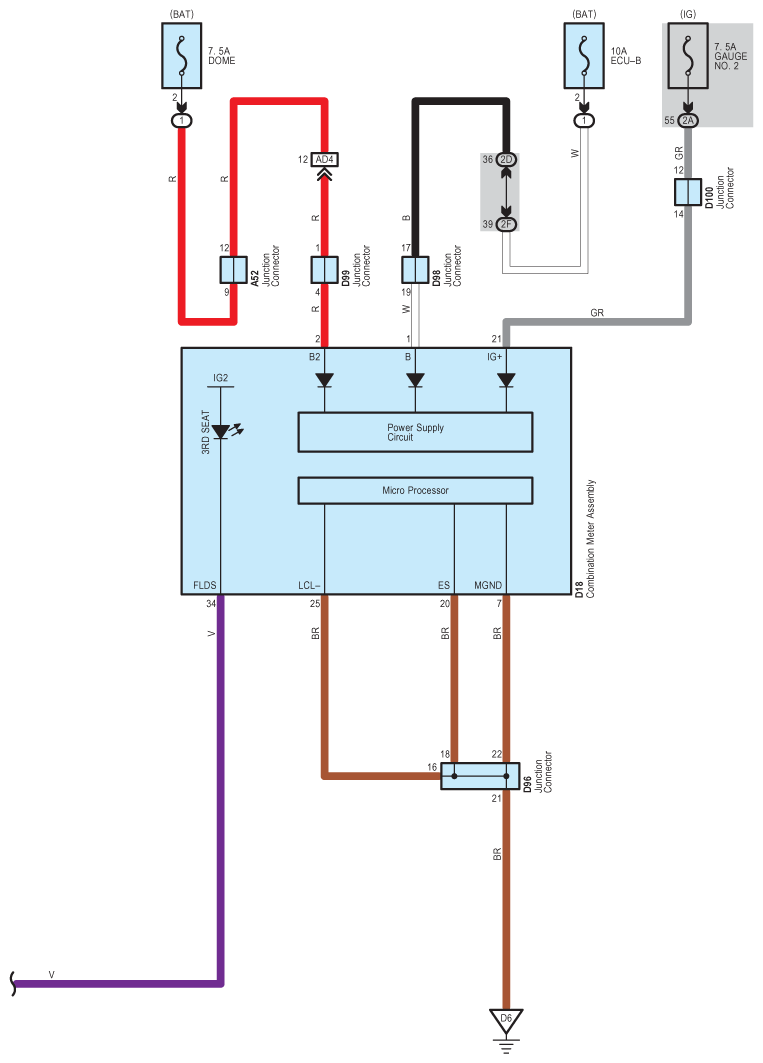

Fig 5: Power Rear No. 2 Seat With Stowing Function System Wiring Diagram (5 Of 5)
G09111668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
