Parts Location: Illustration

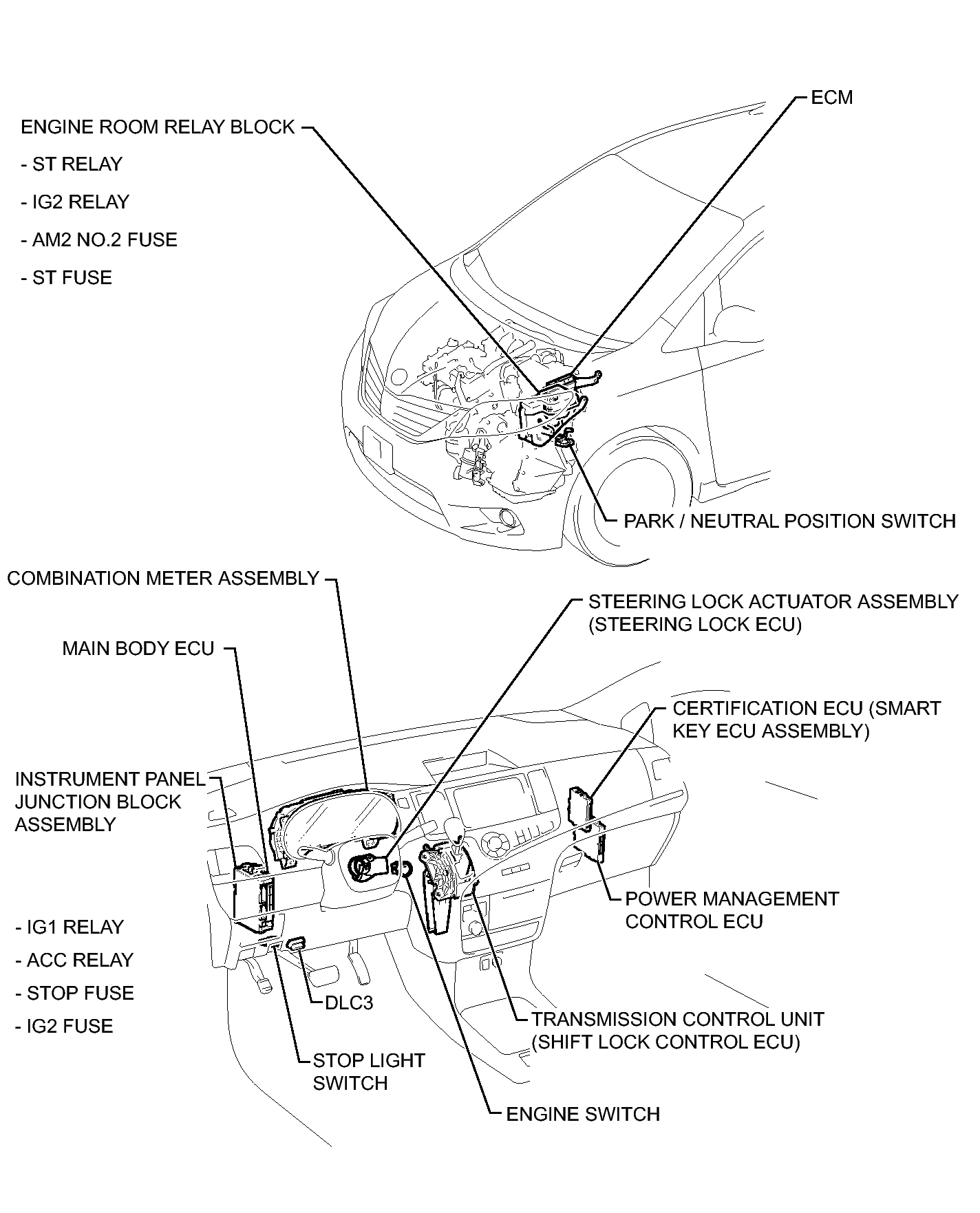

Fig 1: Identifying Smart Key System (For Start Function) Components Location
GTY299174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
