Parts Location: Illustration

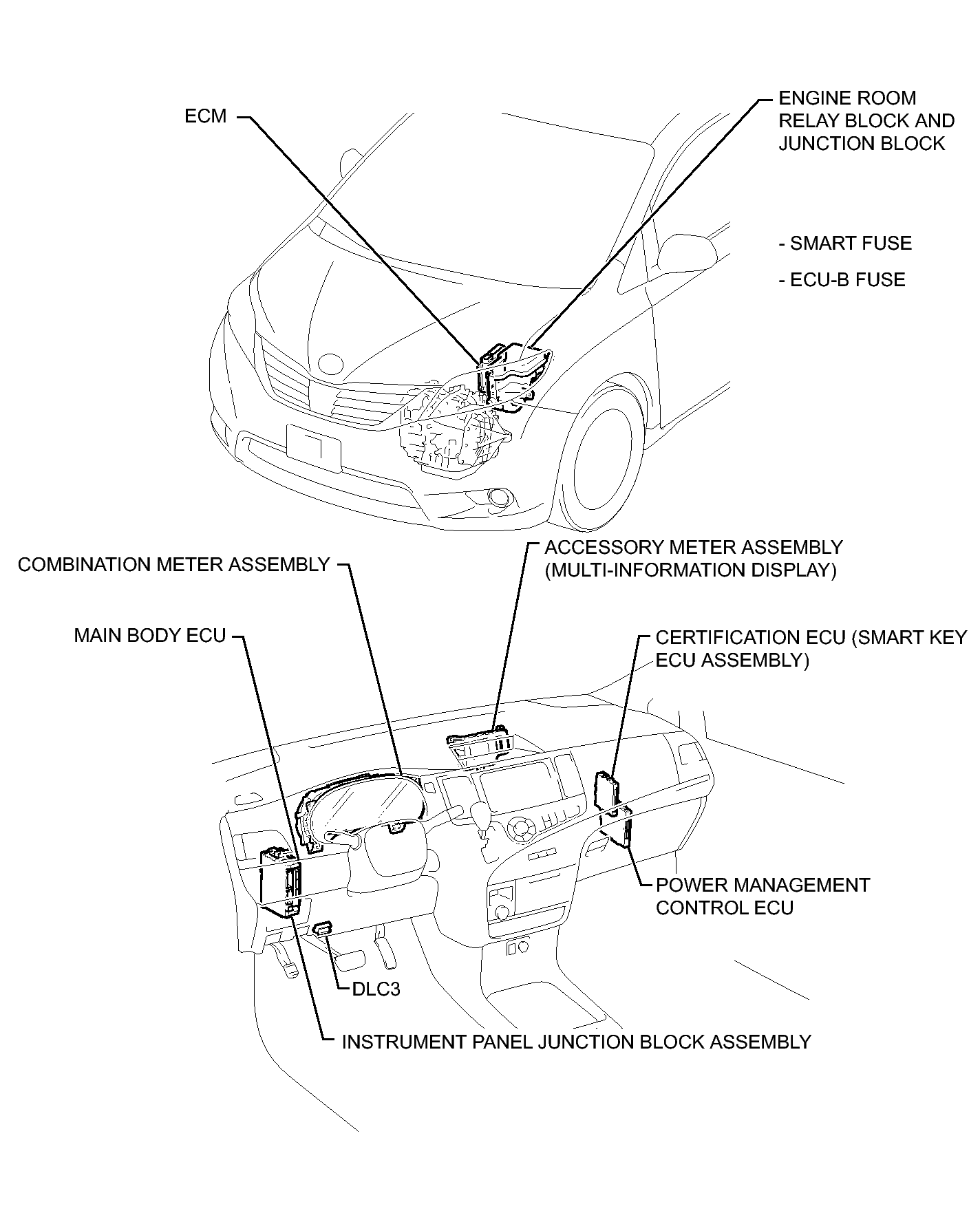

Fig 1: Identifying Smart Key System (For Entry Function) Components Location (1 Of 3)
GTY303076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

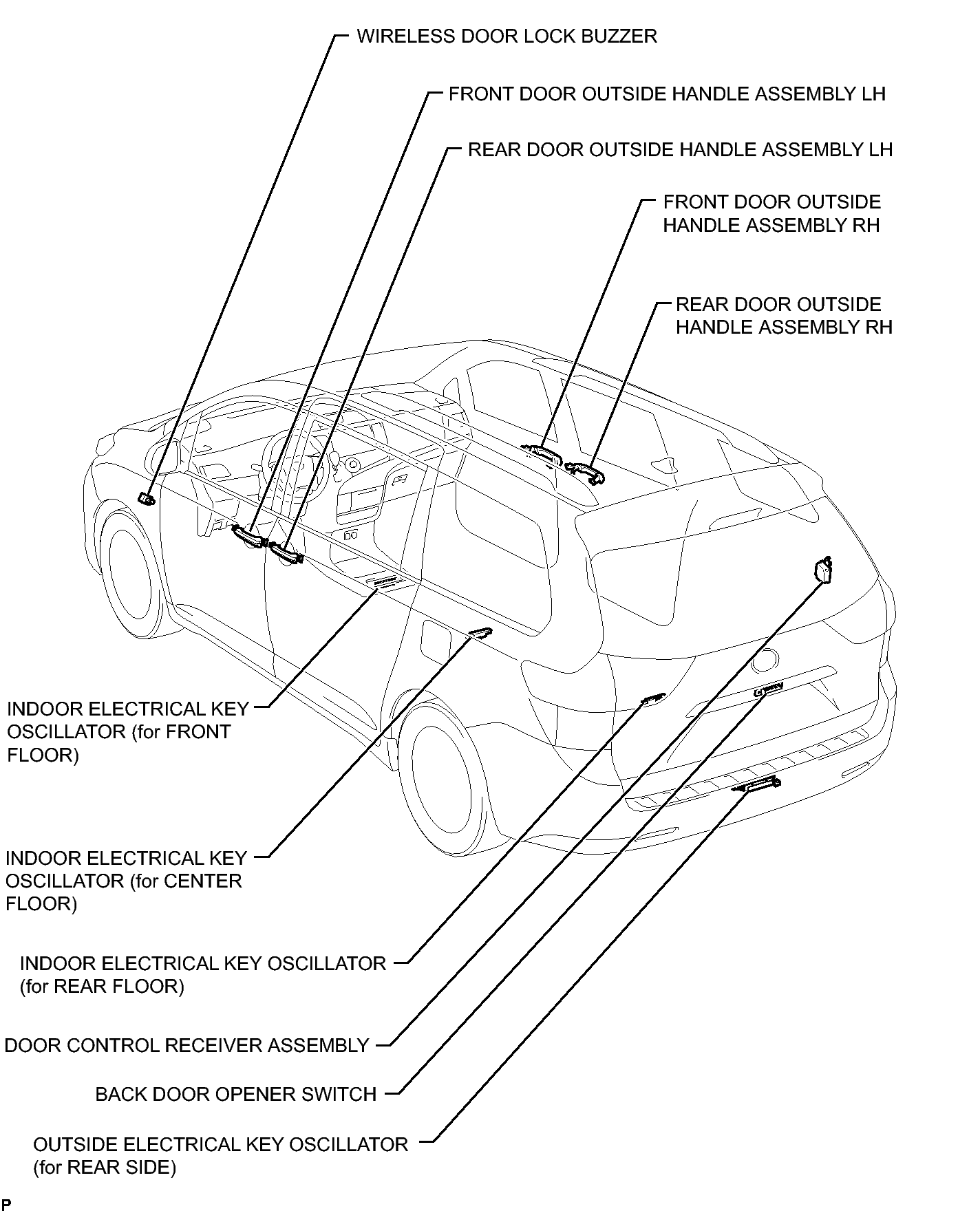

Fig 1: Identifying Smart Key System (For Entry Function) Components Location (2 Of 3)
GTY300486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

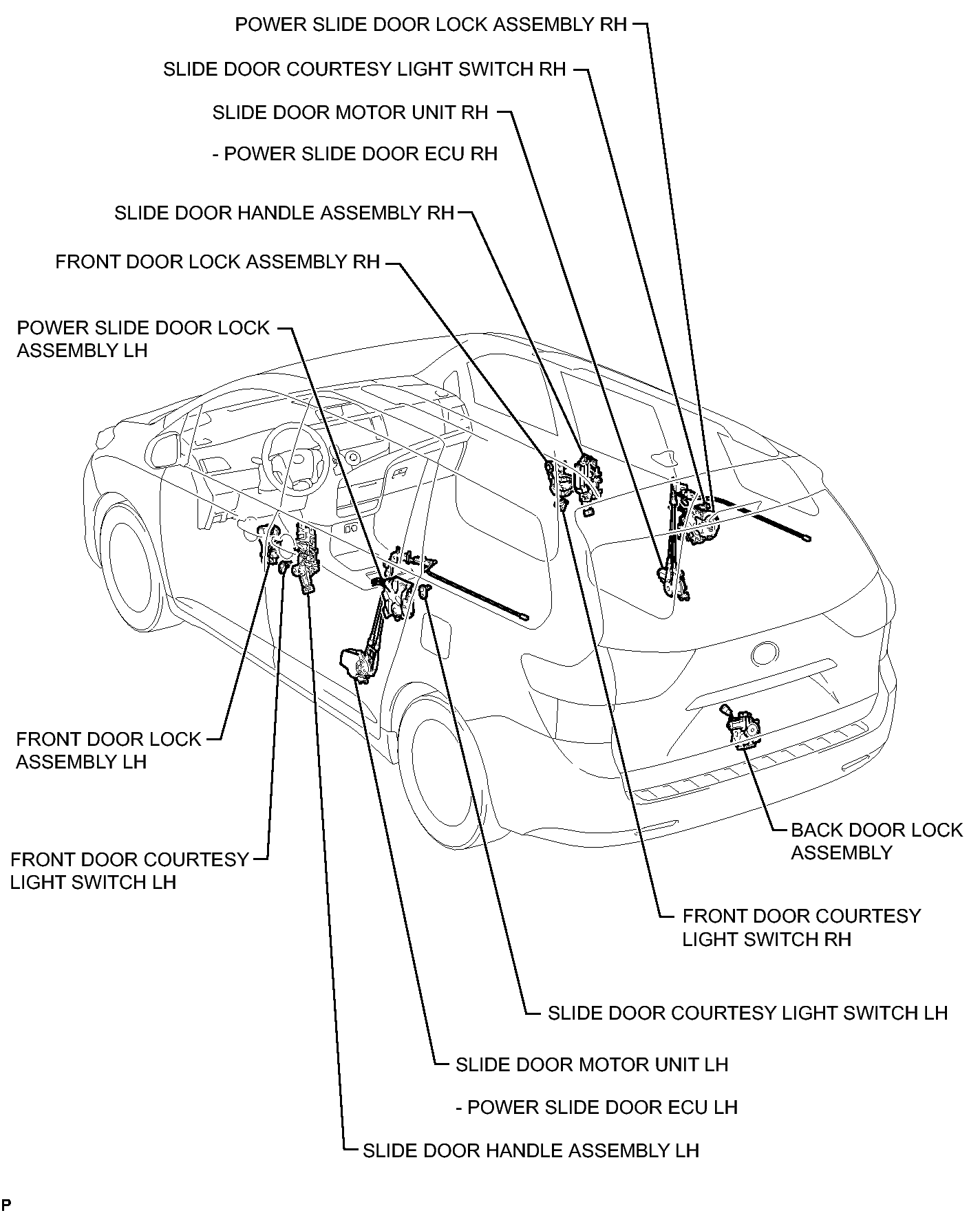

Fig 1: Identifying Smart Key System (For Entry Function) Components Location (3 Of 3)
GTY303942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
