Accelerator Pedal: Removal: Removal

  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    1. Disconnect the accelerator pedal sensor assembly connector.

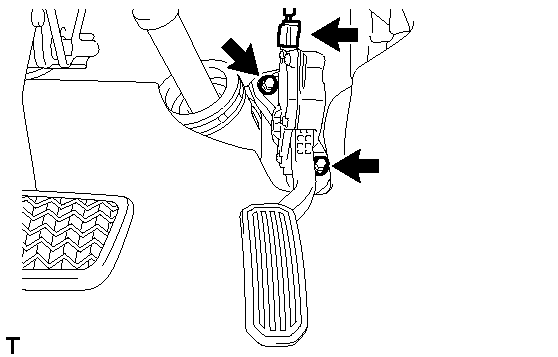

      Fig 1: Locating Accelerator Pedal Sensor Assembly Bolts And Connector
      GTY251277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and accelerator pedal sensor assembly.
      NOTE:
      • Avoid physical shocks to the accelerator pedal sensor assembly.
      • Do not disassemble the accelerator pedal sensor assembly.
