Ignition (1AR-FE): Notes

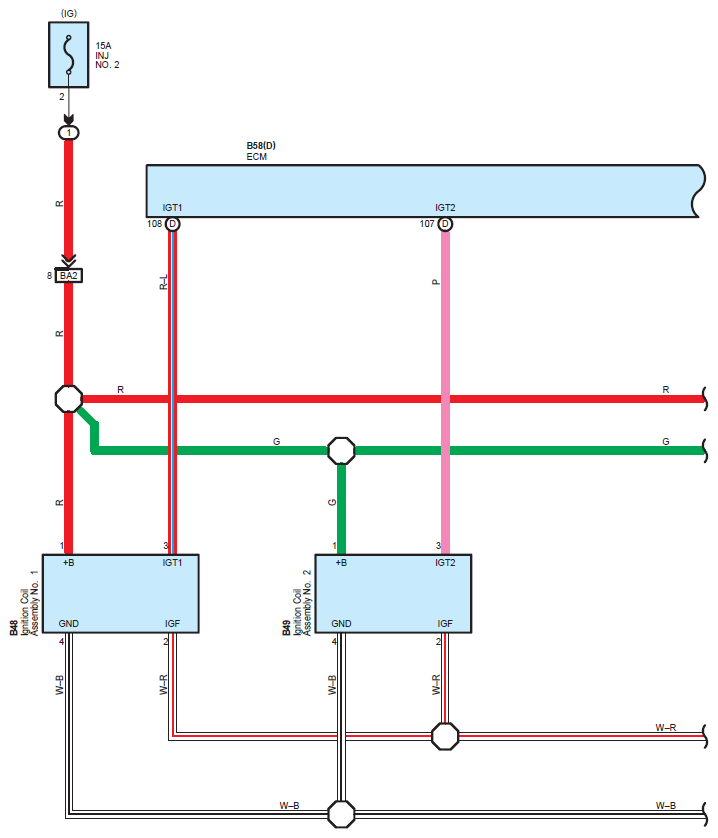

Fig 1: Ignition System Wiring Diagram (1AR-FE, 1 Of 2)
G09116582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

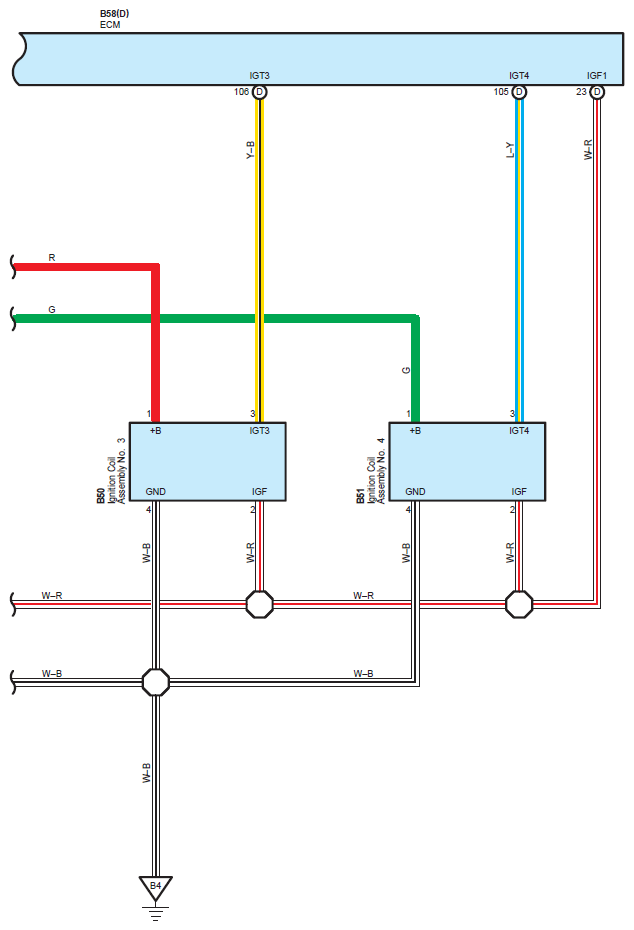

Fig 2: Ignition System Wiring Diagram (1AR-FE, 2 Of 2)
G09116583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
