Cooling Fan (H/B): Notes

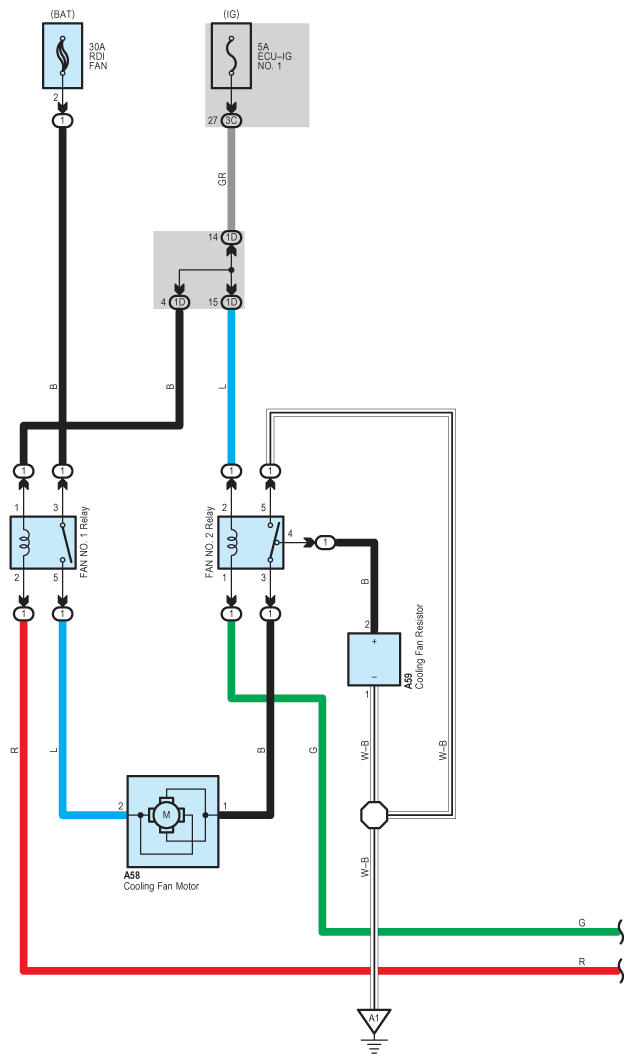

Fig 1: Cooling Fan (H/B) System Wiring Diagram (1 Of 2)
G09112669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

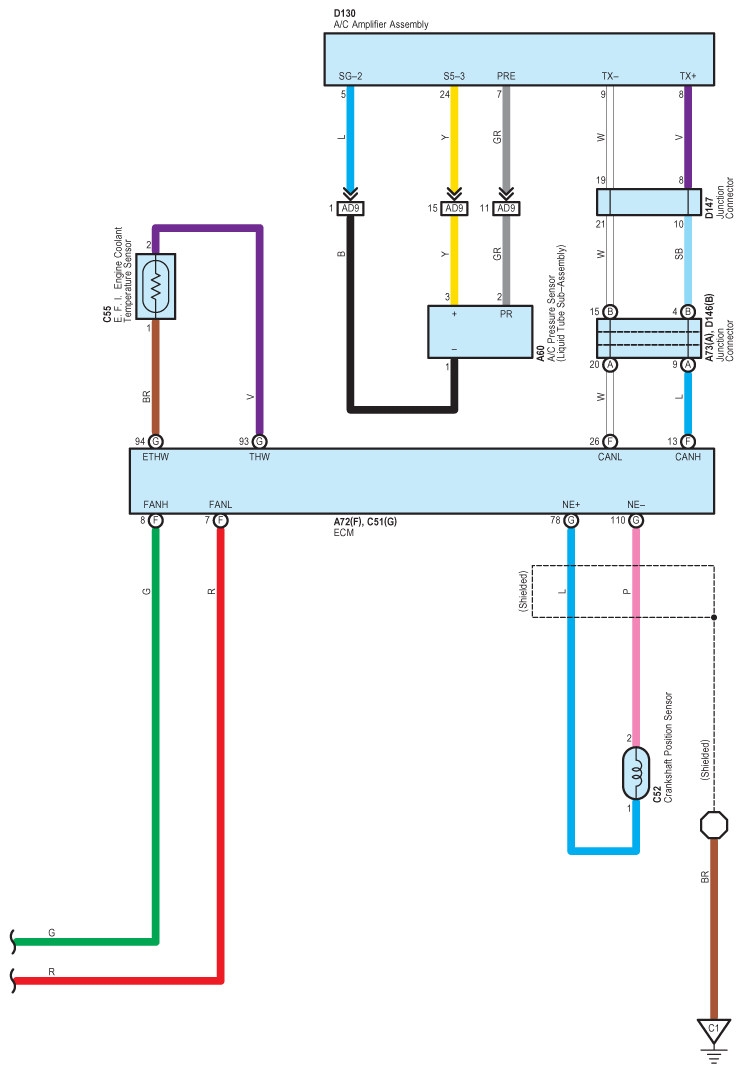

Fig 2: Cooling Fan (H/B) System Wiring Diagram (2 Of 2)
G09112670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
