INTEGRATION RELAY (for Sedan): Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE RELAY BLOCK COVER NO. 1
  3. REMOVE INTEGRATION RELAY

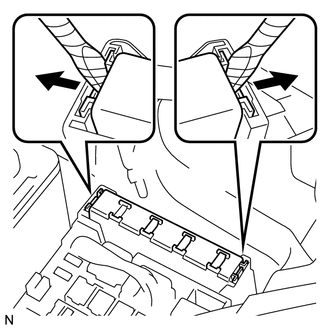

    Fig 1: Disconnecting Integration Relay
    GTY222147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.
    2. Disconnect the 3 connectors.
