DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [10/2013 - ]: Wiring Diagram

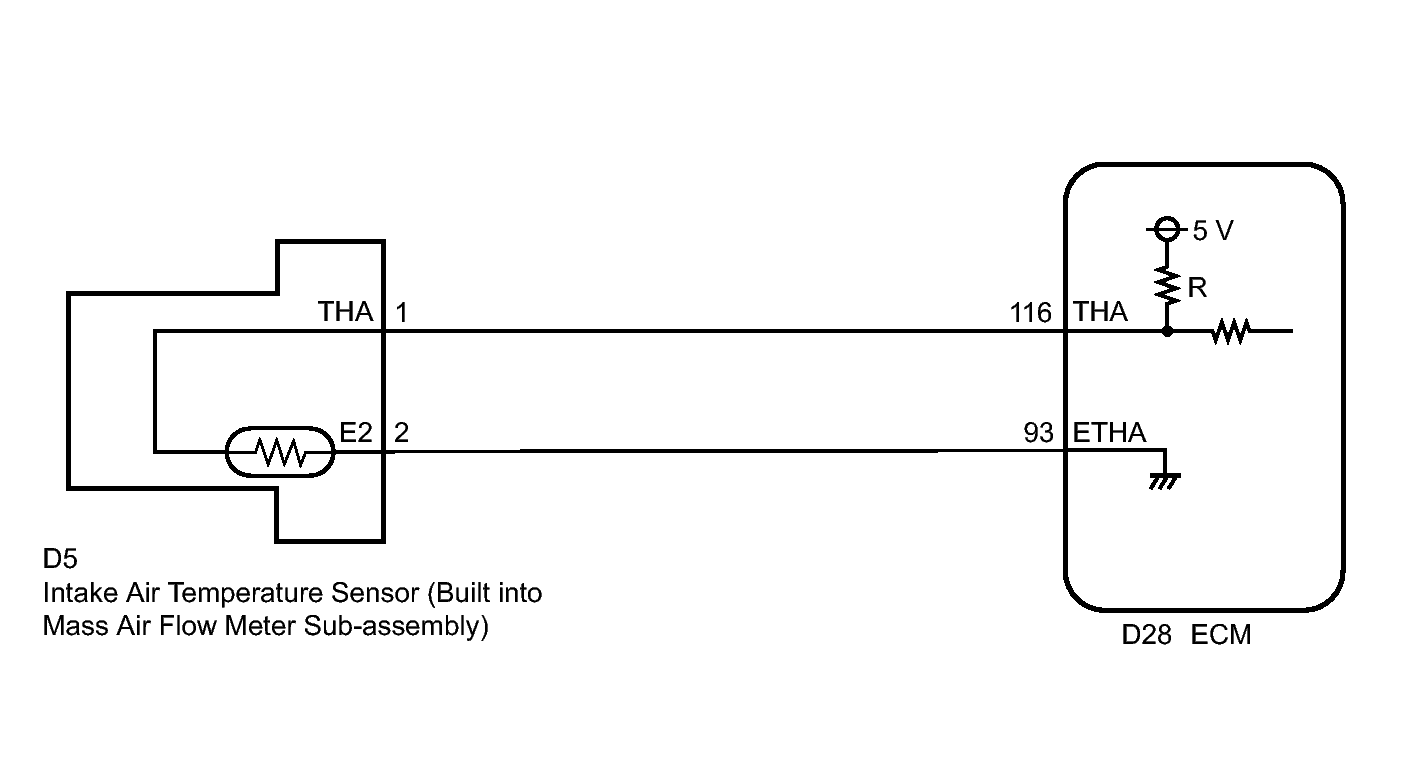

Fig 1: Identifying Intake Air Temperature Sensor Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
