Headlight Assembly LH Connector End View (A80)

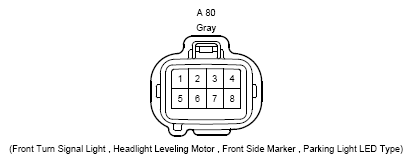

Fig 1: Headlight Assembly LH Connector End View (A80)
G10348914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
