In-line Connector End View (RX1)

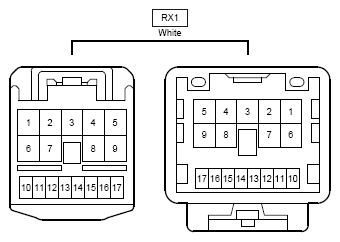

Fig 1: In-line Connector End View (RX1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
