Sliding Roof: Connectors

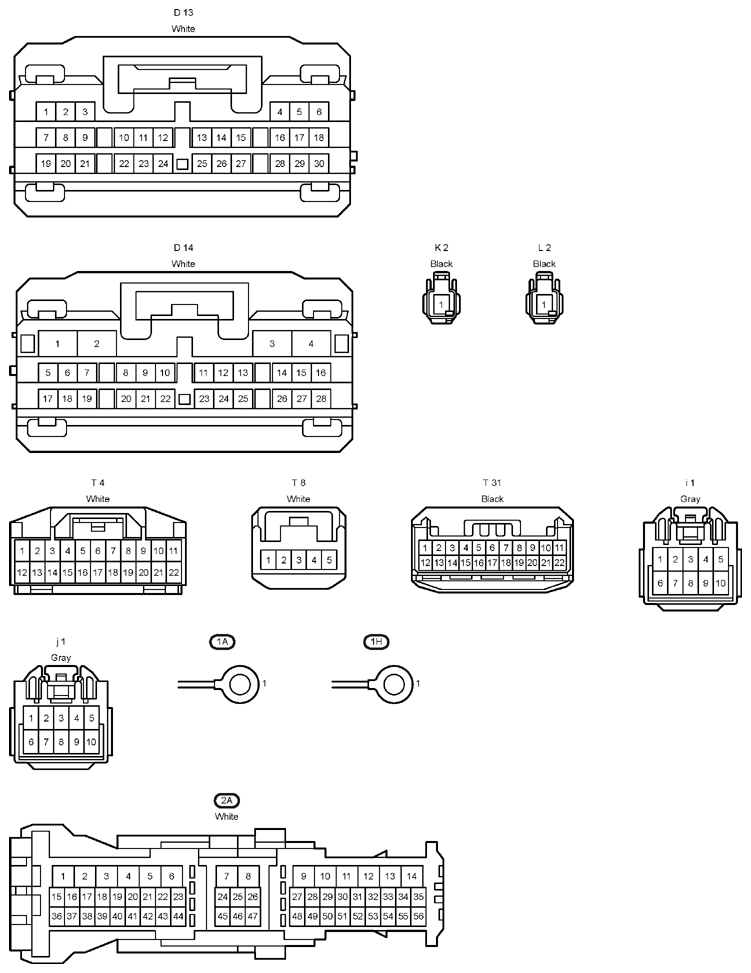

Fig 1: Connectors (1 Of 3)
G12221827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

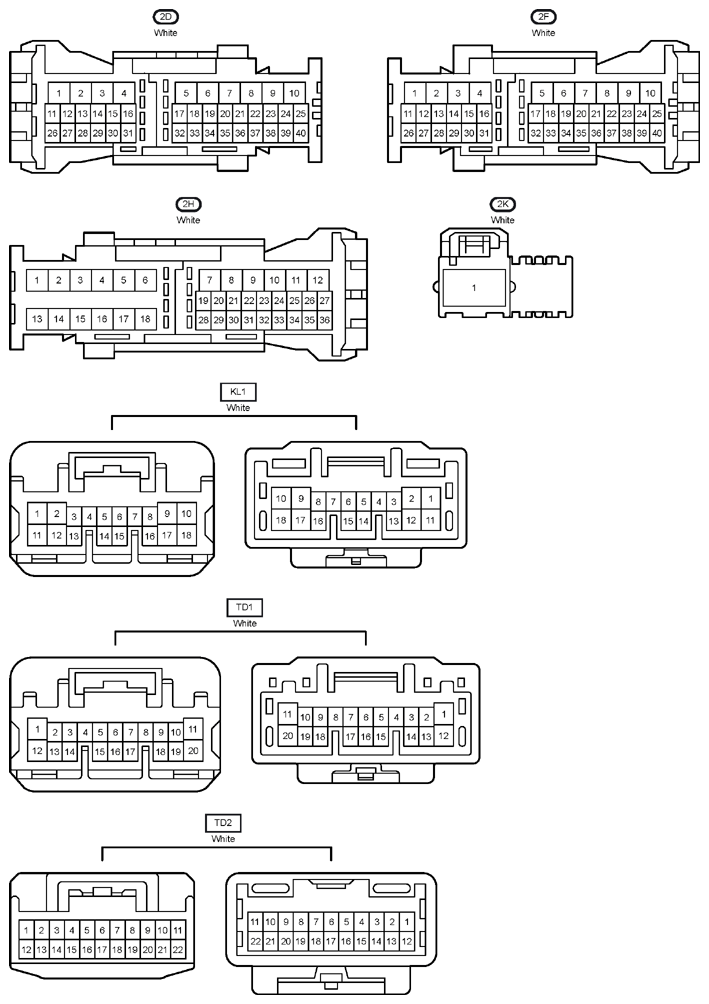

Fig 2: Connectors (2 Of 3)
G12221828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

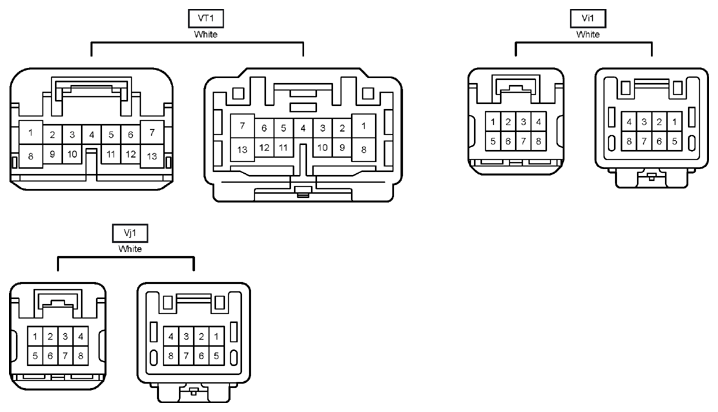

Fig 3: Connectors (3 Of 3)
G12221829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
