Components [12/2015 - 11/2017]

Fig 1: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY738716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

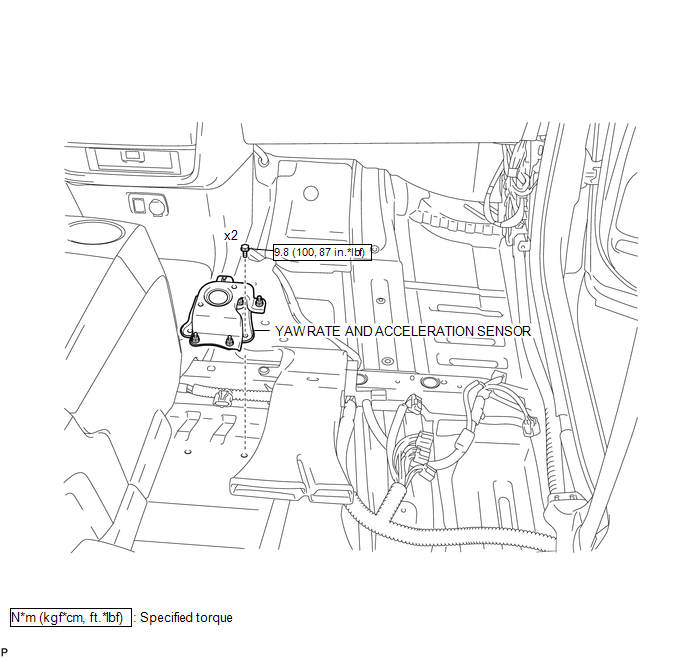

Fig 2: Yaw Rate And Acceleration Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY694120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
