System Diagrams

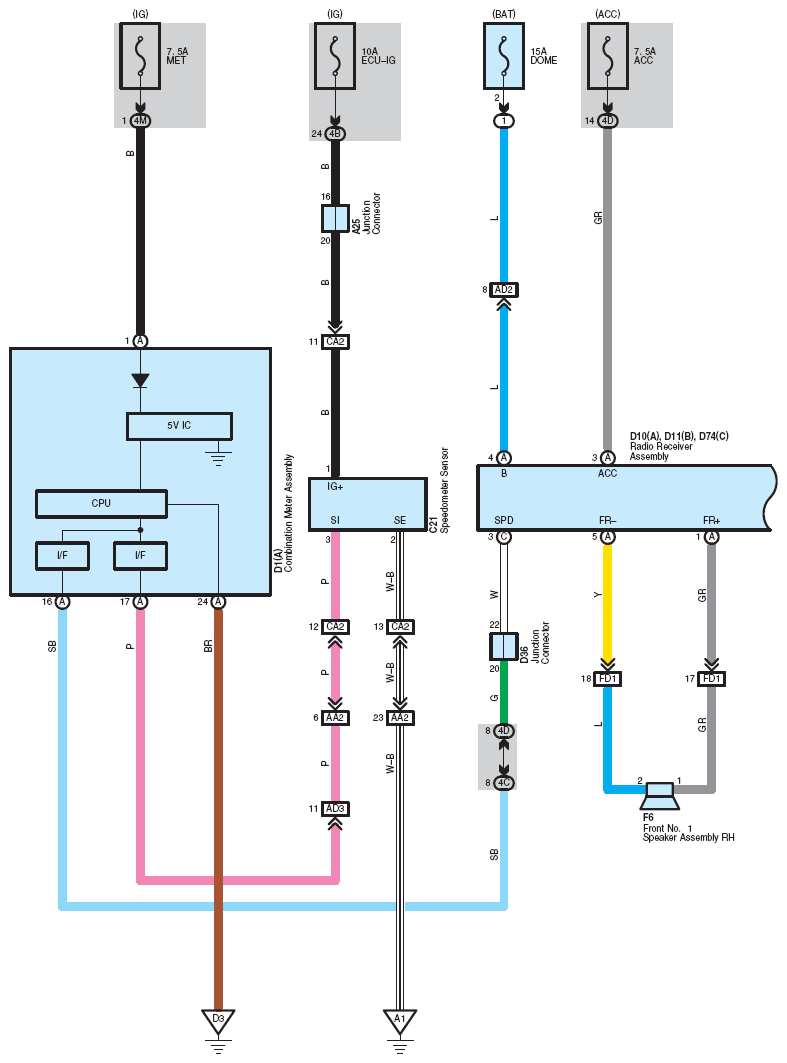

Fig 1: Audio System - Sedan (1 Of 2)

G12219883

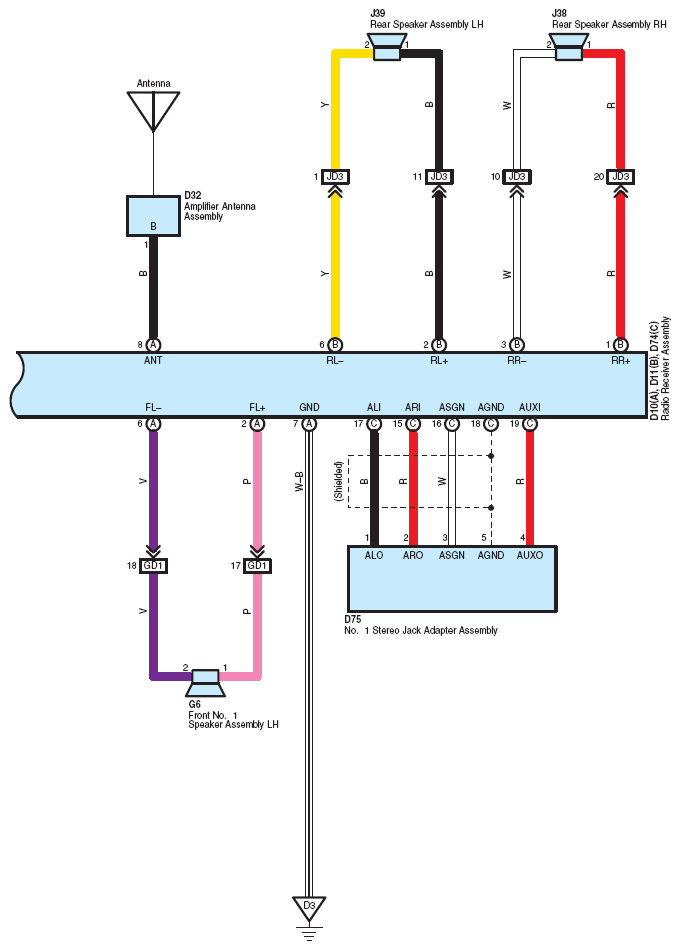

Fig 2: Audio System - Sedan (2 Of 2)

G12219884
