System Diagrams

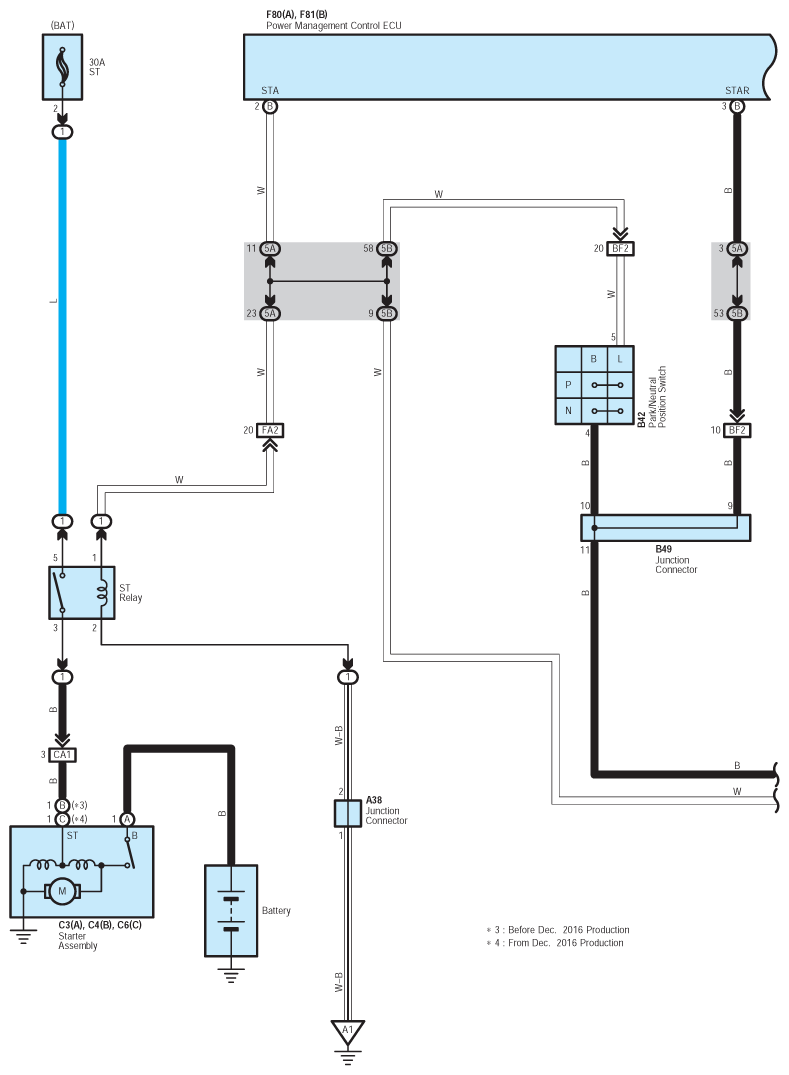

Fig 1: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (1 Of 20)
G12198612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

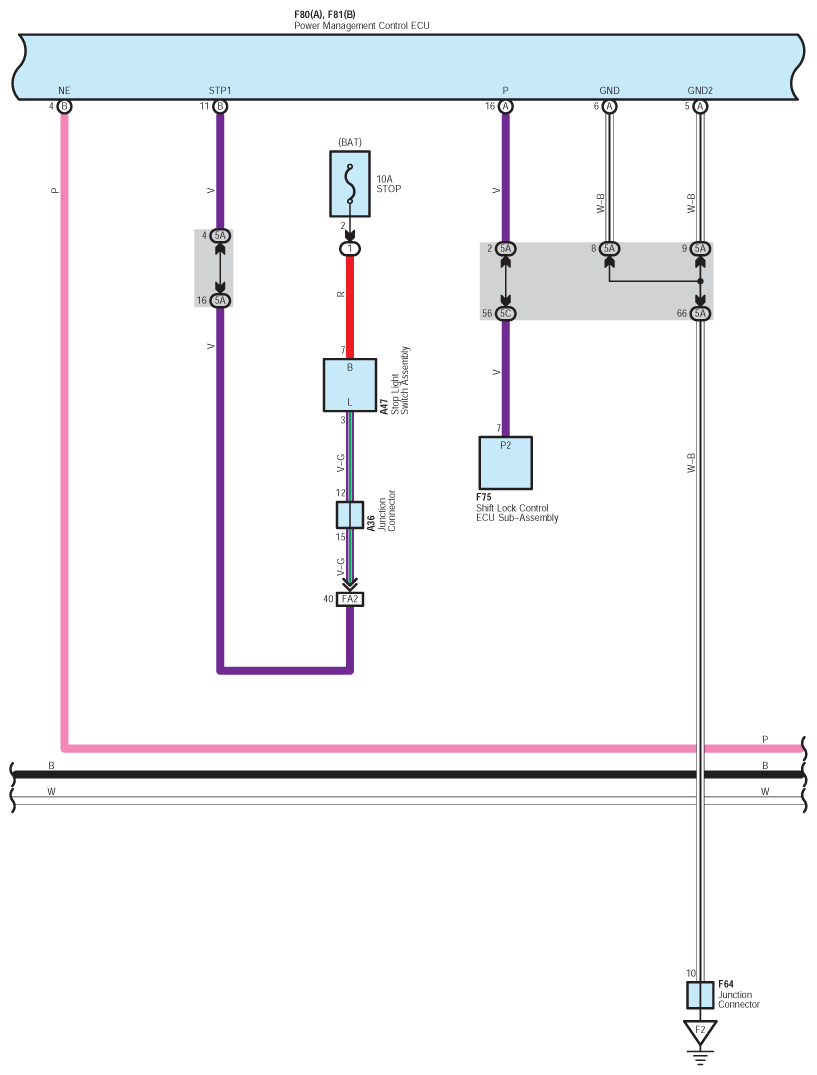

Fig 2: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (2 Of 20)
G12198613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

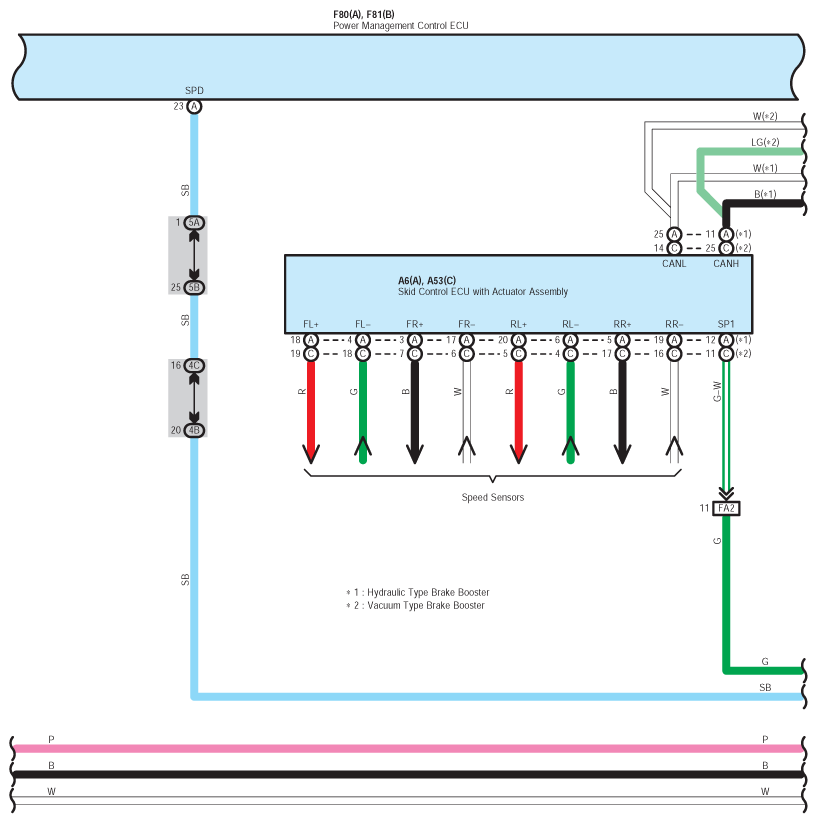

Fig 3: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (3 Of 20)
G12198614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

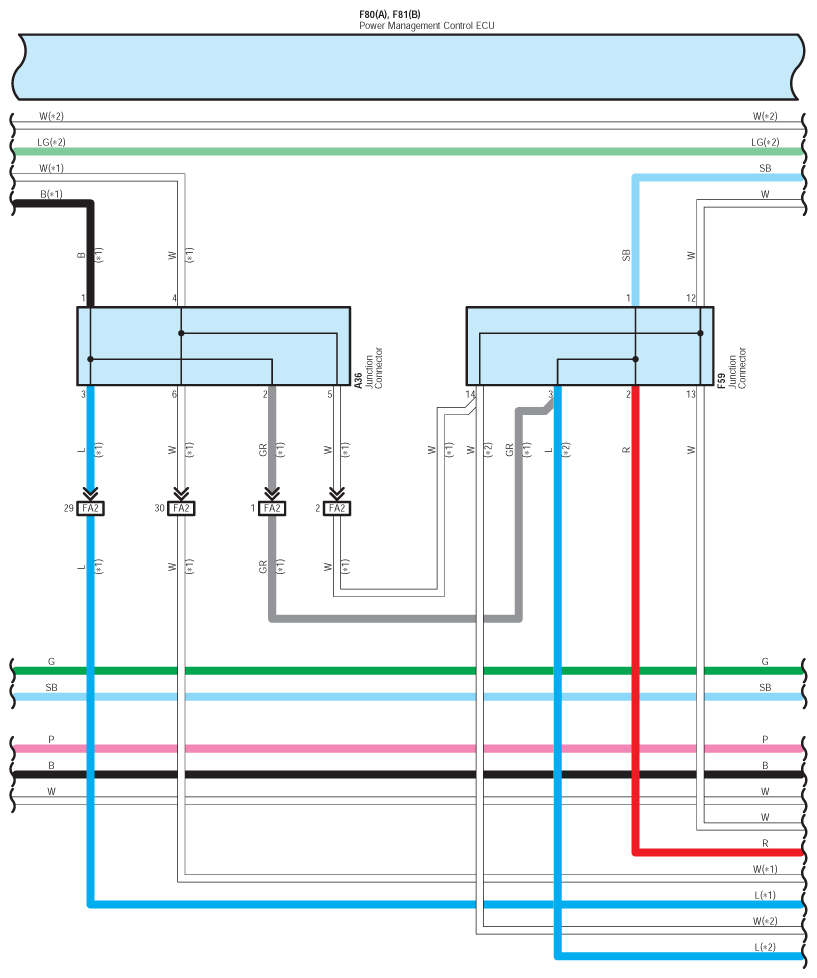

Fig 4: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (4 Of 20)
G12198615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

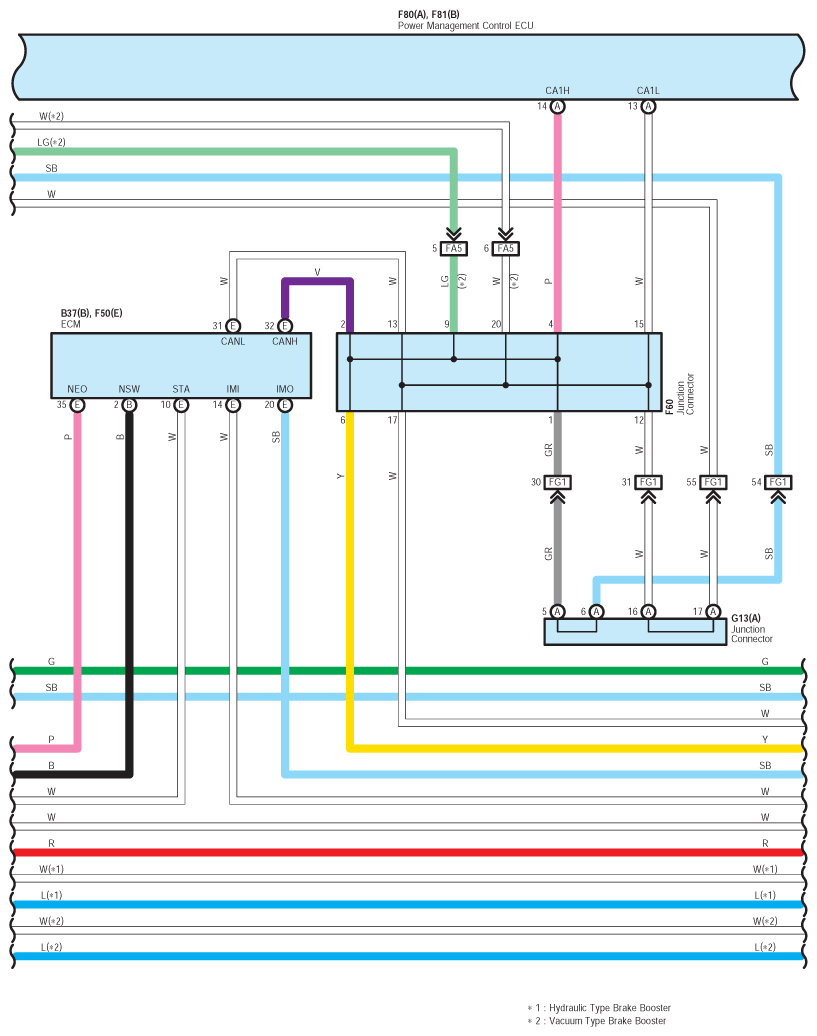

Fig 5: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (5 Of 20)
G12198616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

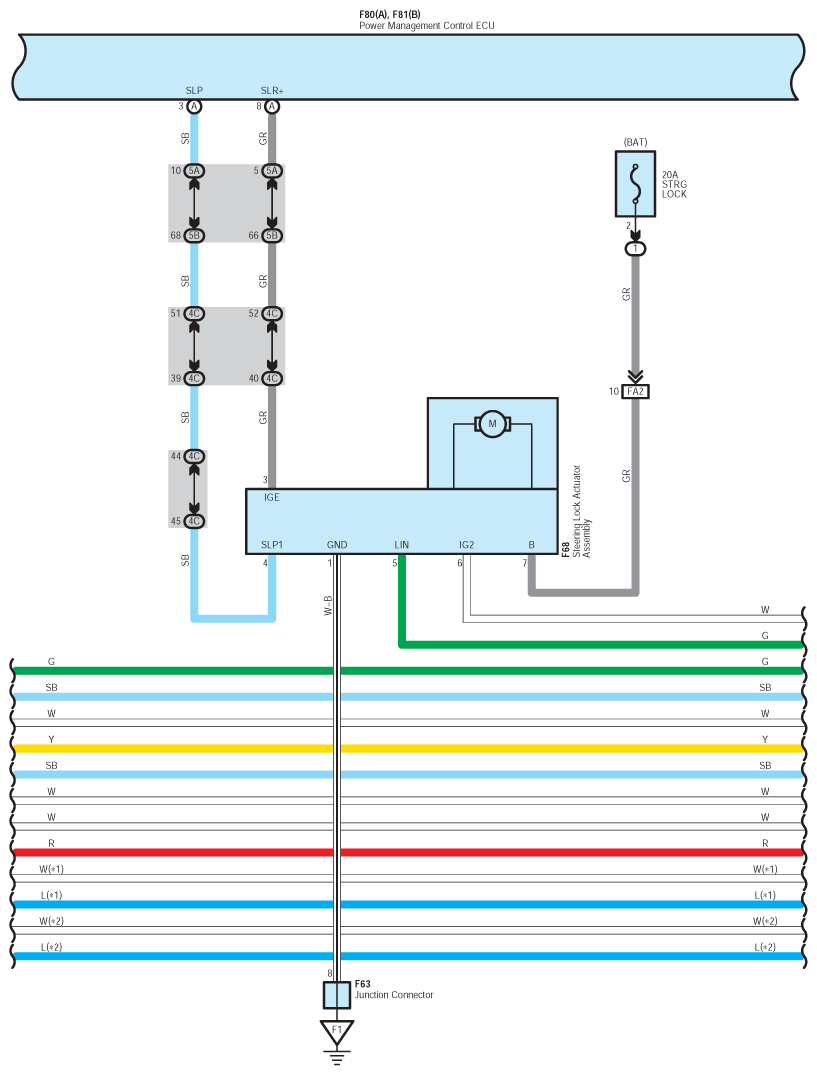

Fig 6: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (6 Of 20)
G12198617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

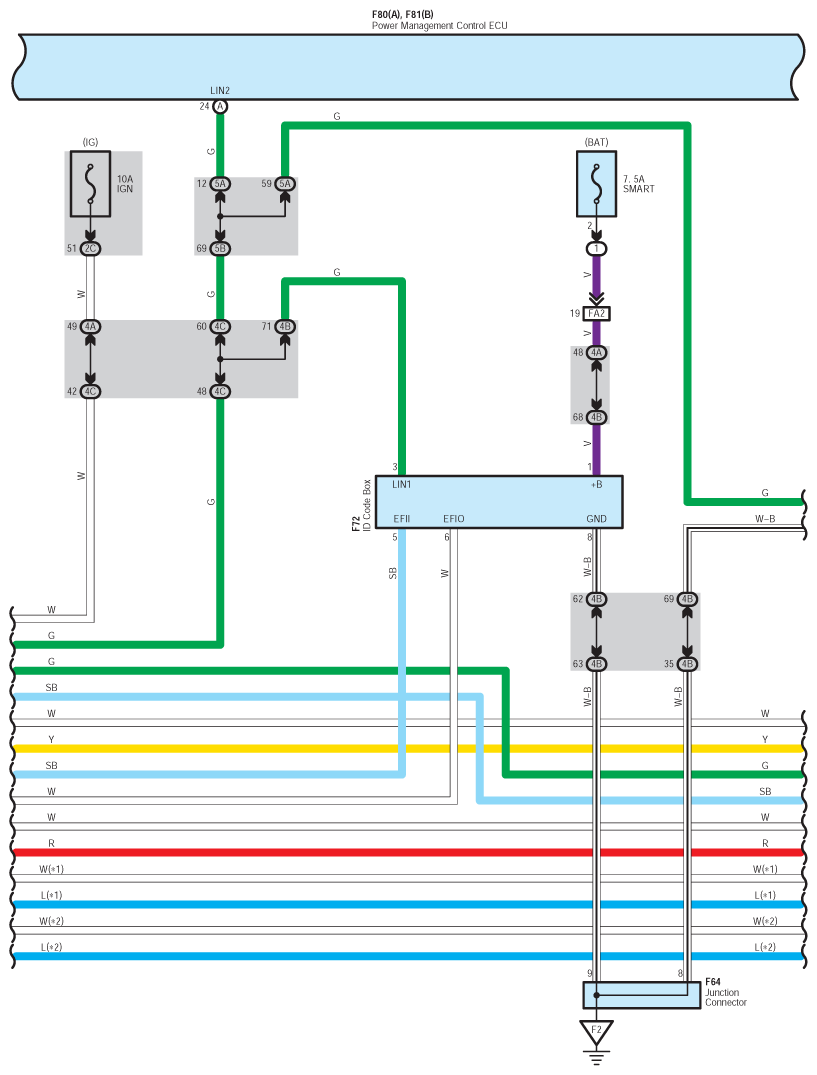

Fig 7: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (7 Of 20)
G12198618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

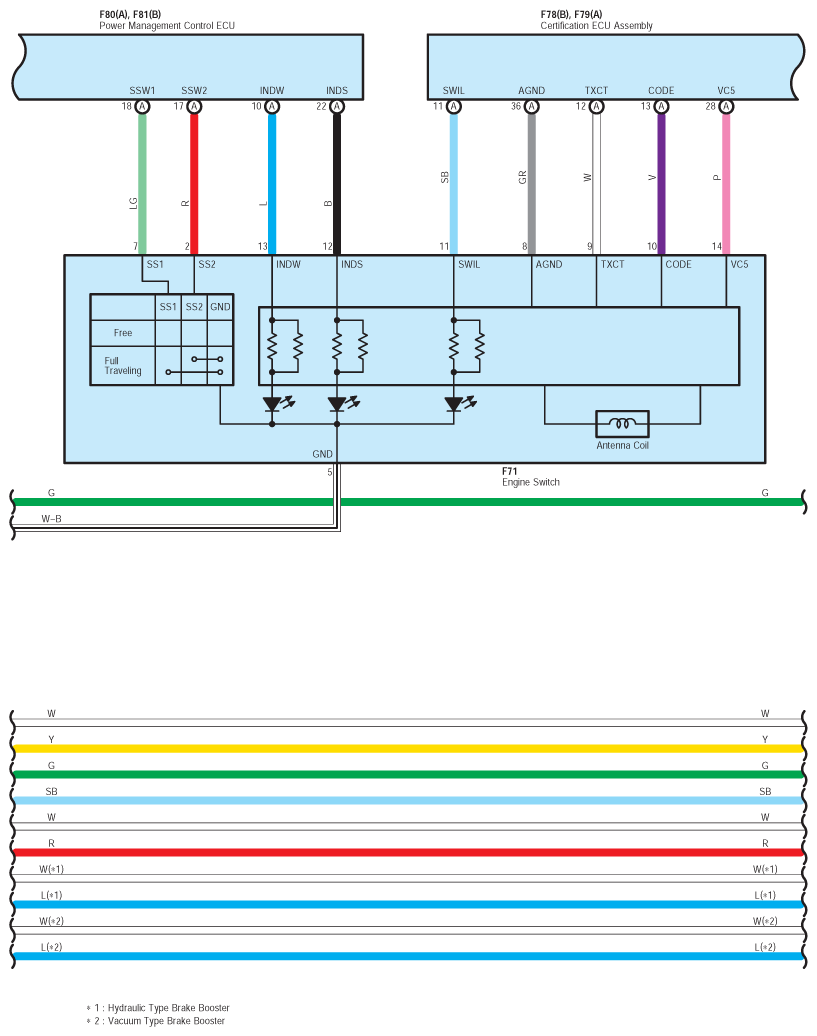

Fig 8: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (8 Of 20)
G12198619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

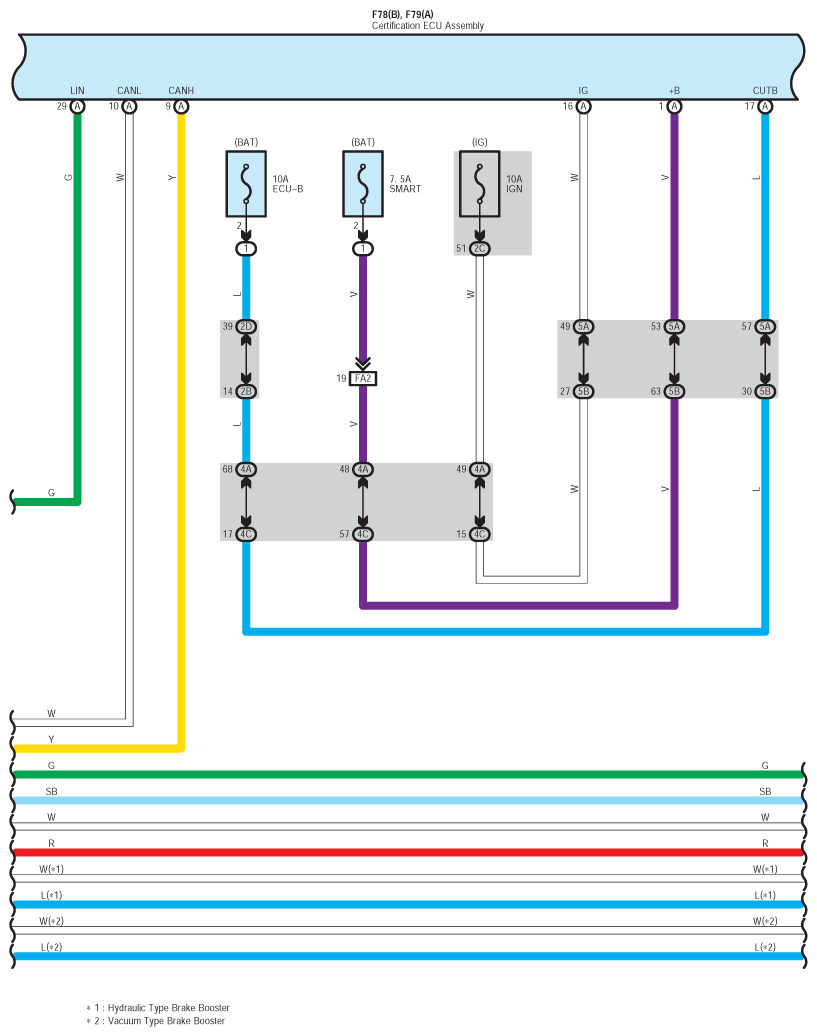

Fig 9: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (9 Of 20)
G12198620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

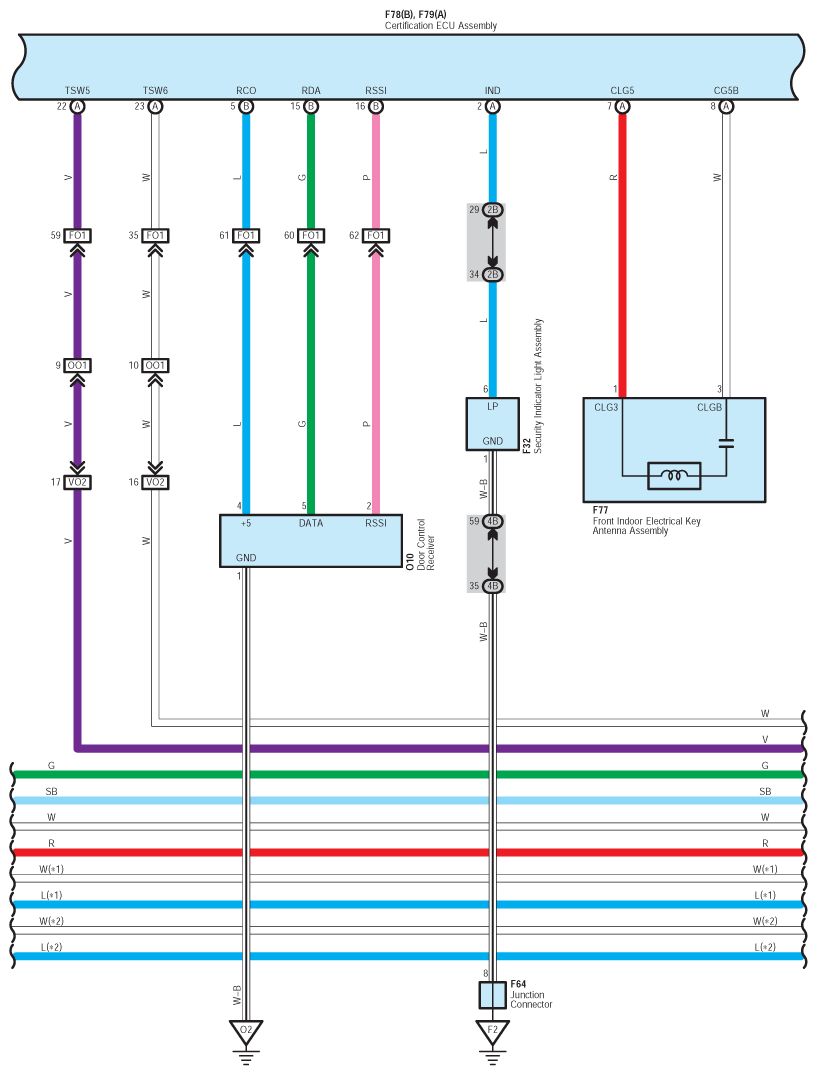

Fig 10: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (10 Of 20)
G12198621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

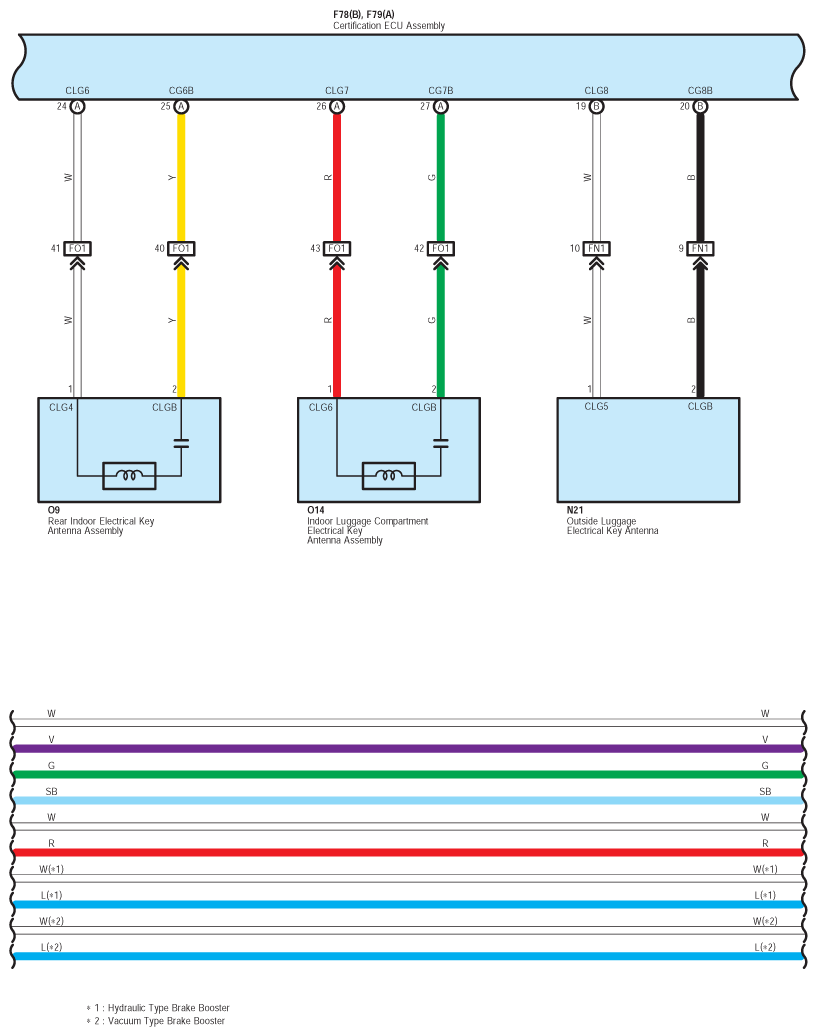

Fig 11: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (11 Of 20)
G12198622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

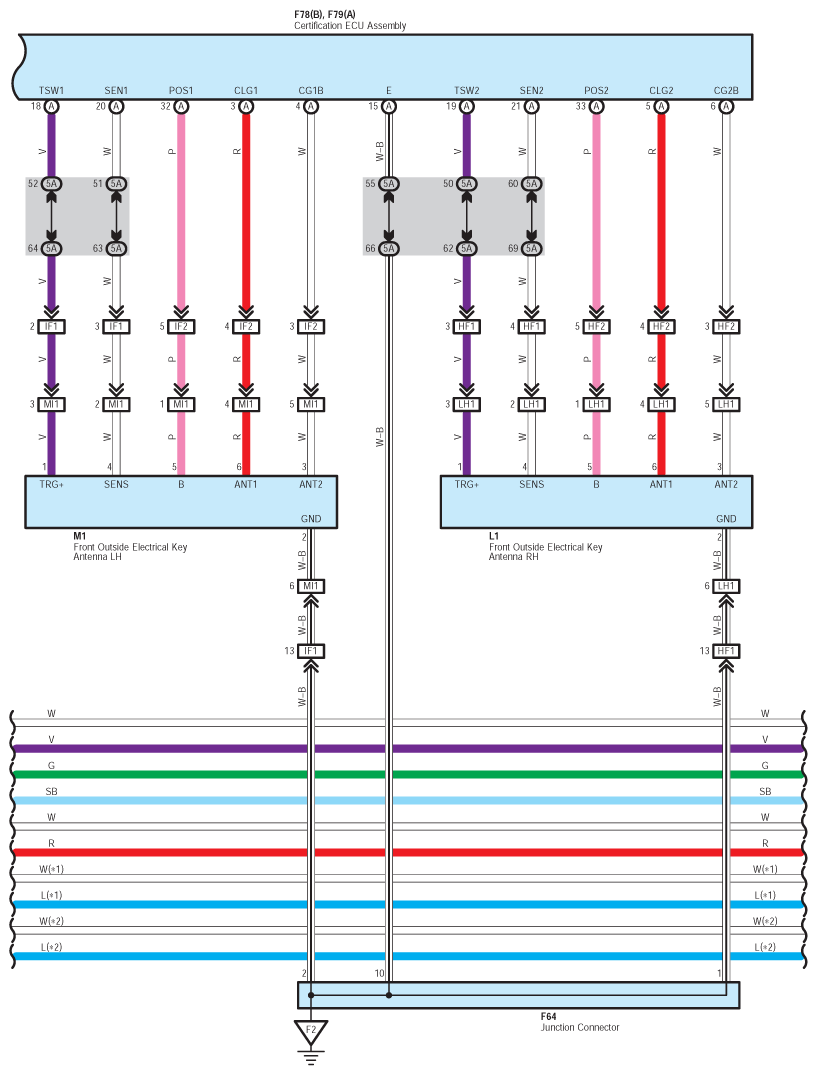

Fig 12: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (12 Of 20)
G12198623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

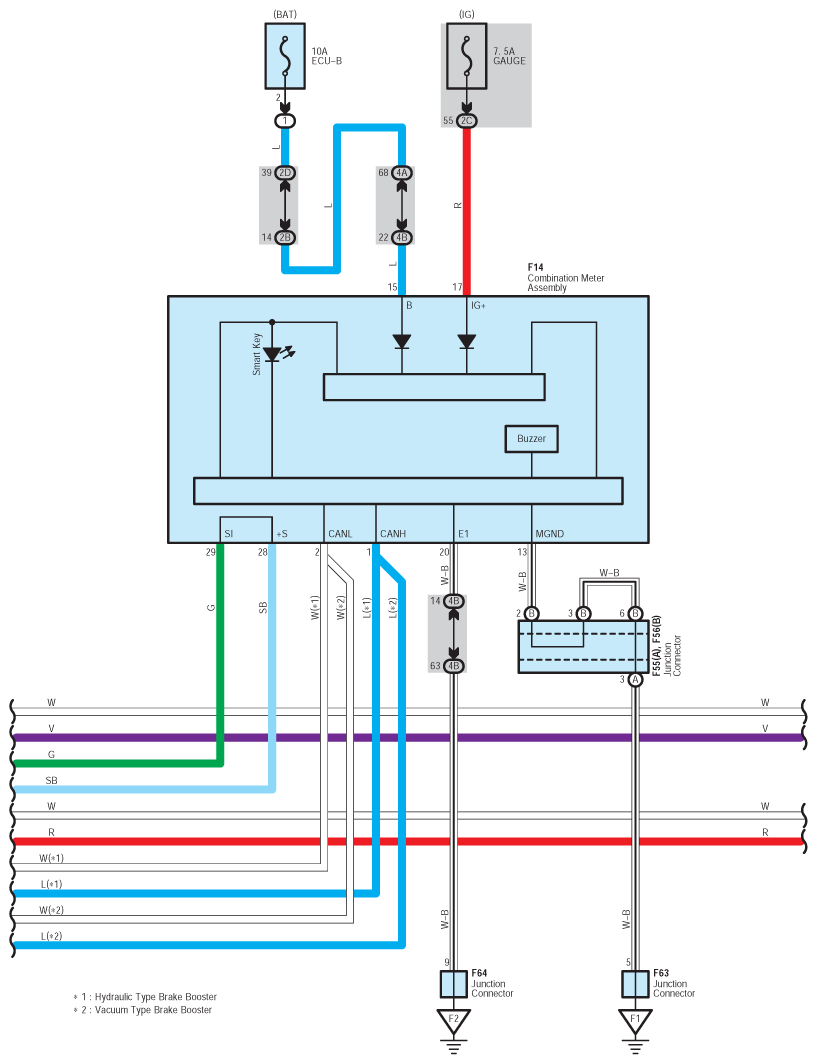

Fig 13: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (13 Of 20)
G12198624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

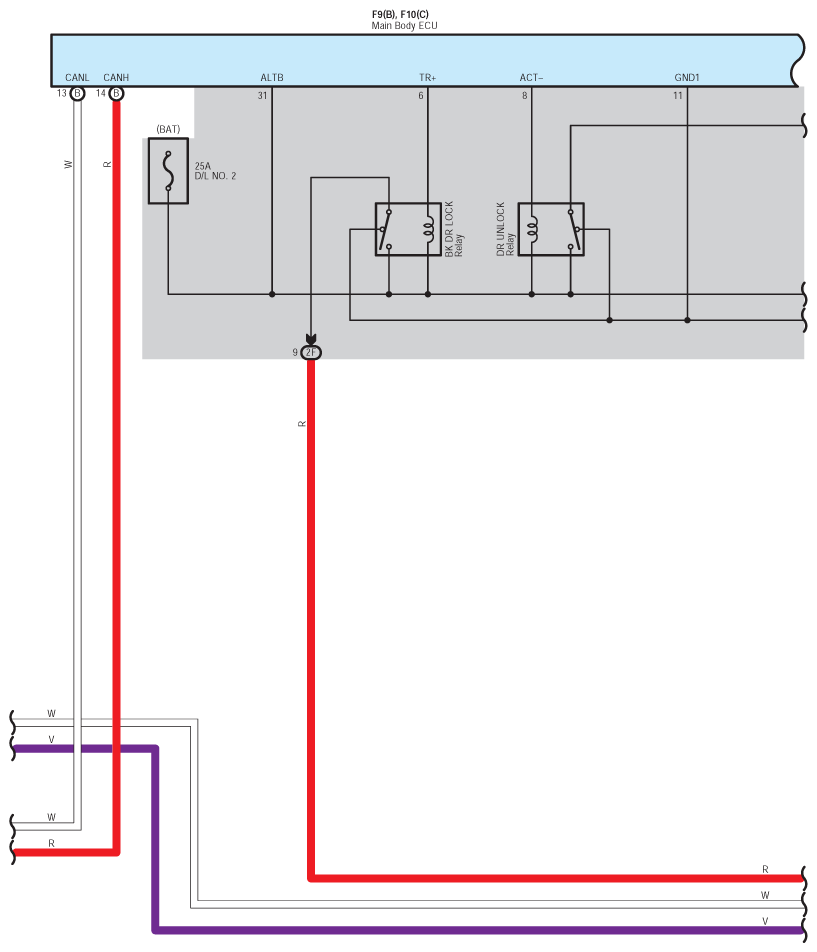

Fig 14: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (14 Of 20)
G12198625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

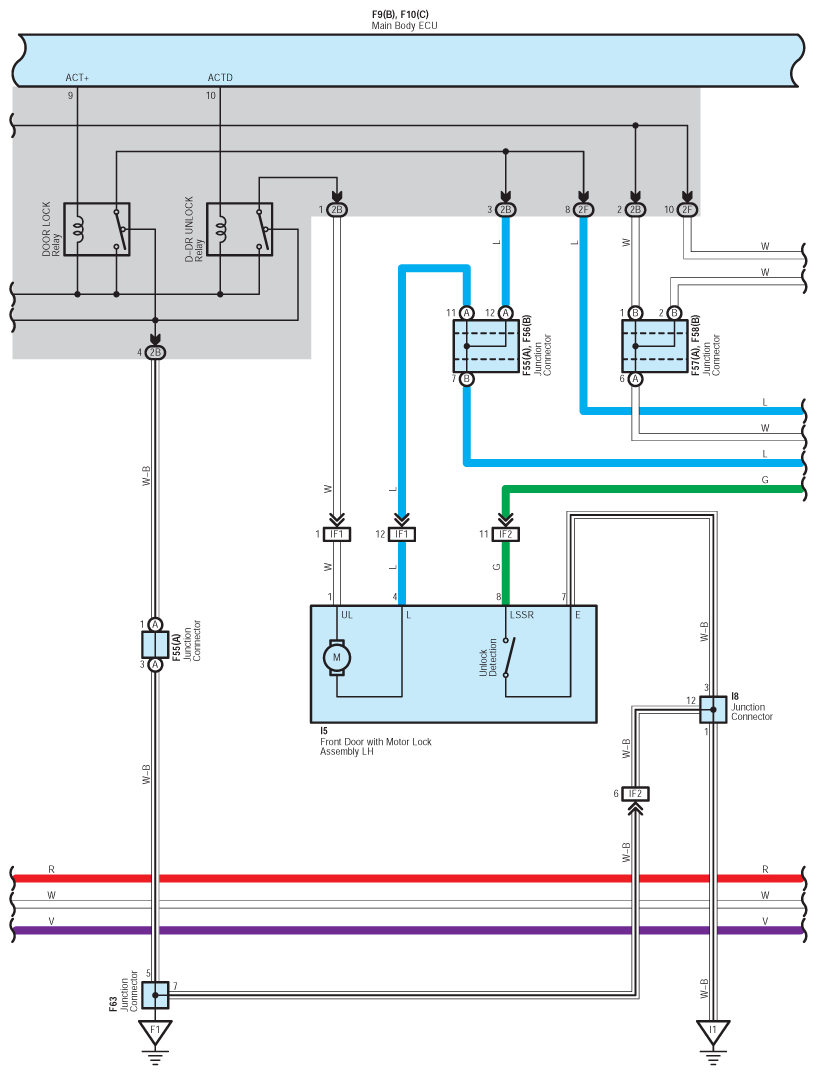

Fig 15: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (15 Of 20)
G12198626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

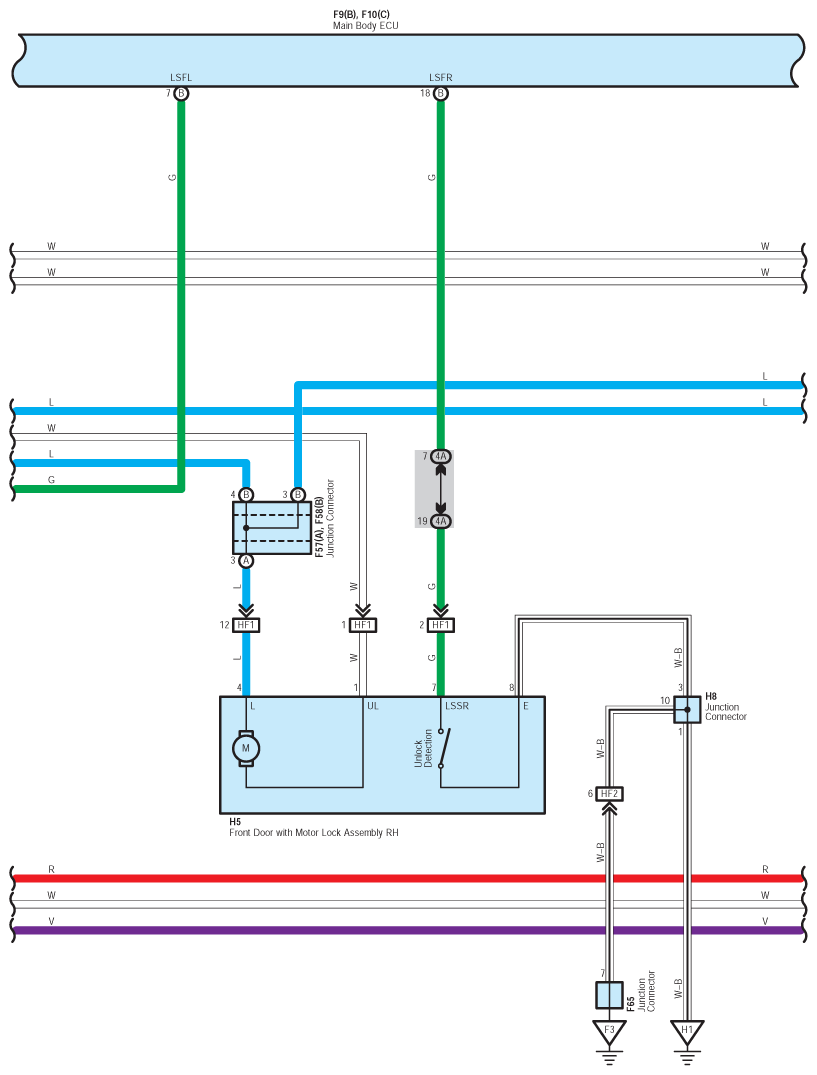

Fig 16: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (16 Of 20)
G12198627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

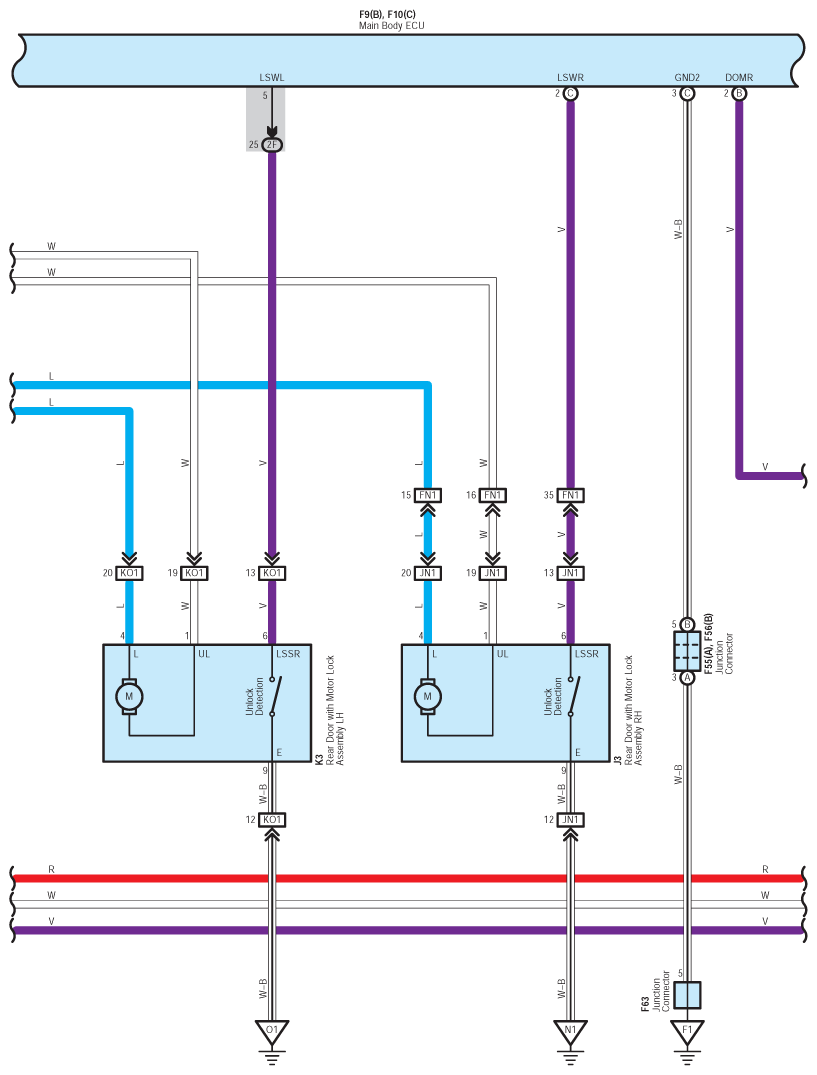

Fig 17: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (17 Of 20)
G12198628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

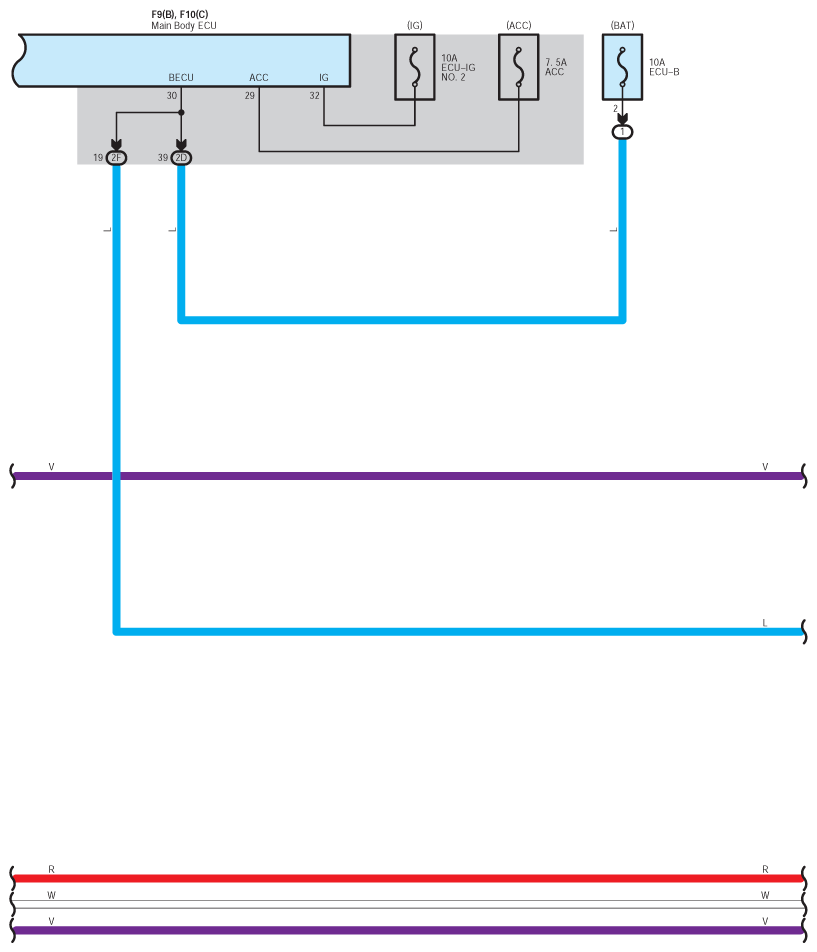

Fig 18: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (18 Of 20)
G12198629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

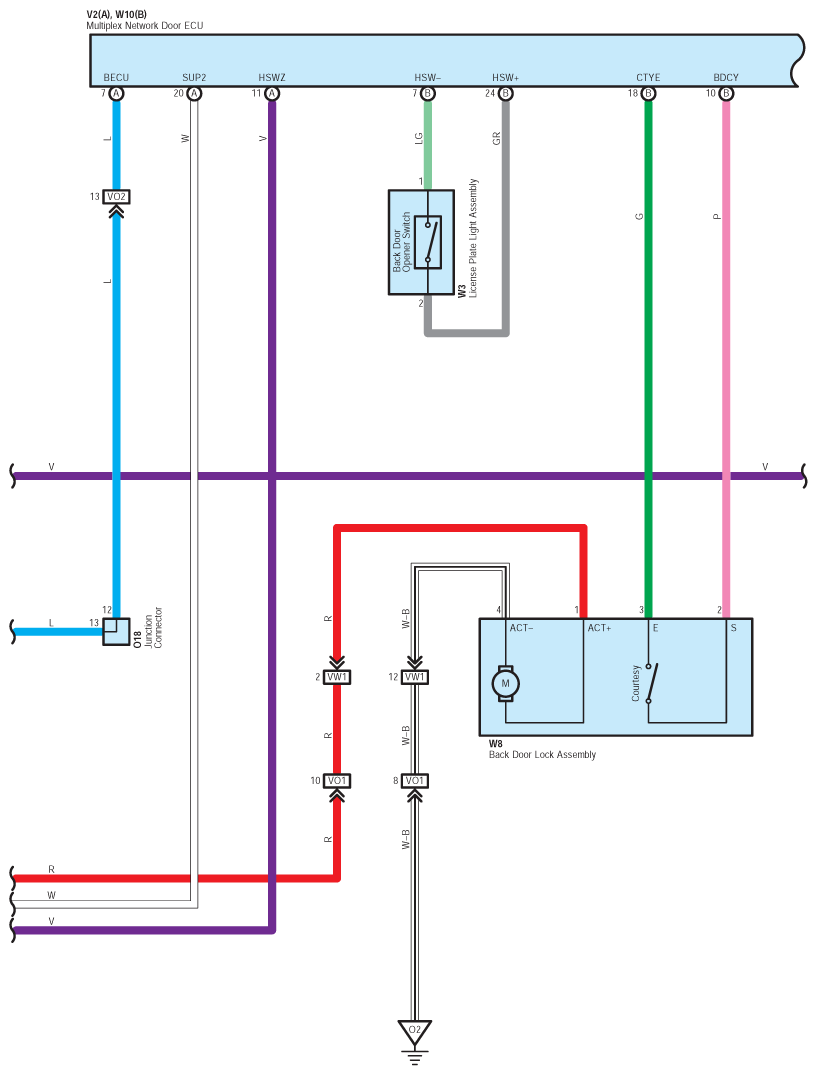

Fig 19: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (19 Of 20)
G12198630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

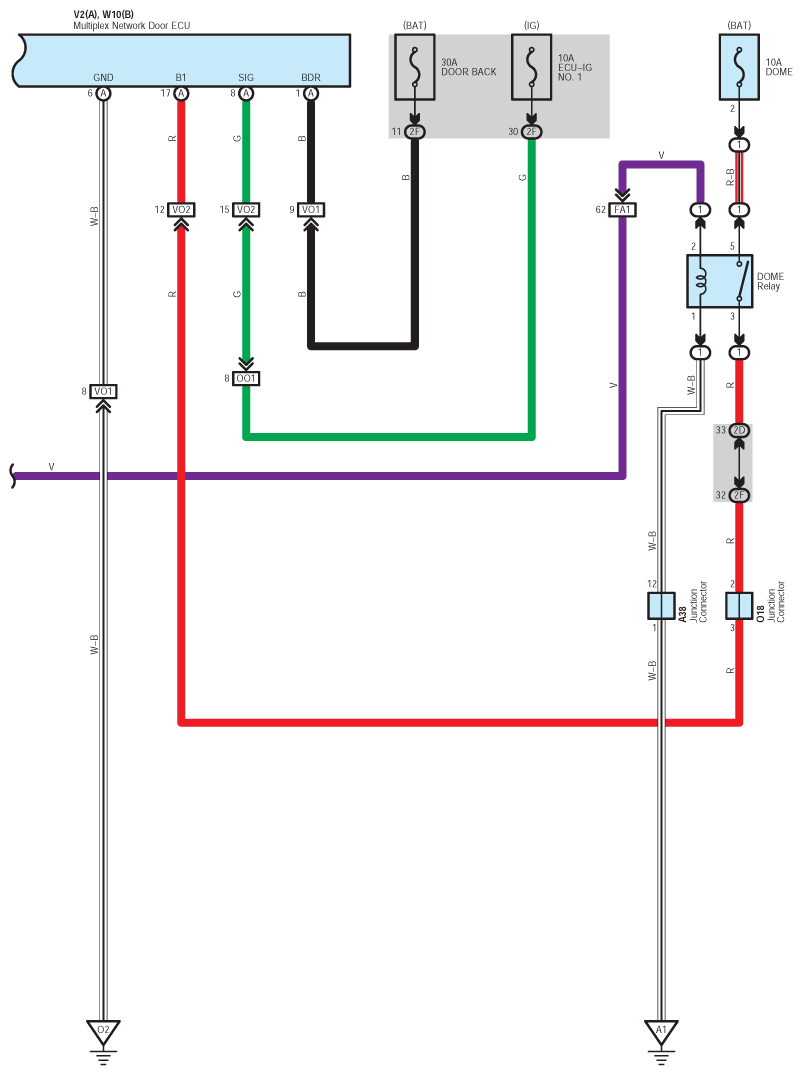

Fig 20: Engine Immobilizer System (W/Smart Key System), Smart Key System, Starting (W/Smart Key System), Steering Lock (W/Smart Key System), Wireless Door Lock Control (W/Smart Key System) (20 Of 20)
G12198631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
