System Diagrams

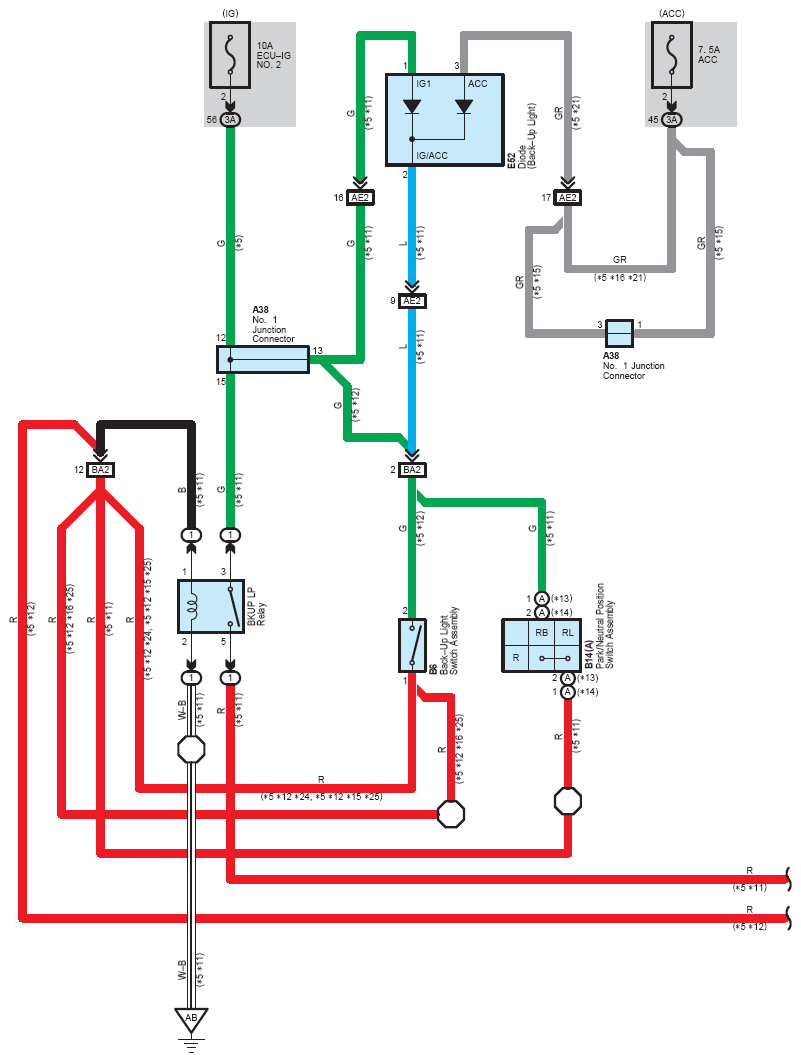

Fig 1: Audio System, Navigation System, Rear View Monitor System (1 Of 10)
G12199365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

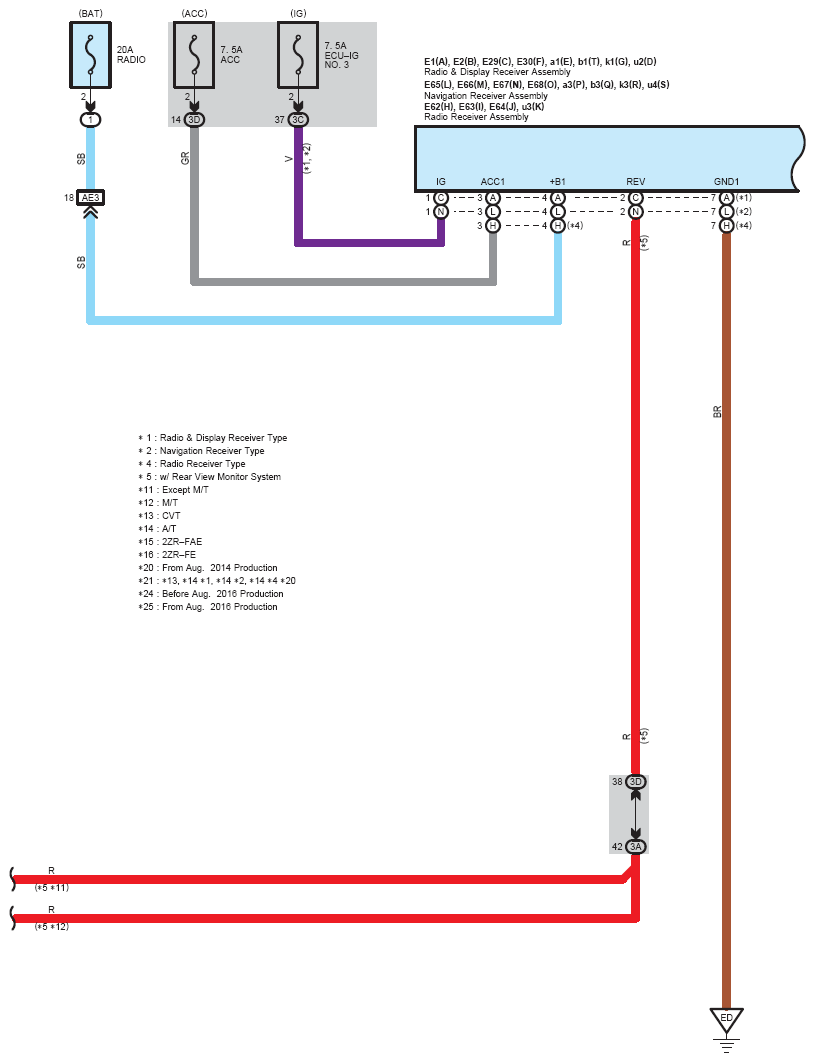

Fig 2: Audio System, Navigation System, Rear View Monitor System (2 Of 10)
G12199366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

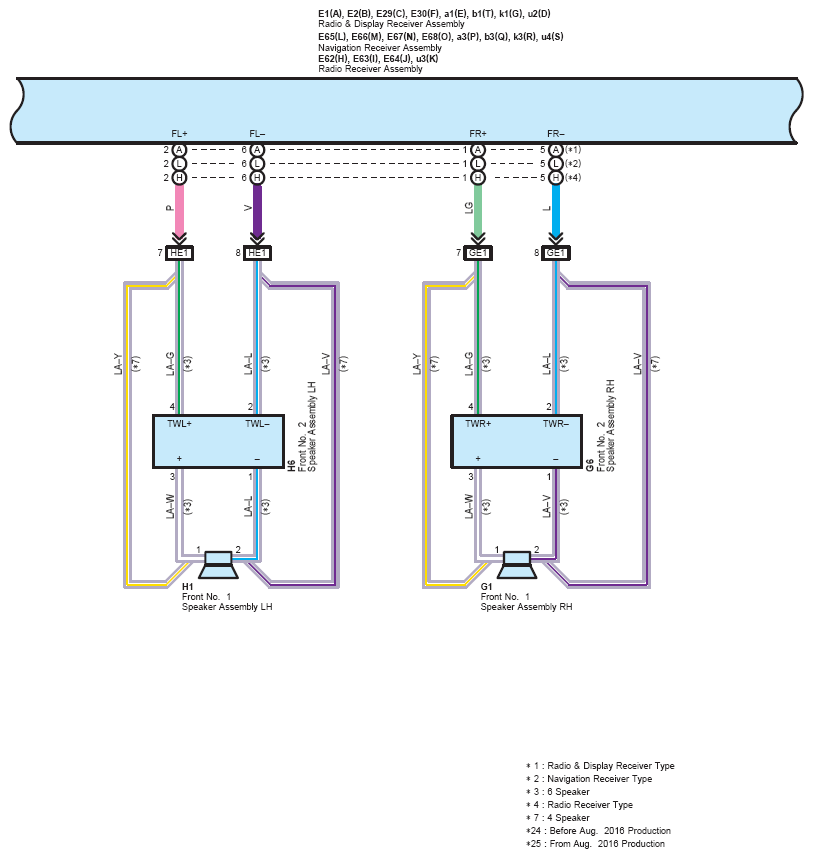

Fig 3: Audio System, Navigation System, Rear View Monitor System (3 Of 10)
G12199367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

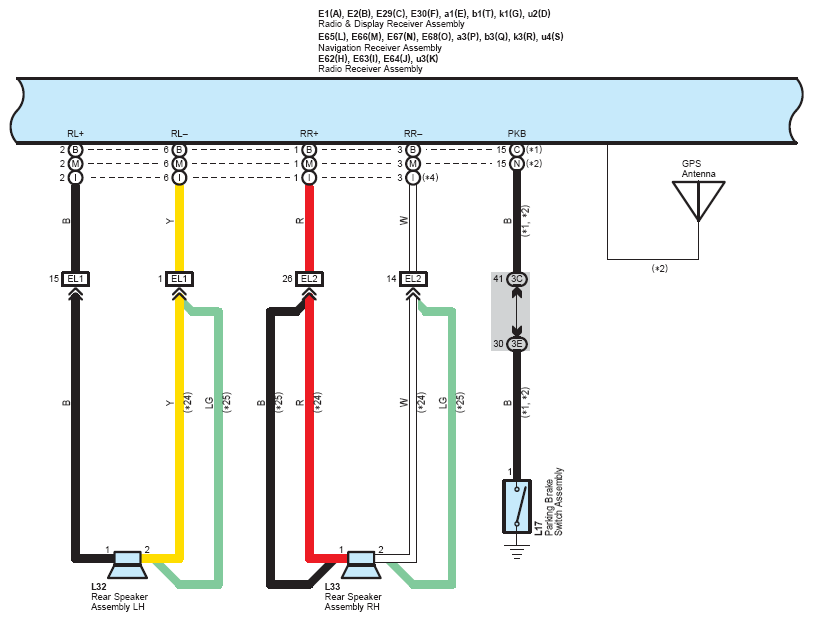

Fig 4: Audio System, Navigation System, Rear View Monitor System (4 Of 10)
G12199368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

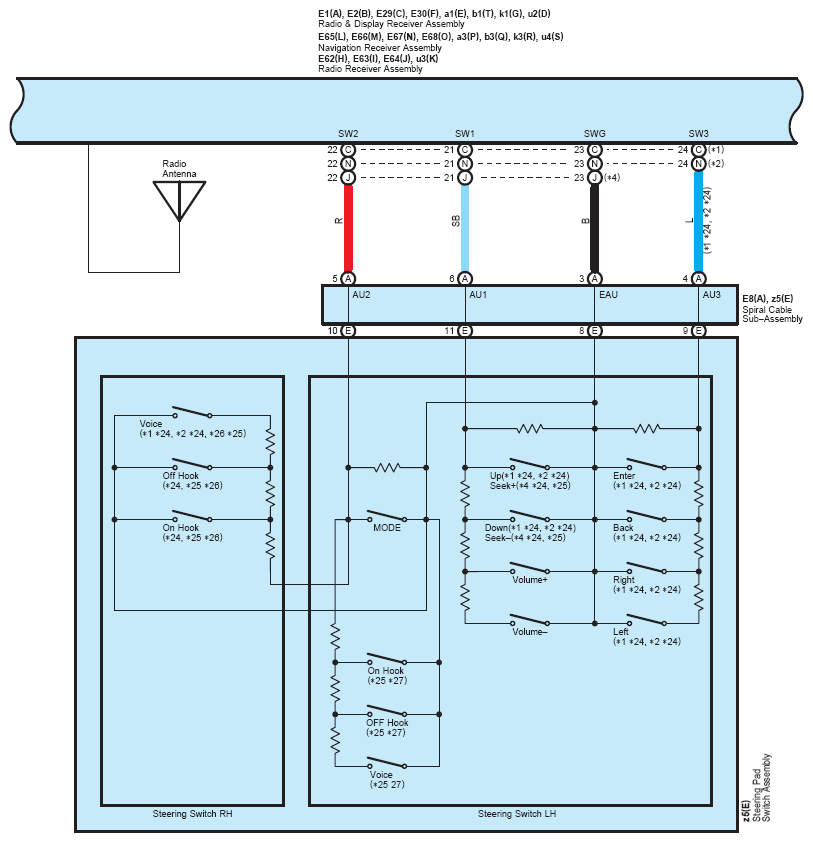

Fig 5: Audio System, Navigation System, Rear View Monitor System (5 Of 10)
G12199369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

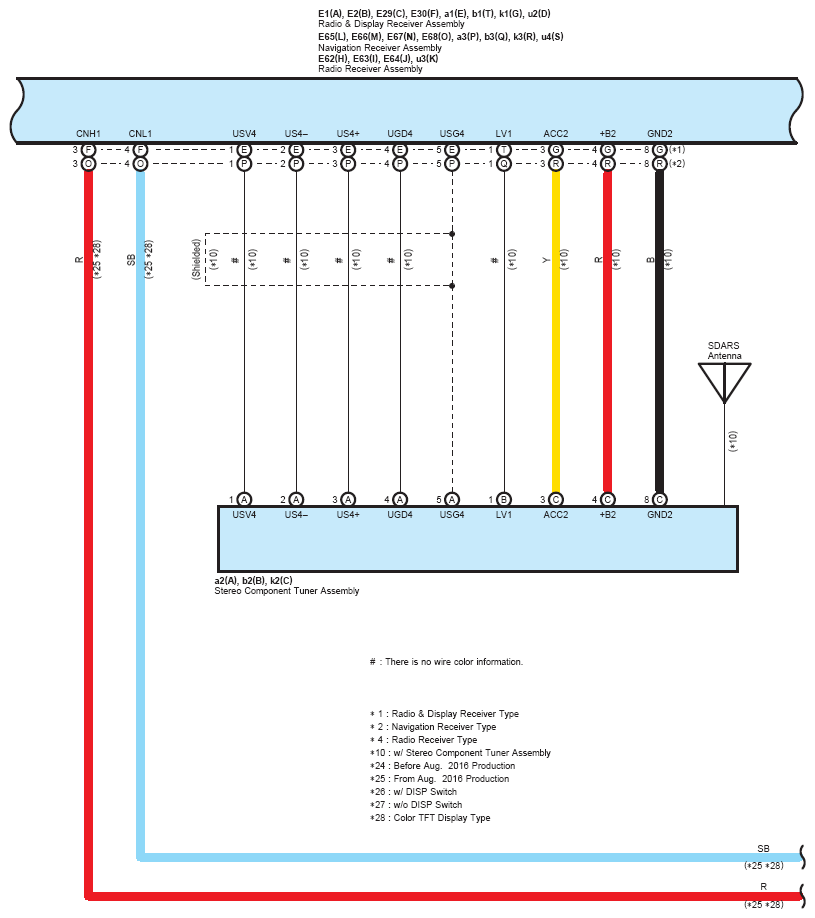

Fig 6: Audio System, Navigation System, Rear View Monitor System (6 Of 10)
G12199370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

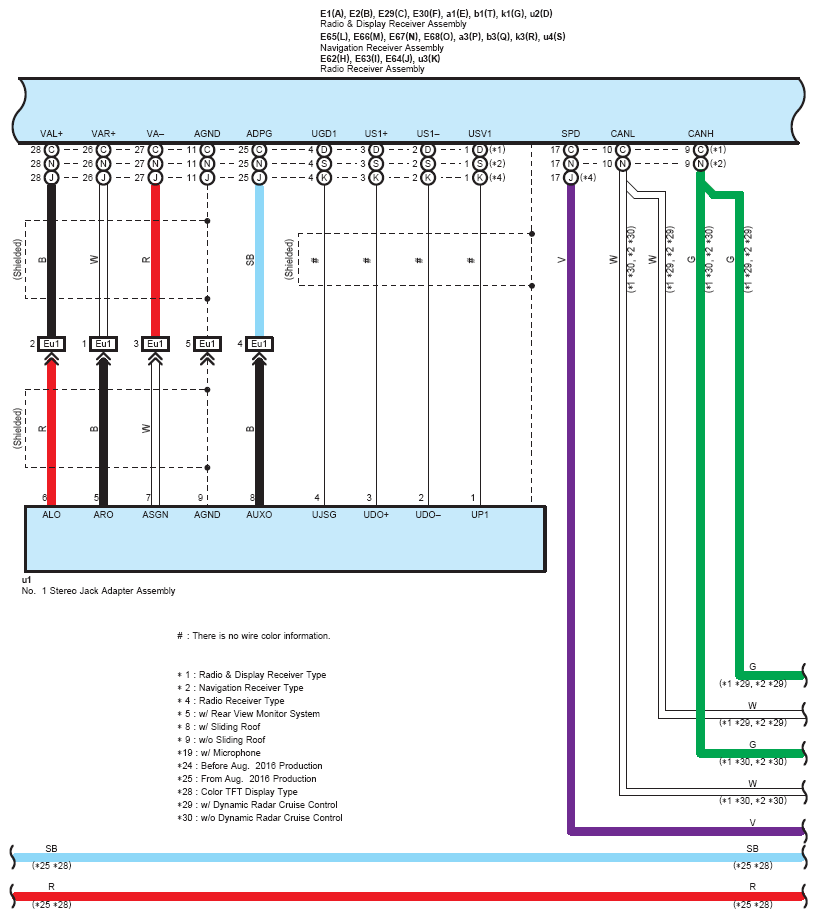

Fig 7: Audio System, Navigation System, Rear View Monitor System (7 Of 10)
G12199371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

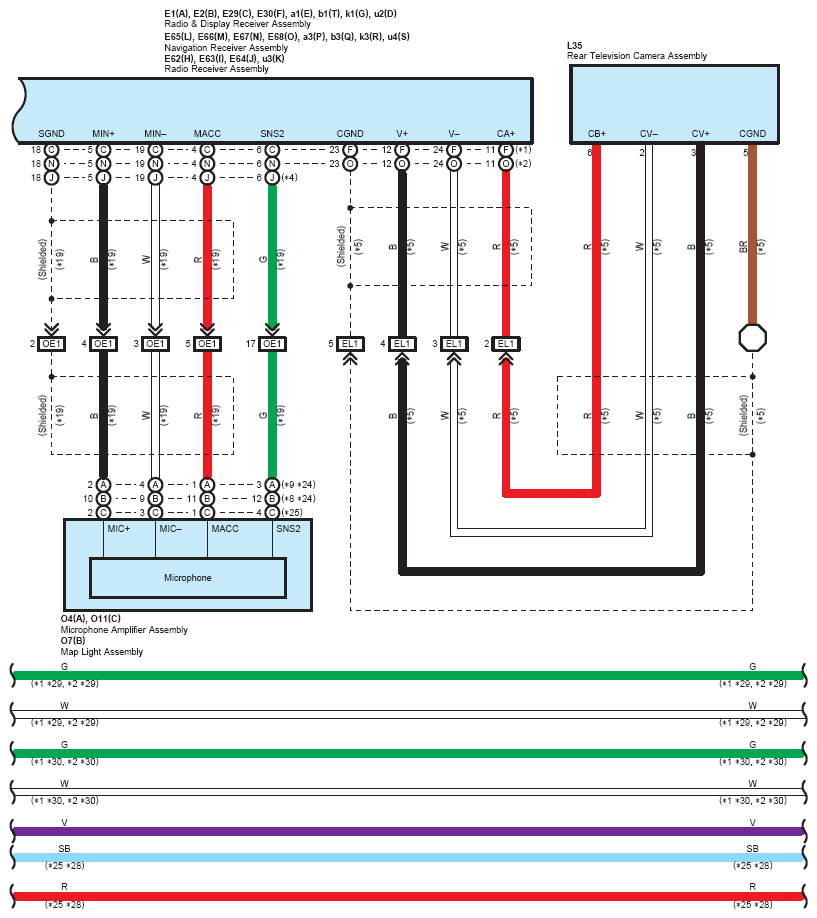

Fig 8: Audio System, Navigation System, Rear View Monitor System (8 Of 10)
G12199372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

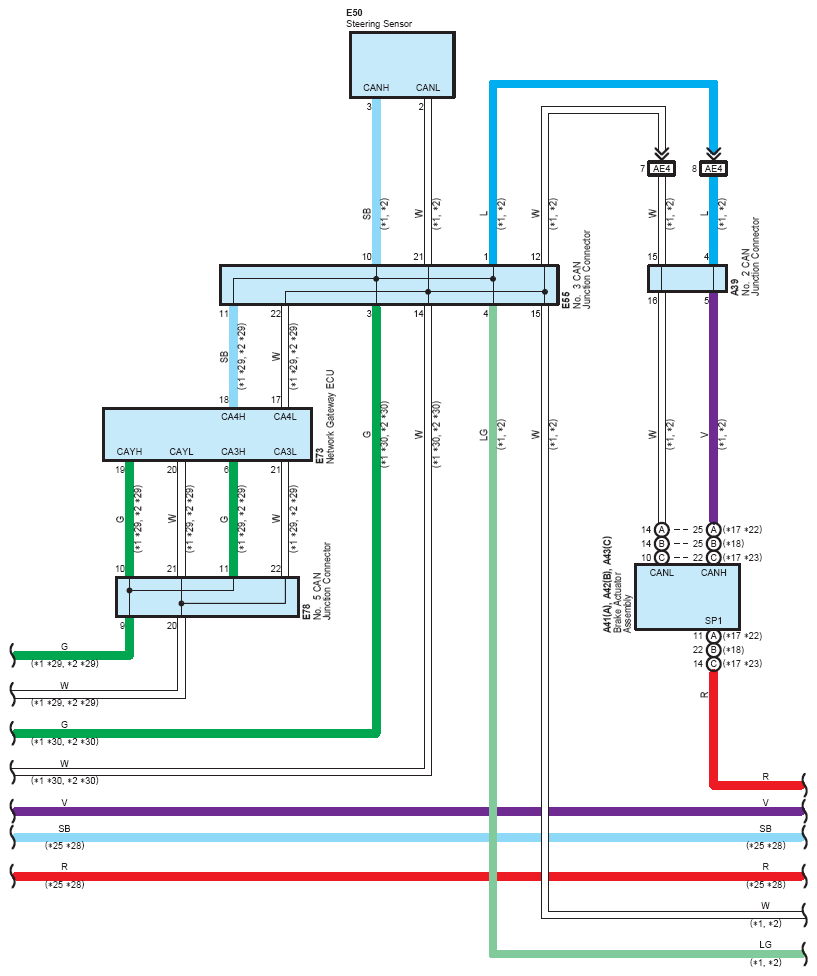

Fig 9: Audio System, Navigation System, Rear View Monitor System (9 Of 10)
G12199373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Audio System, Navigation System, Rear View Monitor System (10 Of 10)
G12199374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
