System Diagrams

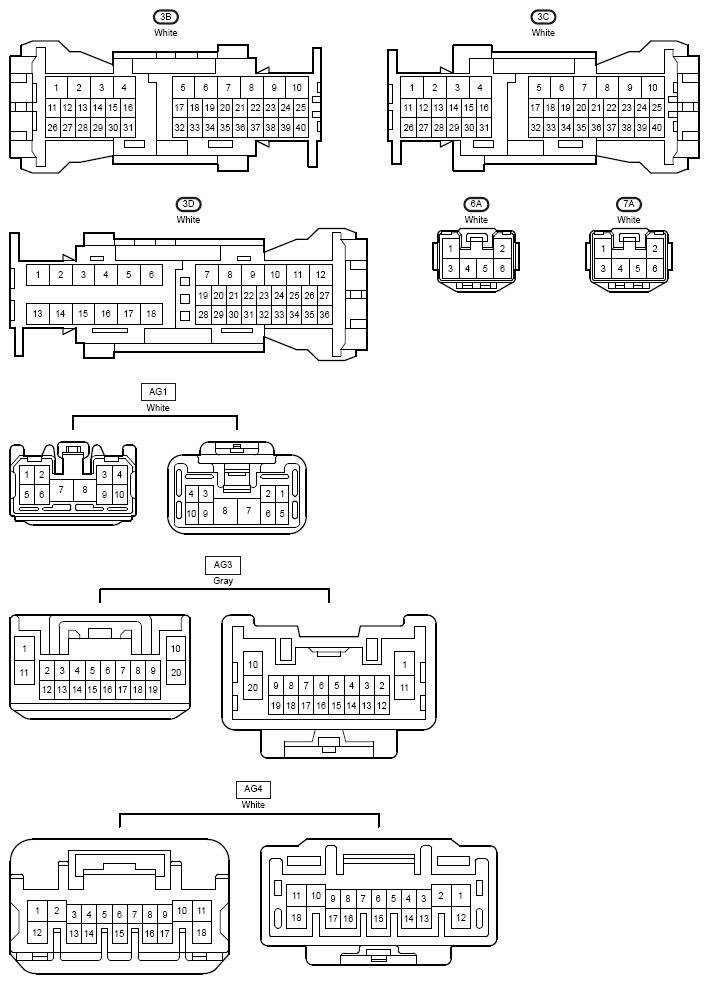

Fig 1: Cruise Control, Engine Control (1 Of 22)

G12211226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

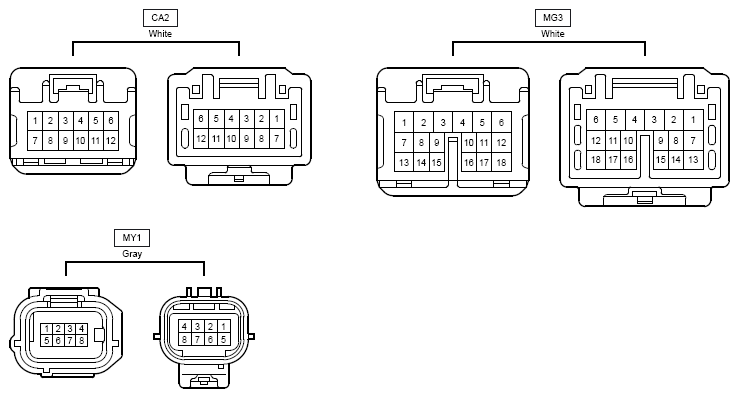

Fig 2: Cruise Control, Engine Control (2 Of 22)

G12211227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

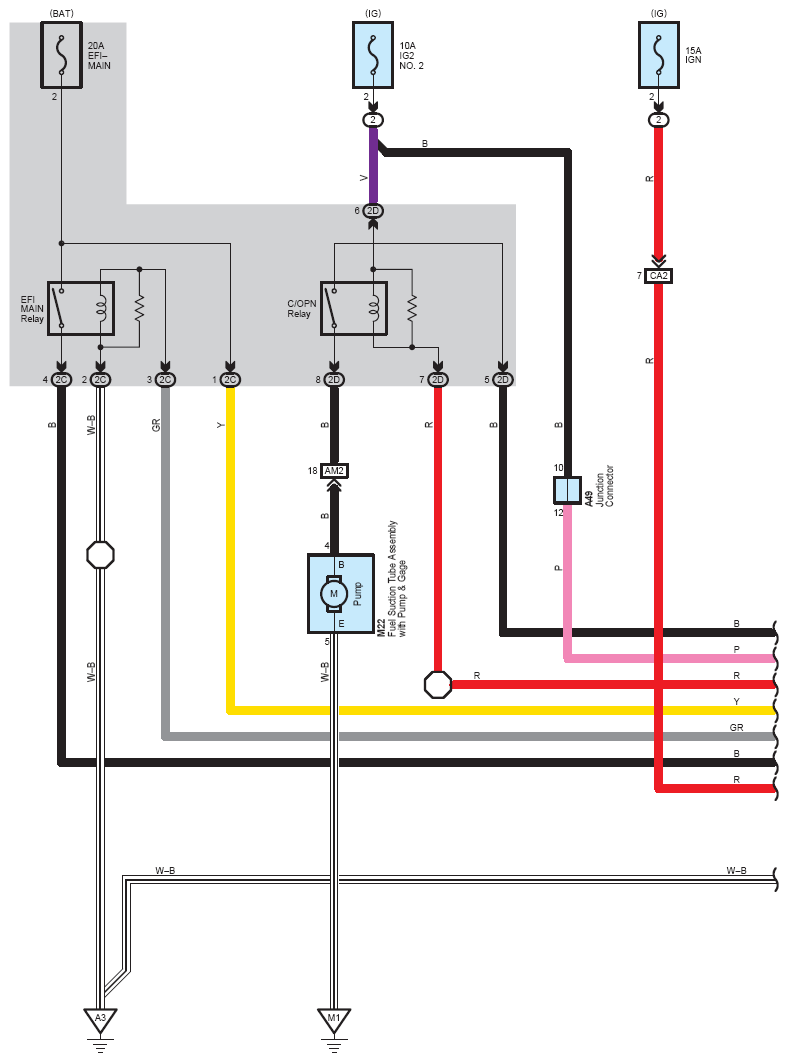

Fig 3: Cruise Control, Engine Control (3 Of 22)

G12211228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

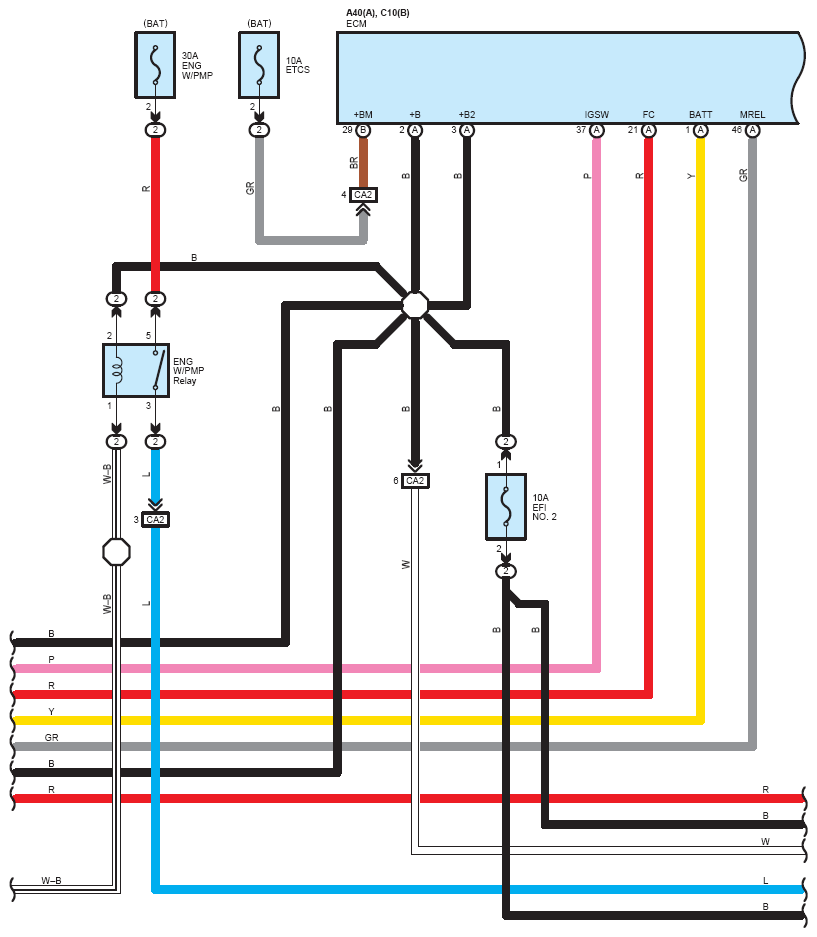

Fig 4: Cruise Control, Engine Control (4 Of 22)

G12211229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

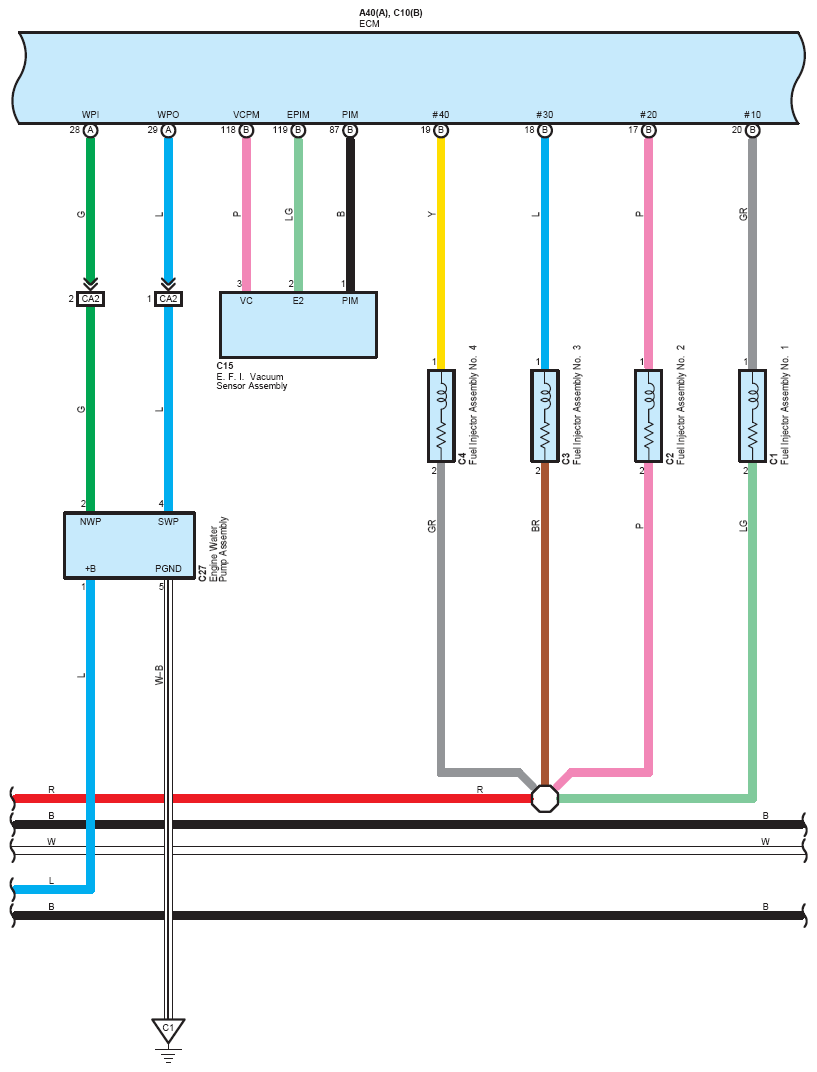

Fig 5: Cruise Control, Engine Control (5 Of 22)

G12211230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

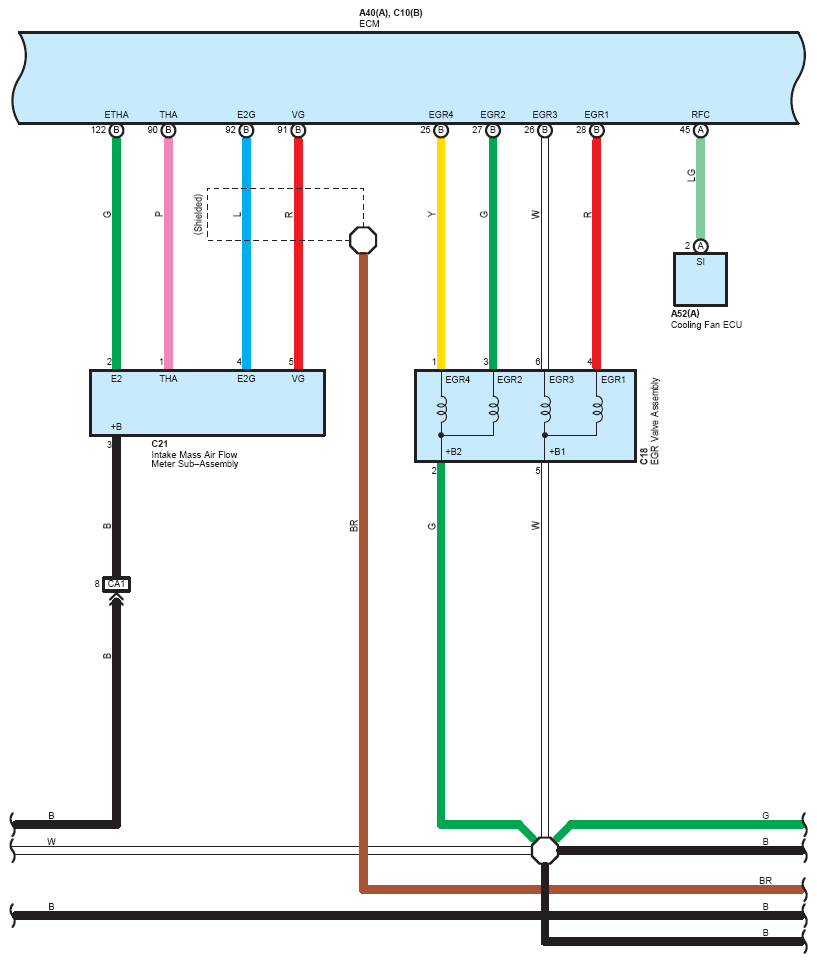

Fig 6: Cruise Control, Engine Control (6 Of 22)

G12211231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

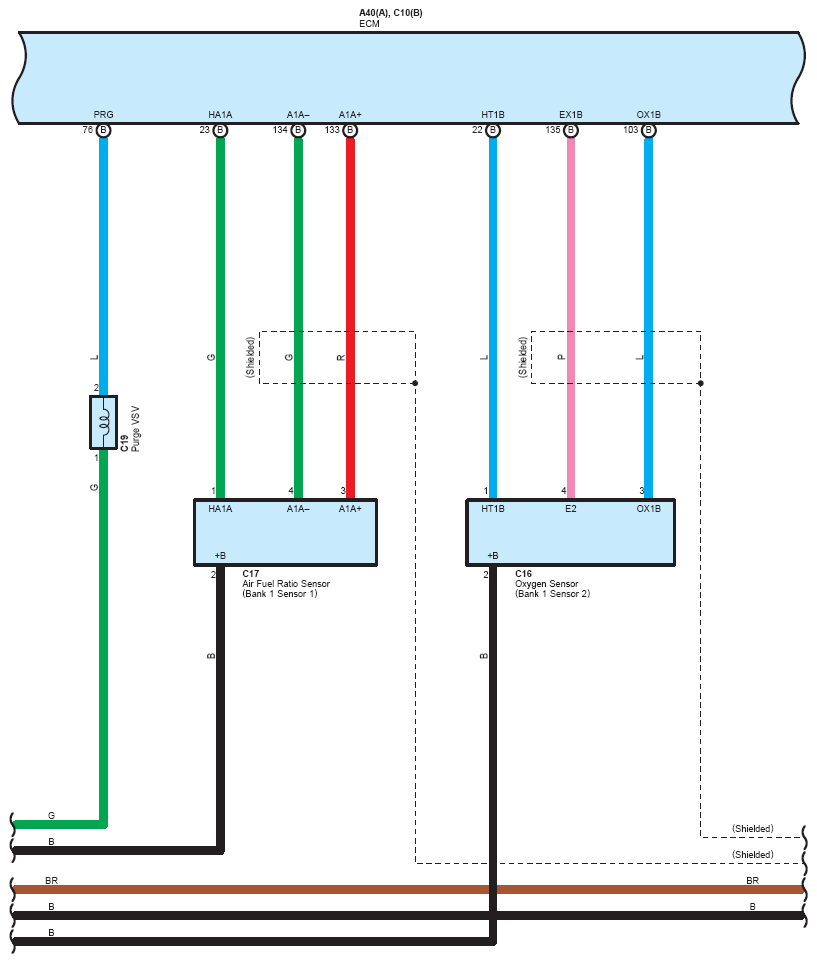

Fig 7: Cruise Control, Engine Control (7 Of 22)

G12211232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

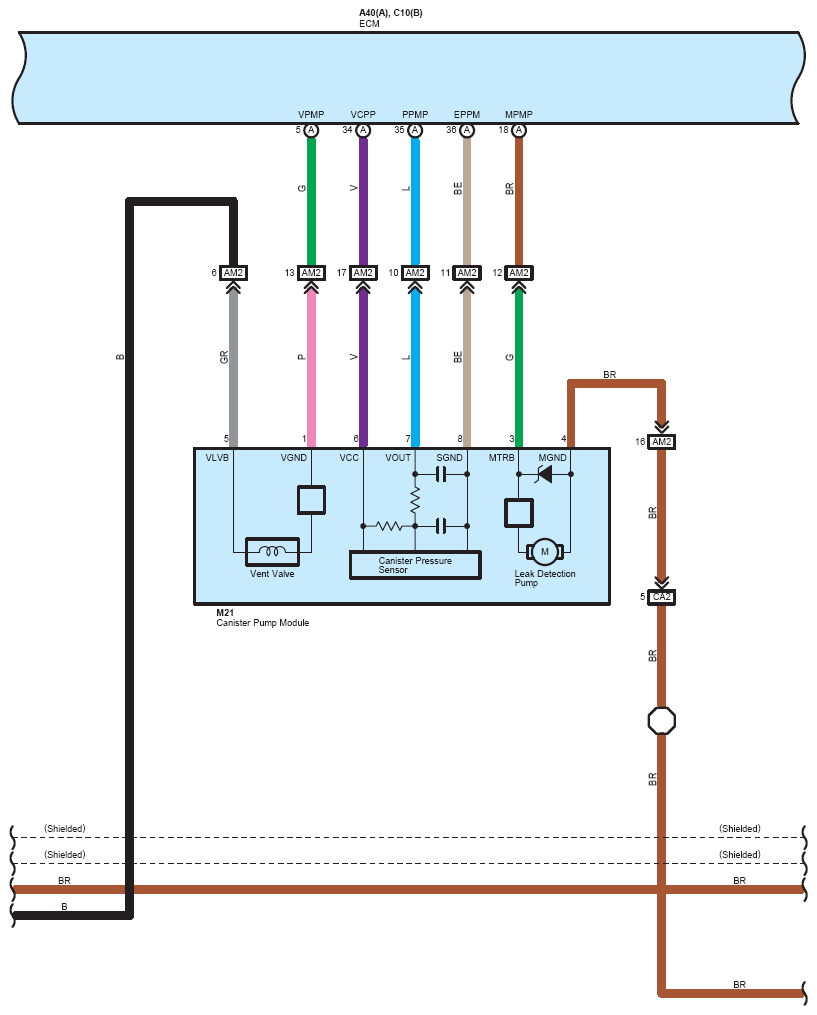

Fig 8: Cruise Control, Engine Control (8 Of 22)

G12211233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

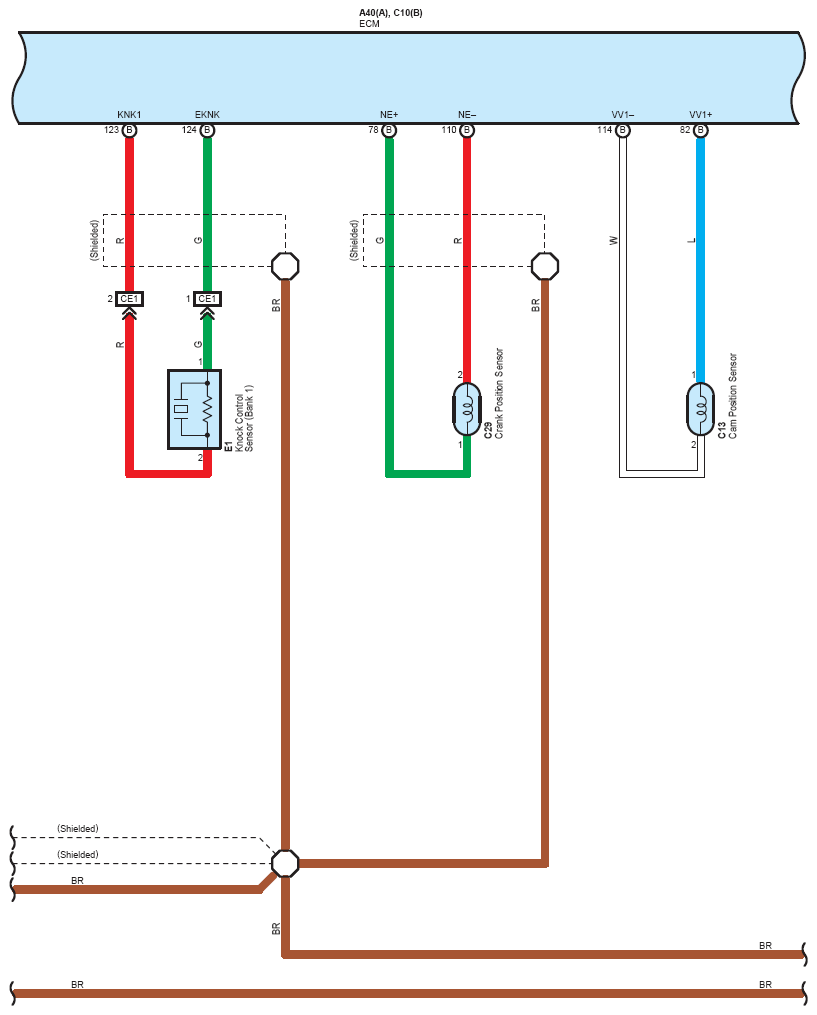

Fig 9: Cruise Control, Engine Control (9 Of 22)

G12211234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

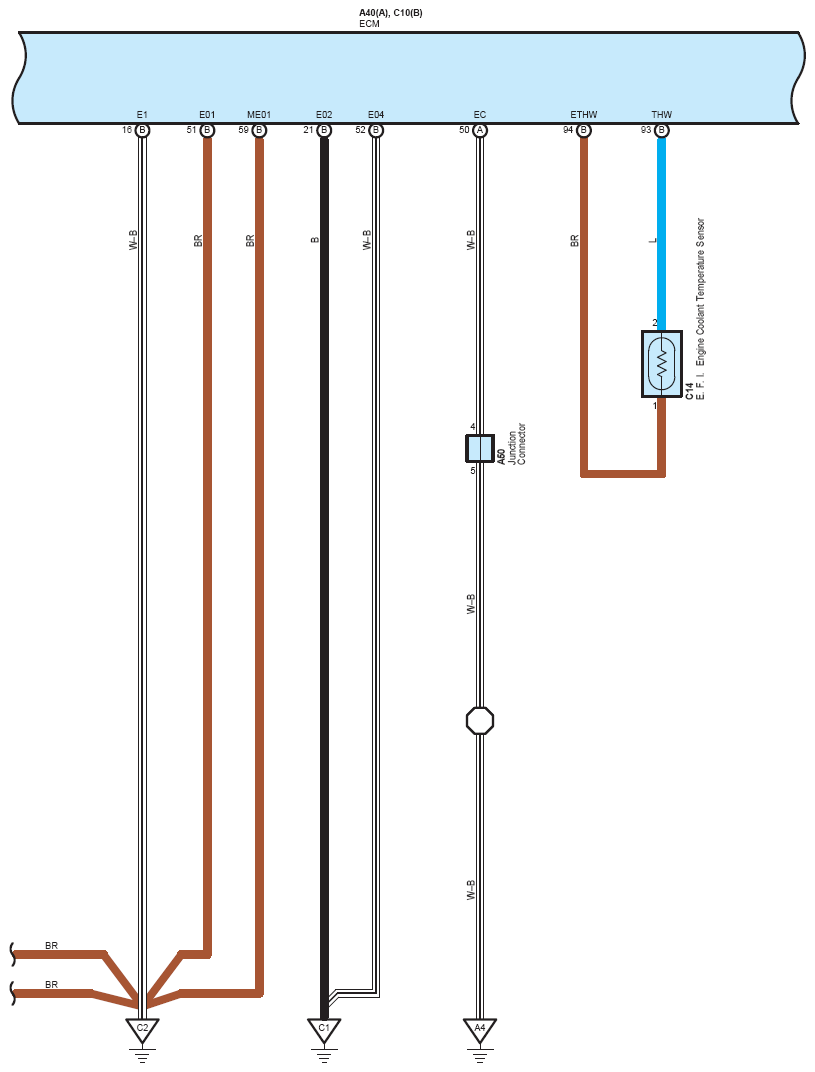

Fig 10: Cruise Control, Engine Control (10 Of 22)

G12211235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

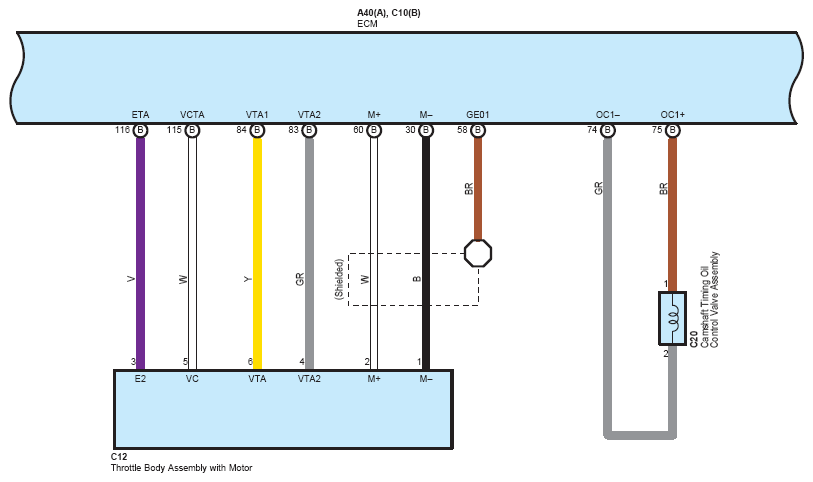

Fig 11: Cruise Control, Engine Control (11 Of 22)

G12211236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

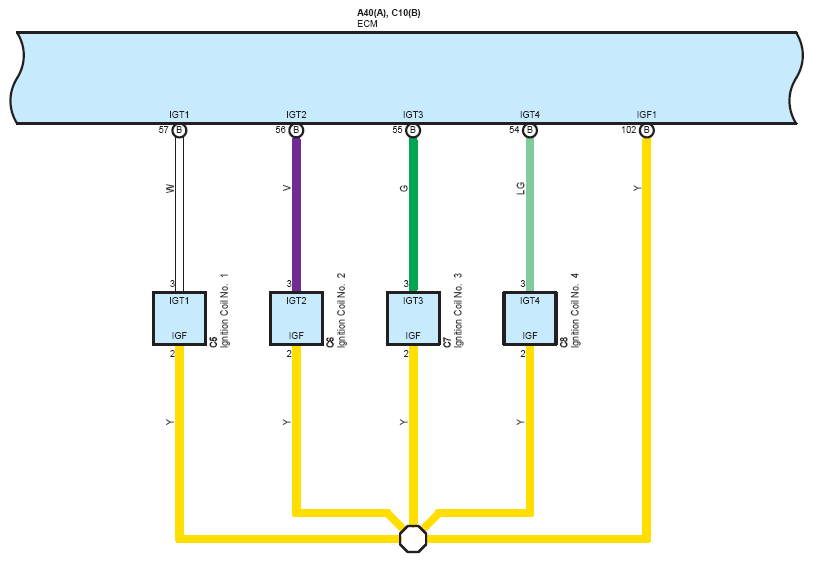

Fig 12: Cruise Control, Engine Control (12 Of 22)

G12211237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

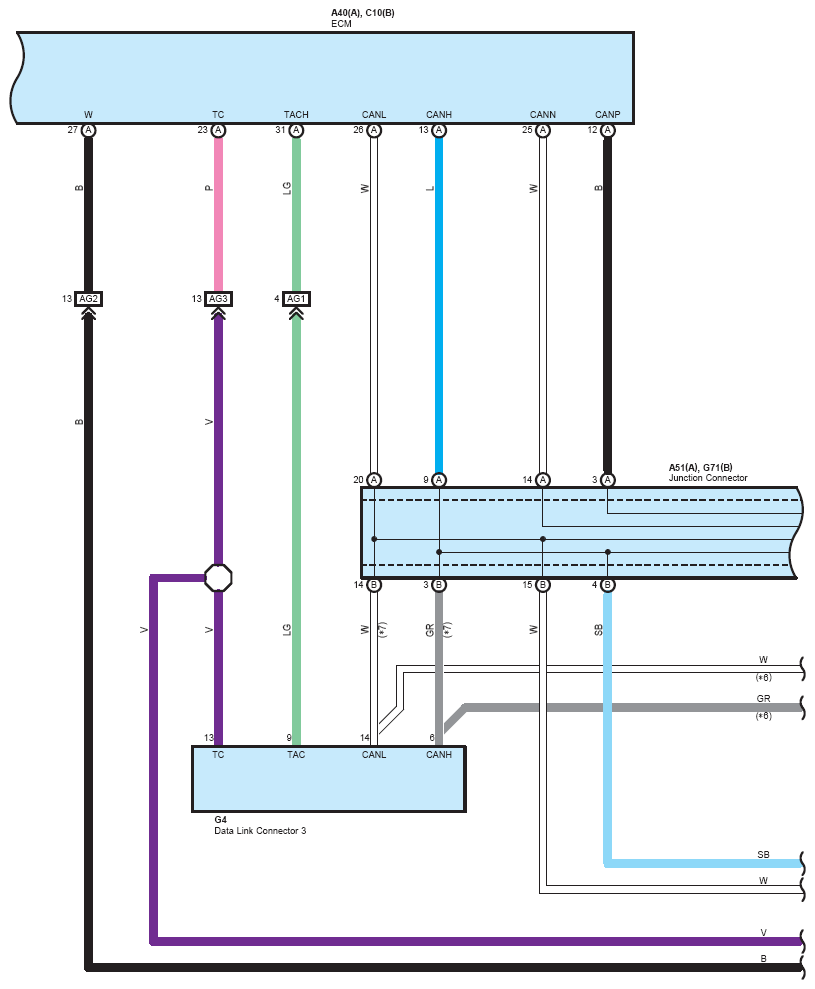

Fig 13: Cruise Control, Engine Control (13 Of 22)

G12211238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

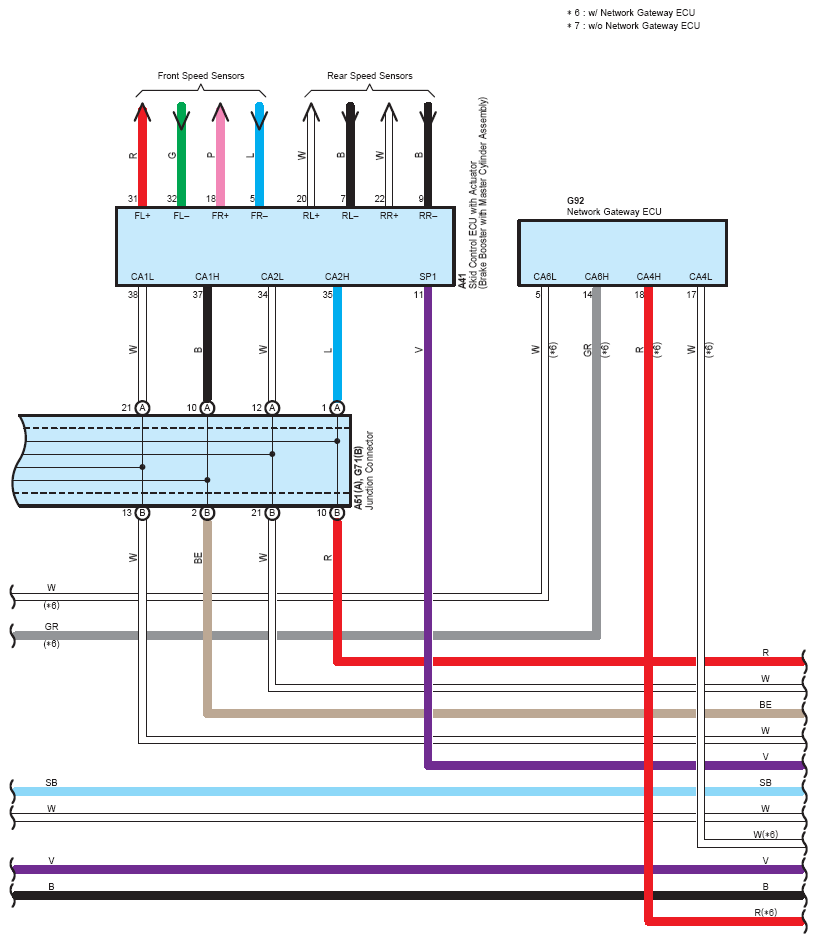

Fig 14: Cruise Control, Engine Control (14 Of 22)

G12211239

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

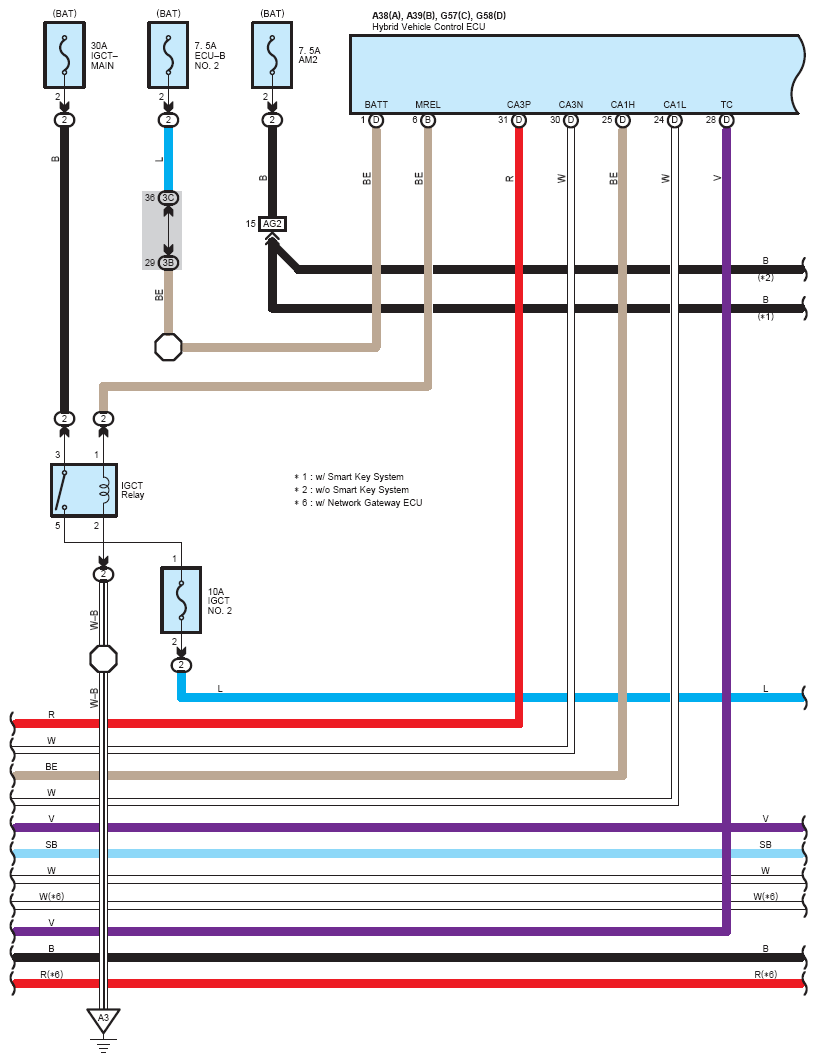

Fig 15: Cruise Control, Engine Control (15 Of 22)

G12211240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

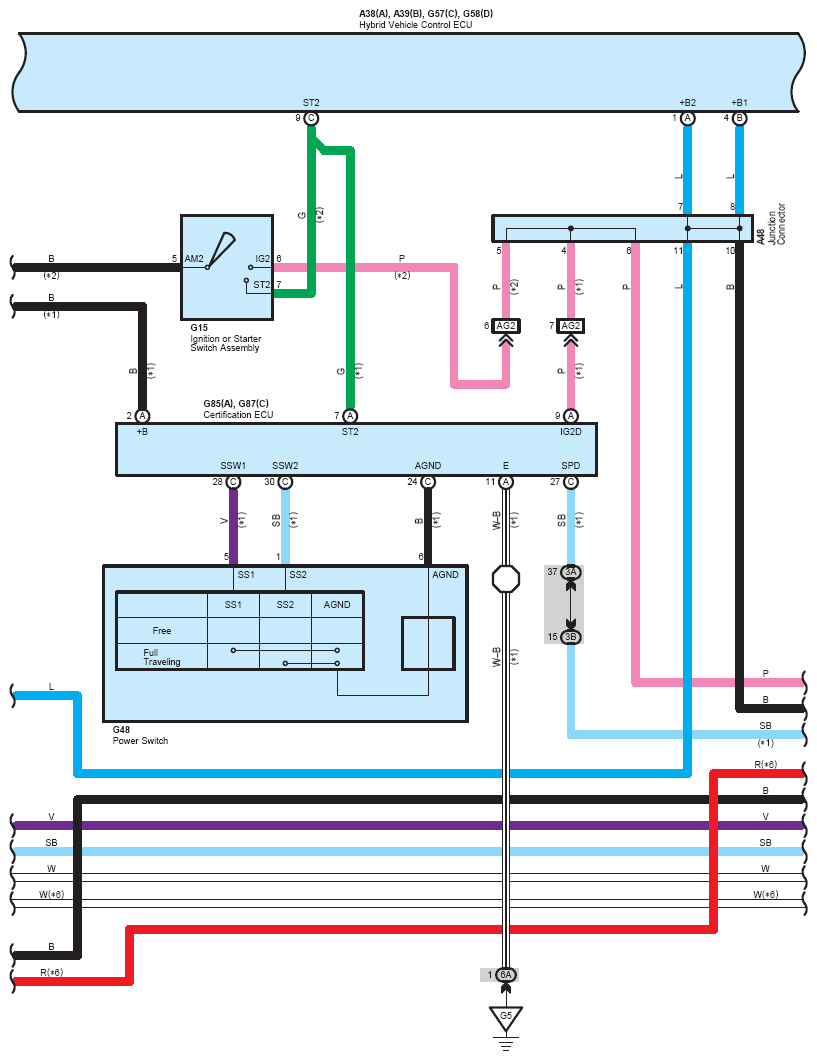

Fig 16: Cruise Control, Engine Control (16 Of 22)

G12211241

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

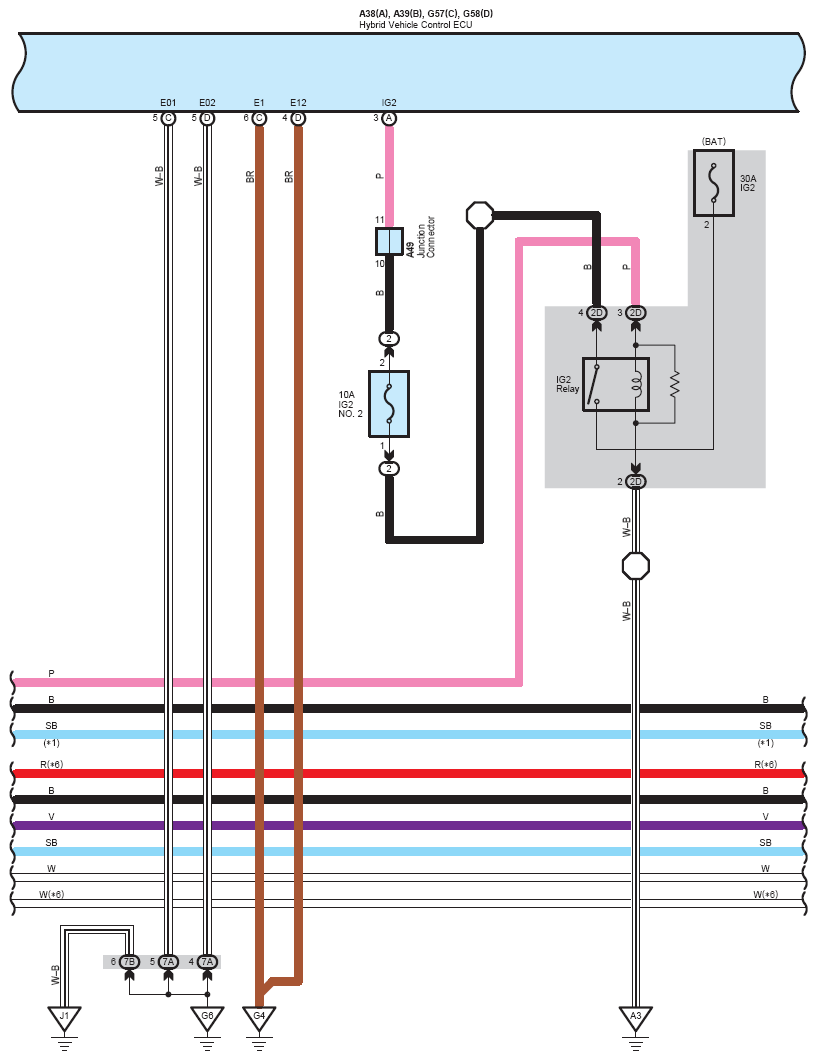

Fig 17: Cruise Control, Engine Control (17 Of 22)

G12211242

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

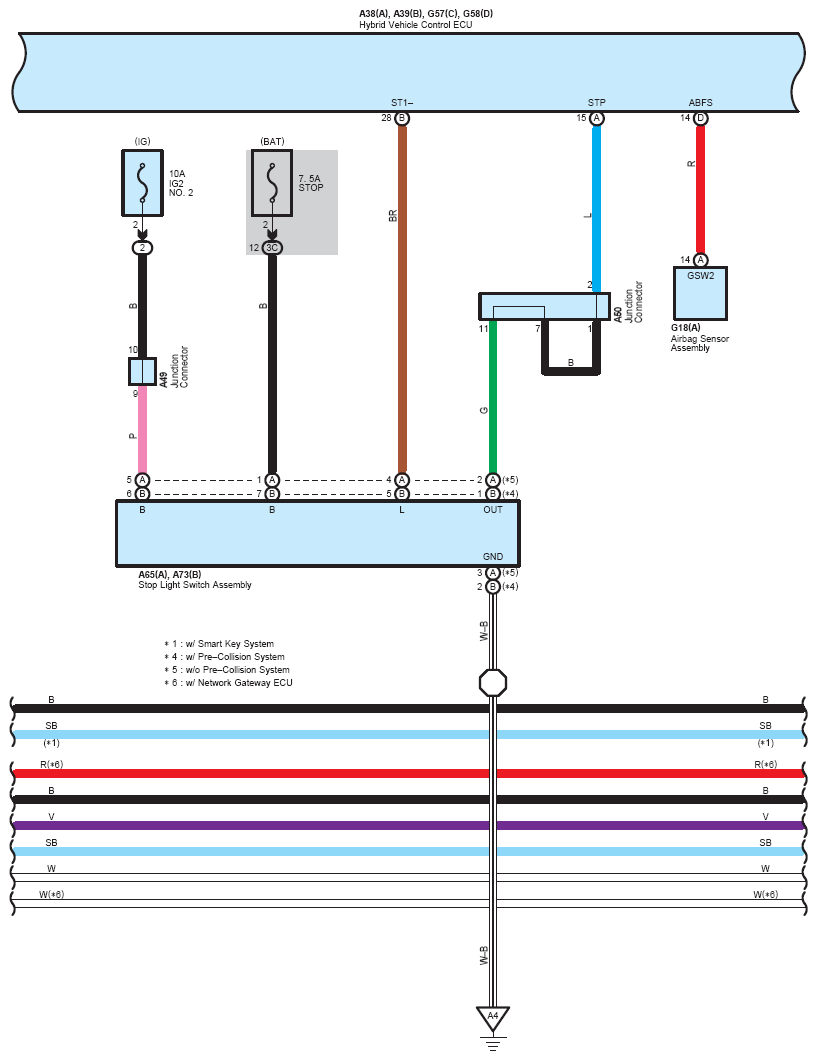

Fig 18: Cruise Control, Engine Control (18 Of 22)

G12211243

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

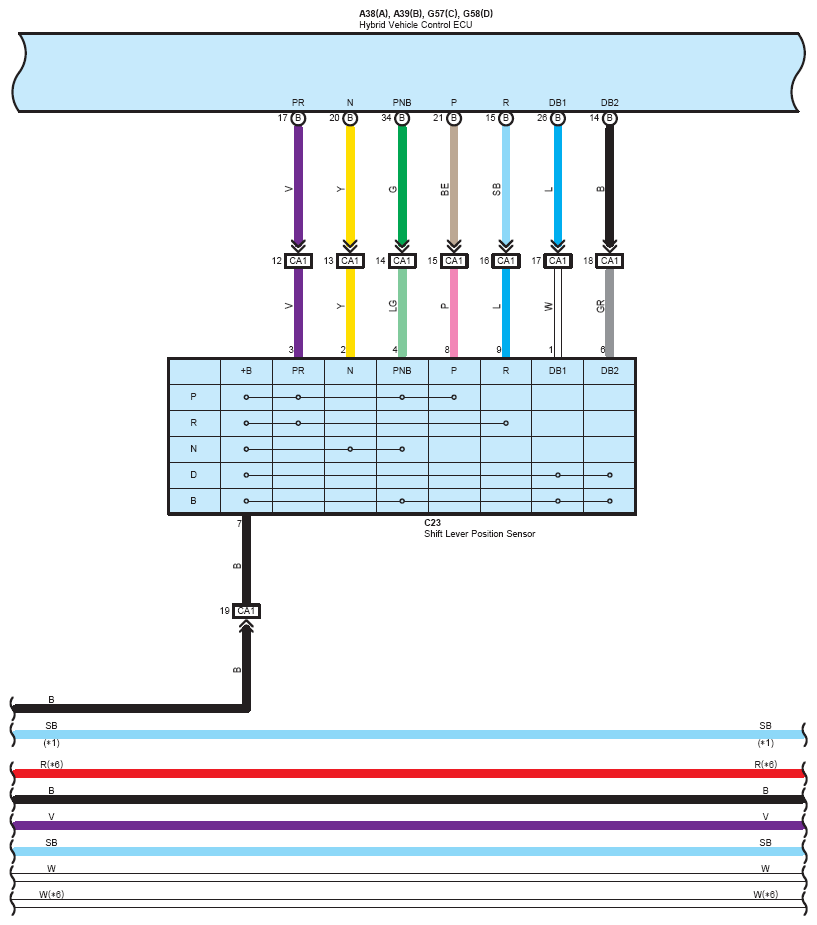

Fig 19: Cruise Control, Engine Control (19 Of 22)

G12211244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

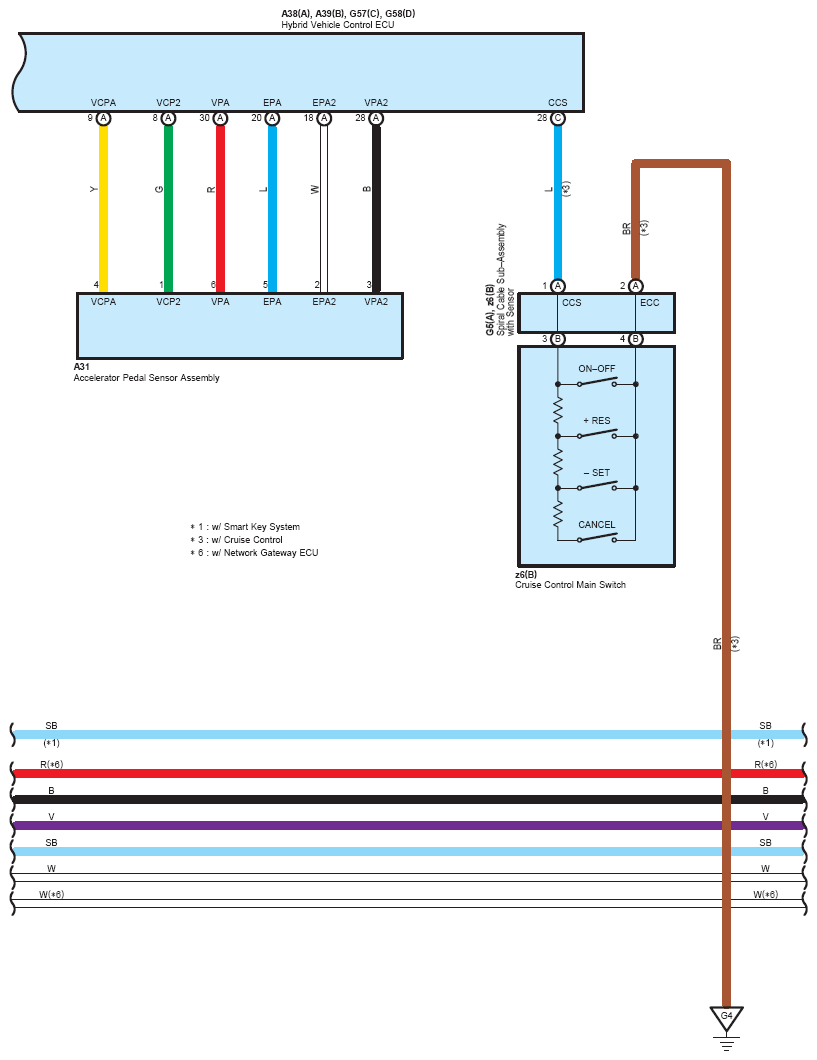

Fig 20: Cruise Control, Engine Control (20 Of 22)

G12211245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

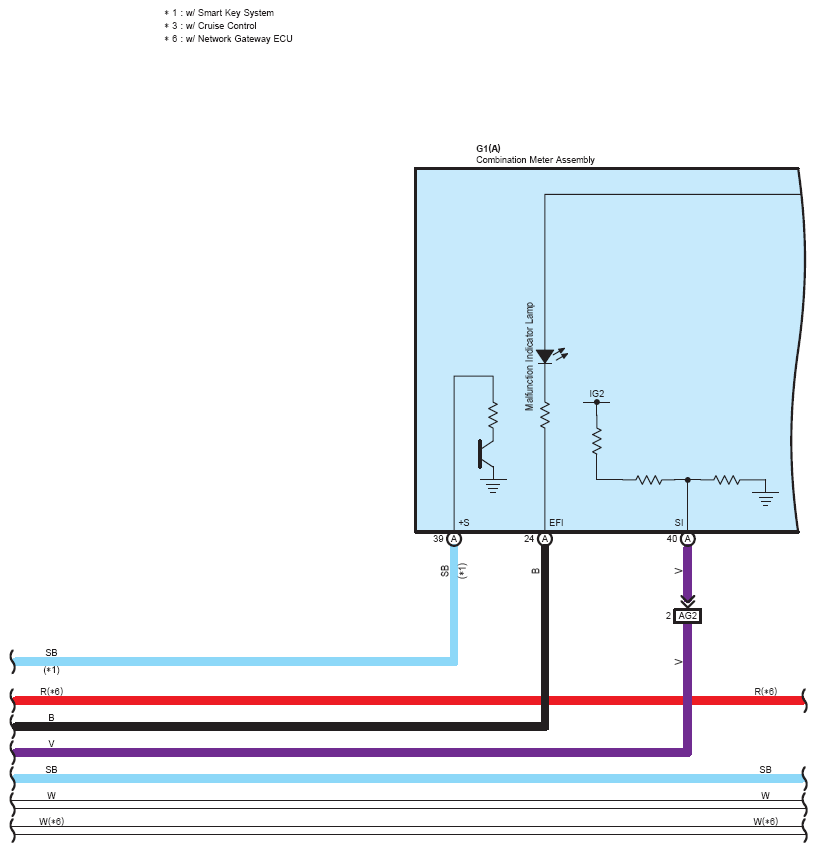

Fig 21: Cruise Control, Engine Control (21 Of 22)

G12211246

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

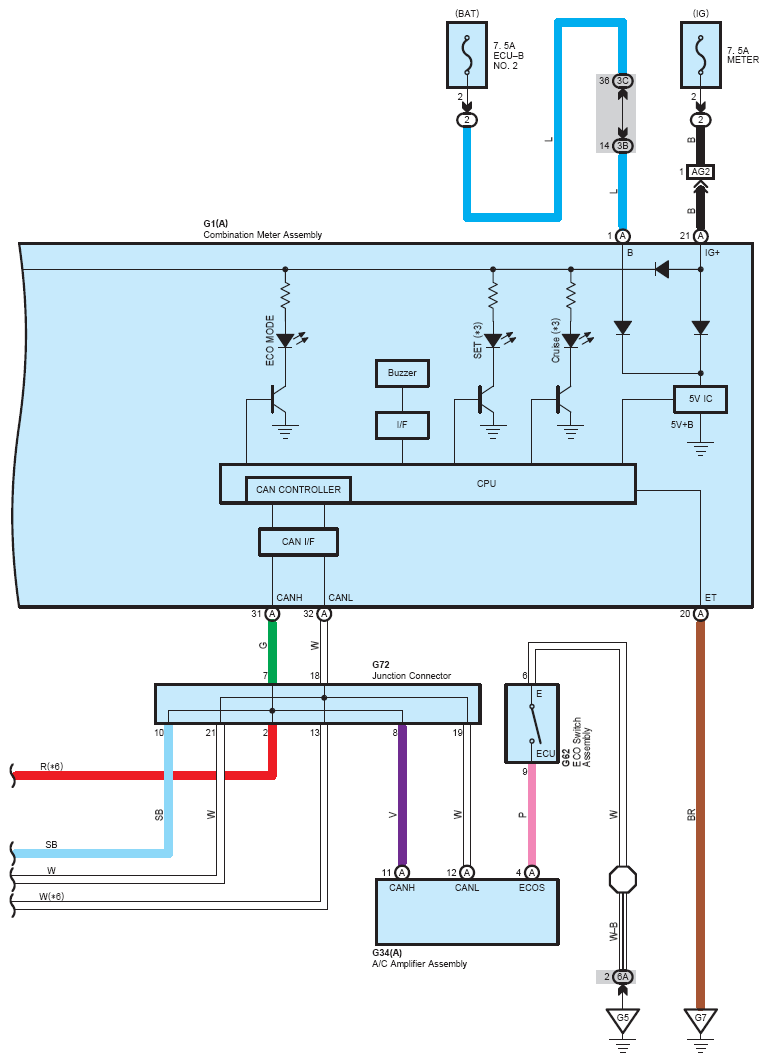

Fig 22: Cruise Control, Engine Control (22 Of 22)

G12211247

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
