Inspection [11/2015 - ]: Procedure

  1. INSPECT AIR FUEL RATIO SENSOR
    1. Measure the resistance according to the value(s) in the table below.

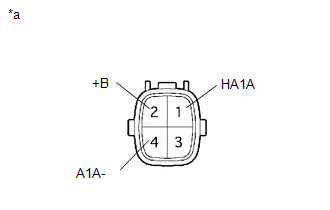

      GTY367383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Air Fuel Ratio Sensor)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 (HA1A) - 2 (+B) 20°C (68°F) 1.6 to 3.2 Ω
      1 (HA1A) - 4 (A1A-) - 10 kΩ or higher

      If the result is not as specified, replace the air fuel ratio sensor.
