Removal [11/2015 - ]: Procedure

  1. REMOVE CAM POSITION SENSOR

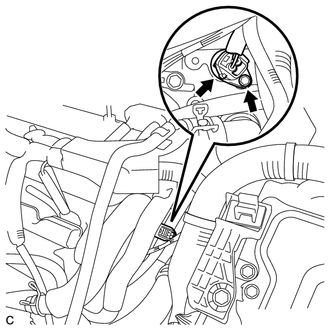

    1. Disconnect the cam position sensor connector.
      GTY325059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the bolt and cam position sensor.
