System Diagram [09/2016 - ]

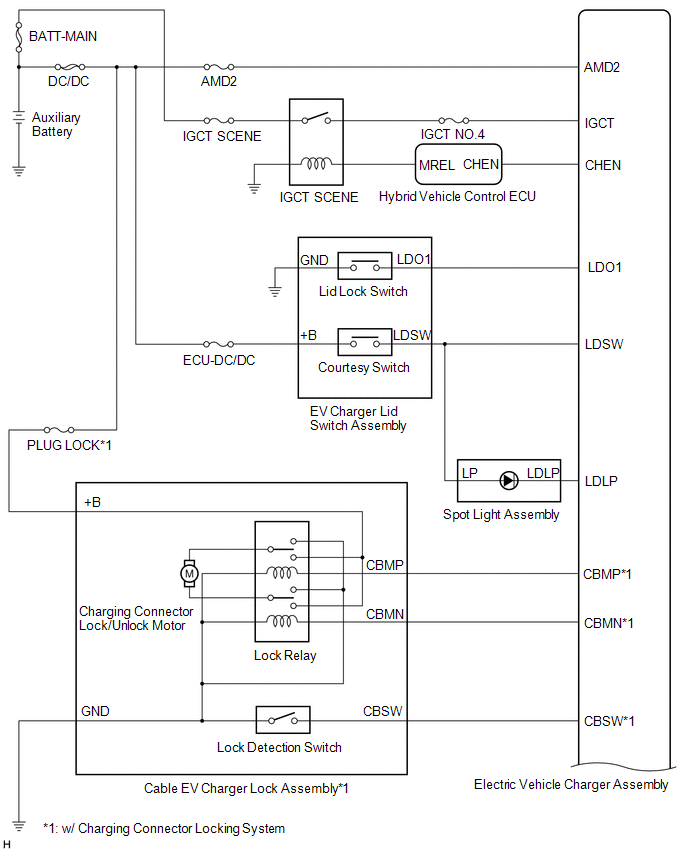

GTY733120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

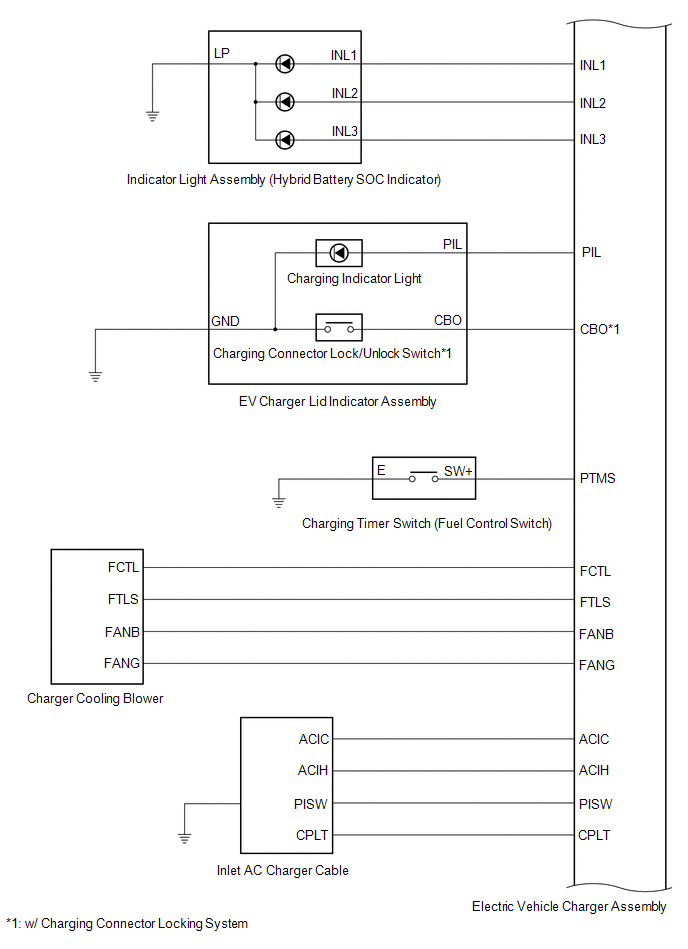

GTY696902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

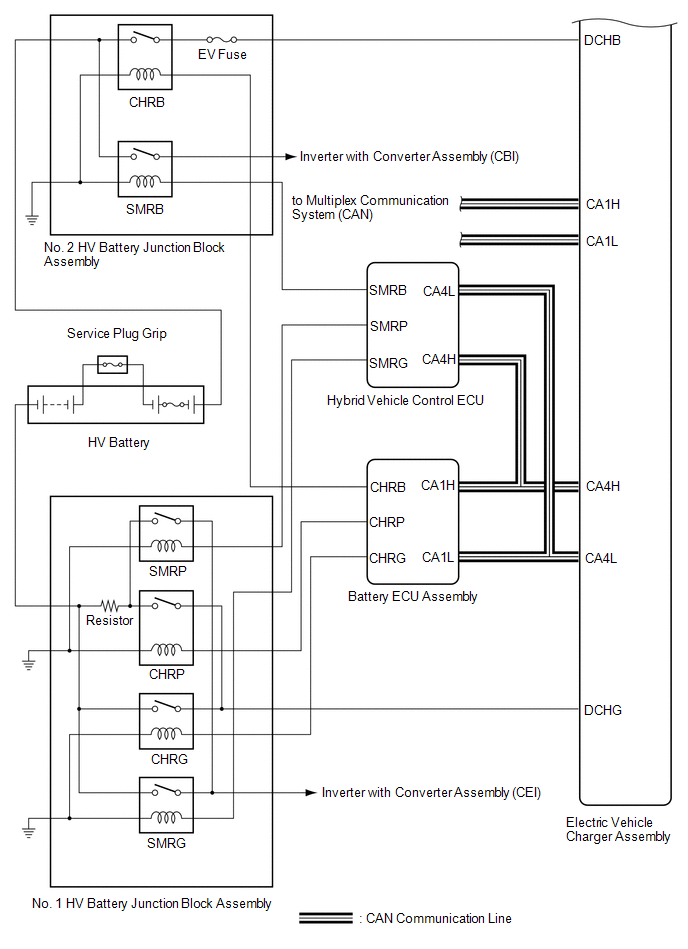

GTY693456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
