Removal [11/2015 - 12/2018]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Refer to PRECAUTION [11/2015 - 11/2017] , or refer to PRECAUTION [11/2017 - 12/2018]

  2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [11/2015 - 11/2017] , or refer to INITIALIZATION [11/2017 - 12/2018]

  3. REMOVE NO. 1 RELAY BLOCK COVER

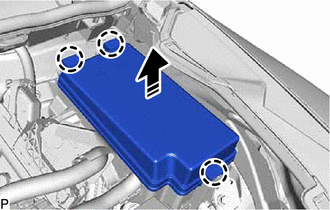

    1. Disengage the 3 claws to remove the No. 1 relay block cover as shown in the illustration.
      GTY561267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  4. REMOVE NO. 1 INTEGRATION RELAY

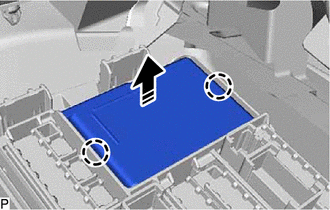

    1. Disengage the 2 claws.
      GTY572067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Pull up the No. 1 integration relay as shown in the illustration.
      NOTE:

      When pulling the No. 1 integration relay, take care not to damage it.

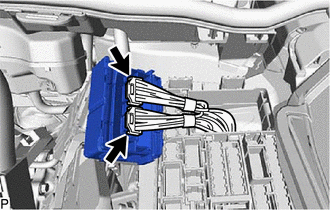

    3. Disconnect the 2 connectors and remove the No. 1 integration relay.
      NOTE:

      When pulling the No. 1 integration relay, take care not to damage it.

      GTY563329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
