Removal [11/2015 - ]: Procedure

  1. REMOVE CRANK POSITION SENSOR

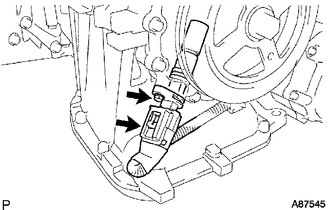

    1. Disconnect the crank position sensor connector.
      GTY326765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the bolt and crank position sensor.
