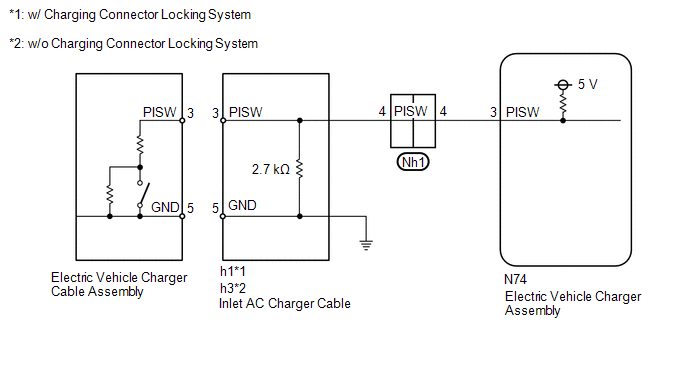

DTC P0D56-11: Charging Connector Proximity Detection Circuit Short to Ground [09/2016 - ]: Wiring Diagram

GTY869282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
