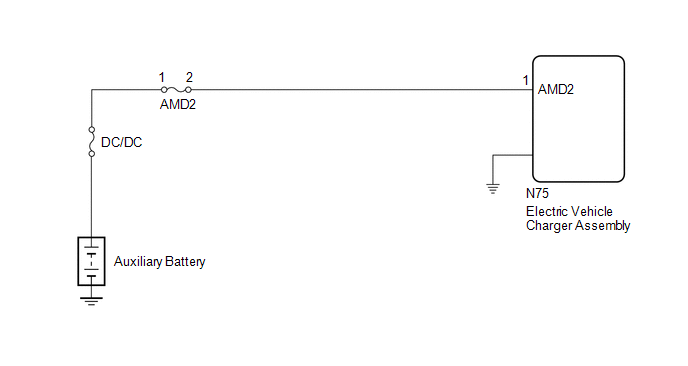

DTC P1CCD-96: Sub DC/DC Converter (for Charging) Component Internal Failure [09/2016 - ]: Wiring Diagram

GTY718391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
