Inspection [08/2016 - ]: Procedure

  1. INSPECT DUTY VACUUM SWITCHING VALVE (OPERATION)

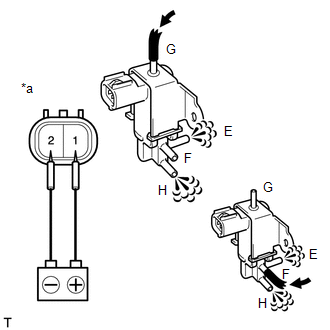

    1. Check the operation of the duty vacuum switching valve when positive battery voltage is applied to its terminals.
      GTY739719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Duty Vacuum Switching Valve)

      OK

      Tester Connection Condition Specified Condition
      1 - 2 Battery voltage is not applied The air from pipe G is flowing out through pipes E and H.
      Battery voltage is applied The air from pipe F is flowing out through pipes E and H.
  2. INSPECT DUTY VACUUM SWITCHING VALVE (RESISTANCE)
    1. Measure the resistance according to the value(s) in the table below.

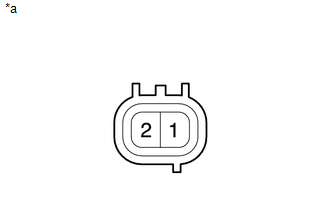

      GTY729703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Duty Vacuum Switching Valve)

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 19 to 21 Ω

      If the resistance is not as specified, replace the duty vacuum switching valve.
