Mute Signal Circuit between Navigation Receiver and Telematics Transceiver [11/2017 - ]: Procedure

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

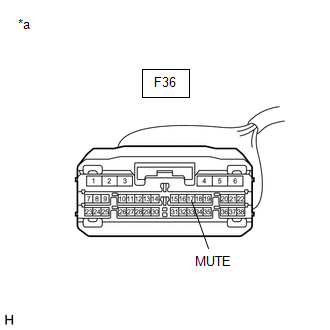

   *a	Component with harness connected (DCM (Telematics Transceiver))

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F36-17 (MUTE) - Body ground	Power switch on (ACC) Audio system playing → Emergency call mode	3.0 V to 5.0 V → Below 1 V

   Result

   Proceed to
   OK
   NG

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2017 - 08/2019]  , or refer to  PROBLEM SYMPTOMS TABLE [08/2019 - ]

Result:

NG

See step  2

1. Disconnect the F93 navigation receiver assembly connector.
2. Disconnect the F36 DCM (telematics transceiver) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F93-8 (TMUT) - F36-17 (MUTE)	Always	Below 1 Ω
   F93-8 (TMUT) or F36-17 (MUTE) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the F36 DCM (telematics transceiver) connector.
2. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

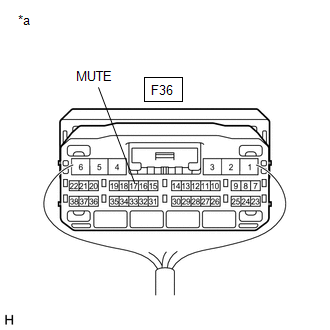

   *a	Front view of wire harness connector (to DCM (Telematics Transceiver))

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F36-17 (MUTE) - Body ground	Power switch on (ACC)	3.0 V to 5.0 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE DCM (TELEMATICS TRANSCEIVER). Refer to  REMOVAL [11/2017 - 12/2018]  , or refer to  REMOVAL [12/2018 - 08/2019]  , or refer to  REMOVAL [08/2019 - 07/2020]  , or refer to  REMOVAL [07/2020 - ]

Result:

NG

REPLACE NAVIGATION RECEIVER ASSEMBLY. Refer to  REMOVAL [11/2015 - 08/2019]  , or refer to  REMOVAL [08/2019 - ]
