Removal [12/2019 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 3 [10/2022 - ]

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [12/2019 - 10/2022] , or refer to PROCEDURE - Step 5 [10/2022 - ]

  6. REMOVE ECO RUN CANCEL SWITCH ASSEMBLY

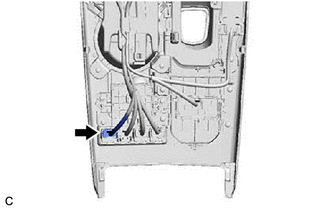

    1. Disconnect the eco run cancel switch assembly connector.
      GTY940411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

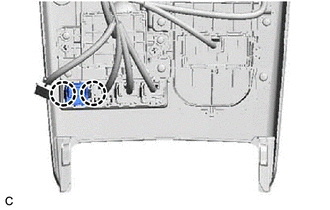

    2. Disengage the 2 claws and remove the eco run cancel switch assembly from the console panel sub-assembly.
      GTY902769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
