Removal [09/2016 - 05/2019]: Procedure

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 14

  2. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 7 Inch Display)

    Refer to PROCEDURE - Step 15

  3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL UPPER (for 11.6 Inch Display)

    Refer to PROCEDURE - Step 16

  4. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY WITH NAVIGATION RECEIVER ASSEMBLY (for 11.6 Inch Display)

    Refer to PROCEDURE - Step 17

  5. REMOVE POWER SWITCH

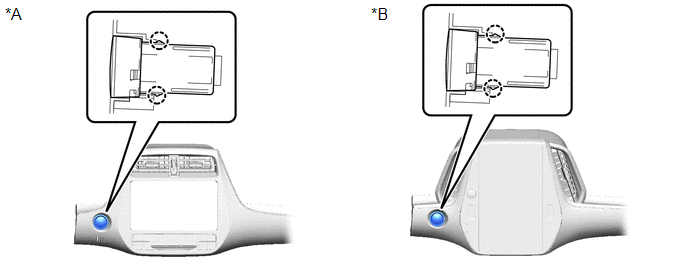

    1. Disengage the 2 claws and remove the power switch.
      GTY734358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 7 Inch Display *B for 11.6 Inch Display
