Components [12/2018 - 07/2020]

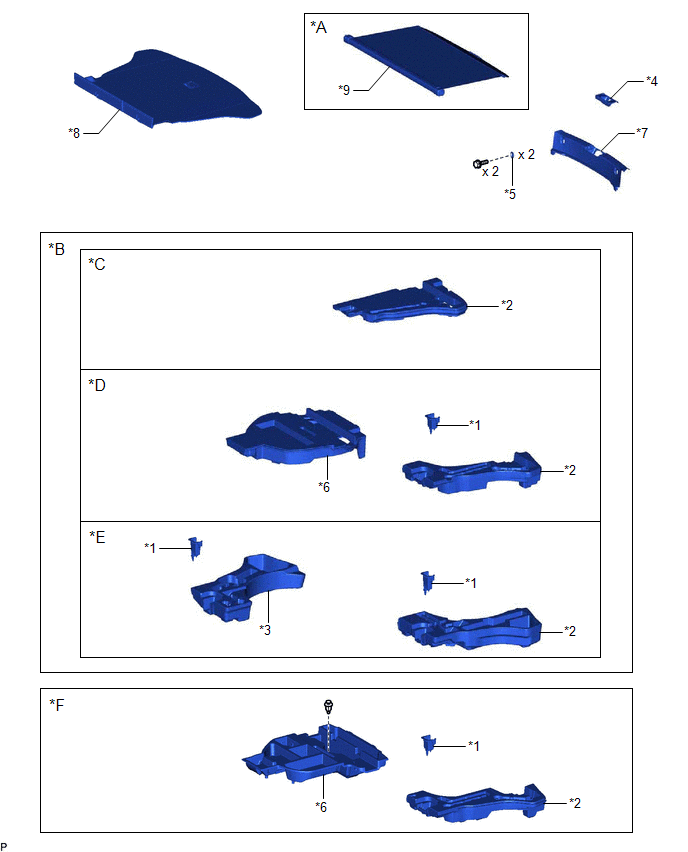

| *A | w/ Tonneau Cover | *B | for 2WD |
| *C | w/o Spare Tire | *D | w/ Compact Spare Tire |
| *E | w/ Full Size Spare Tire | *F | for AWD |
| *1 | DECK BOARD RETAINER | *2 | DECK FLOOR BOX LH |
| *3 | DECK FLOOR BOX RH | *4 | DECK TRIM SERVICE HOLE COVER |
| *5 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *6 | REAR DECK FLOOR BOX |
| *7 | REAR DECK TRIM COVER | *8 | REAR NO. 1 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |

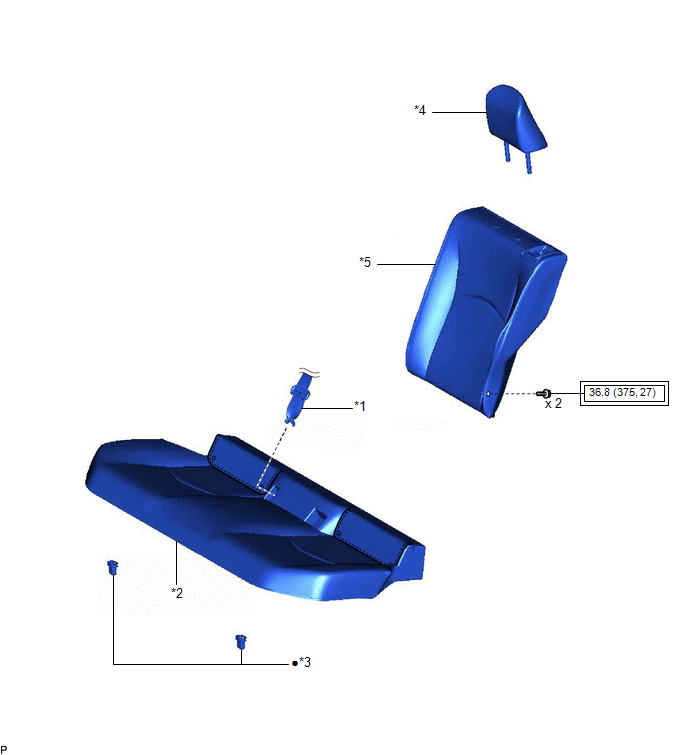

| Callout | Description | Callout | Description |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT CUSHION ASSEMBLY |
| *3 | REAR SEAT CUSHION LOCK HOOK | *4 | REAR SEAT HEADREST ASSEMBLY |
| *5 | REAR SEATBACK ASSEMBLY LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | • | Non-reusable part |

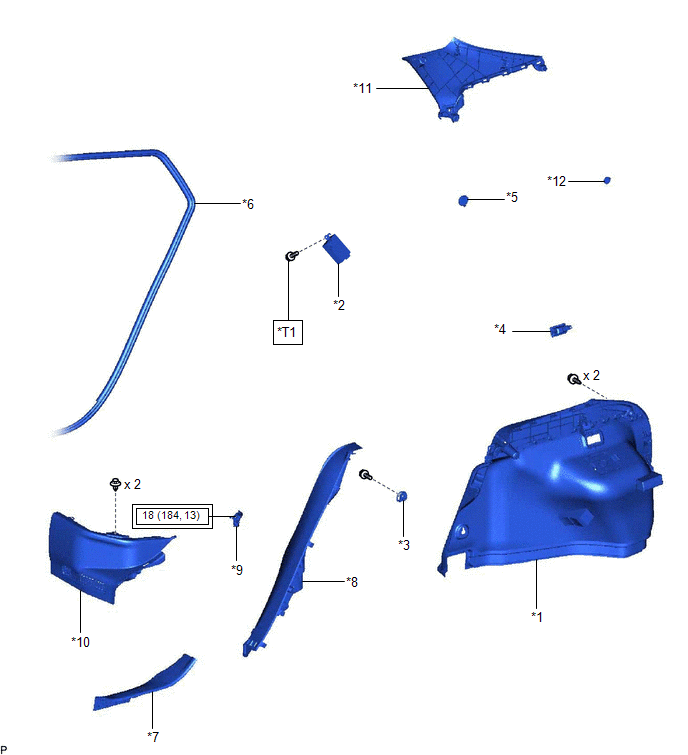

| Callout | Description | Callout | Description |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY LH | *2 | ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER |
| *3 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | *4 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY |
| *5 | NO. 1 TONNEAU COVER HOLDER CAP | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP LH |
| *7 | REAR DOOR SCUFF PLATE LH | *8 | REAR SEAT SIDE GARNISH LH |
| *9 | REAR SEATBACK HINGE SUB-ASSEMBLY LH | *10 | REAR UNDER SIDE COVER LH |
| *11 | ROOF SIDE INNER GARNISH ASSEMBLY LH | *12 | TONNEAU COVER HOOK A |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf.cm, ft./lbf) | N.m (kgf.cm, ft./lbf): Specified torque | ||
| *T1 | for Type A: 8.3 (85, 73 in./lbf) for Type B: 10 (102, 7) |
- | - |
