Components [04/2018 -]
WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

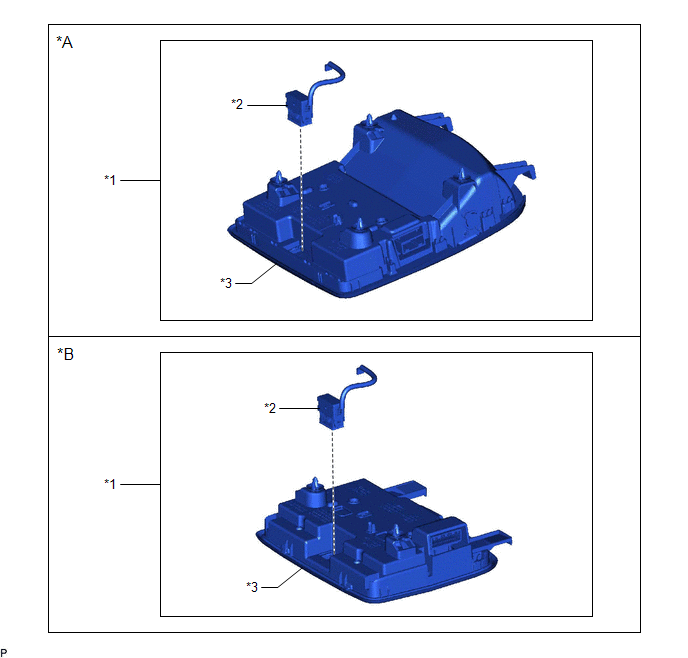

| *A |
for Normal Roof |
*B |
for Moon Roof |
| *1 |
ROOF CONSOLE BOX ASSEMBLY |
*2 |
TELEPHONE MICROPHONE ASSEMBLY |
| *3 |
ROOF CONSOLE BOX SUB-ASSEMBLY |
- |
- |
